RPS 25HP 480V 90RPS250, Up to 800FT Head, 79 to 119GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

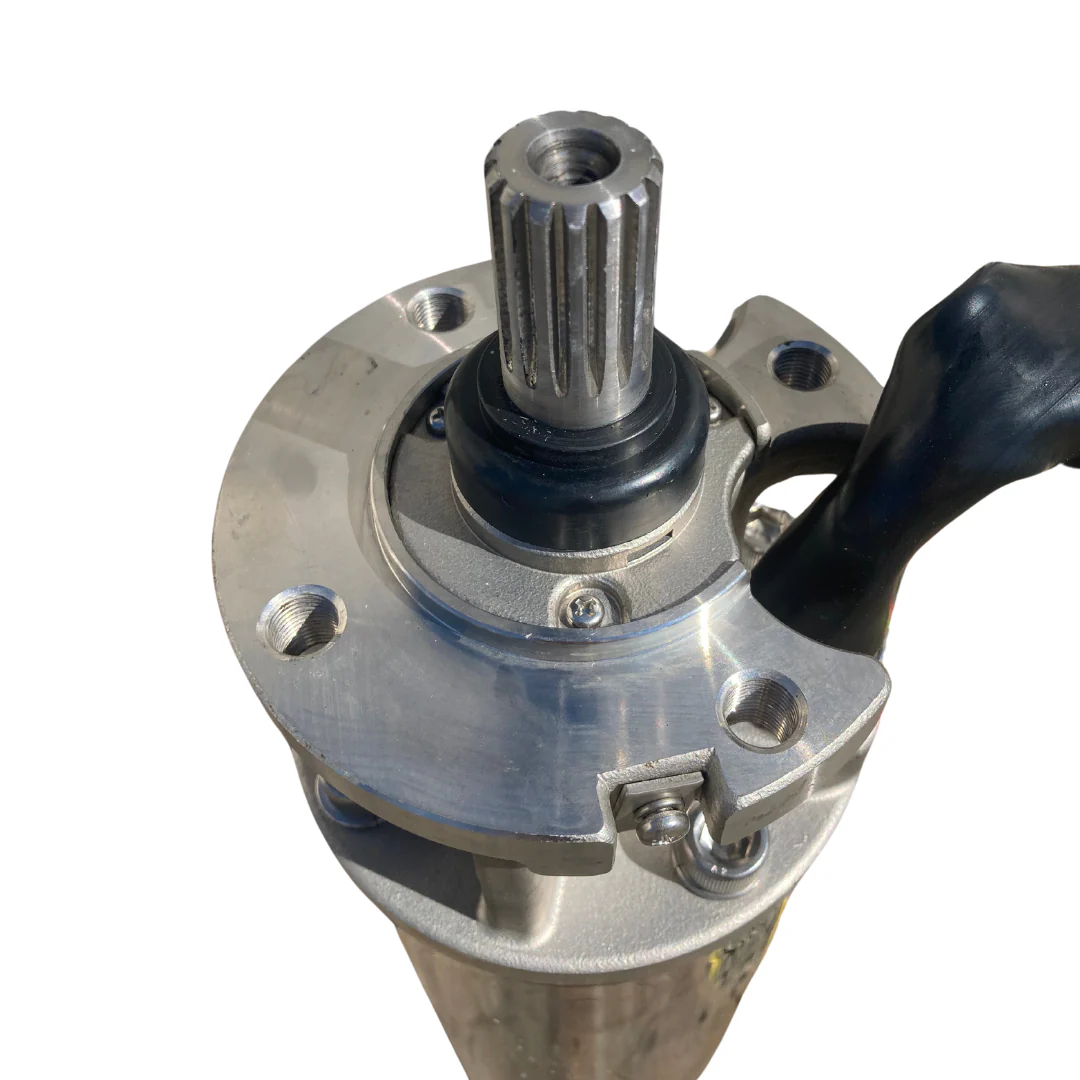

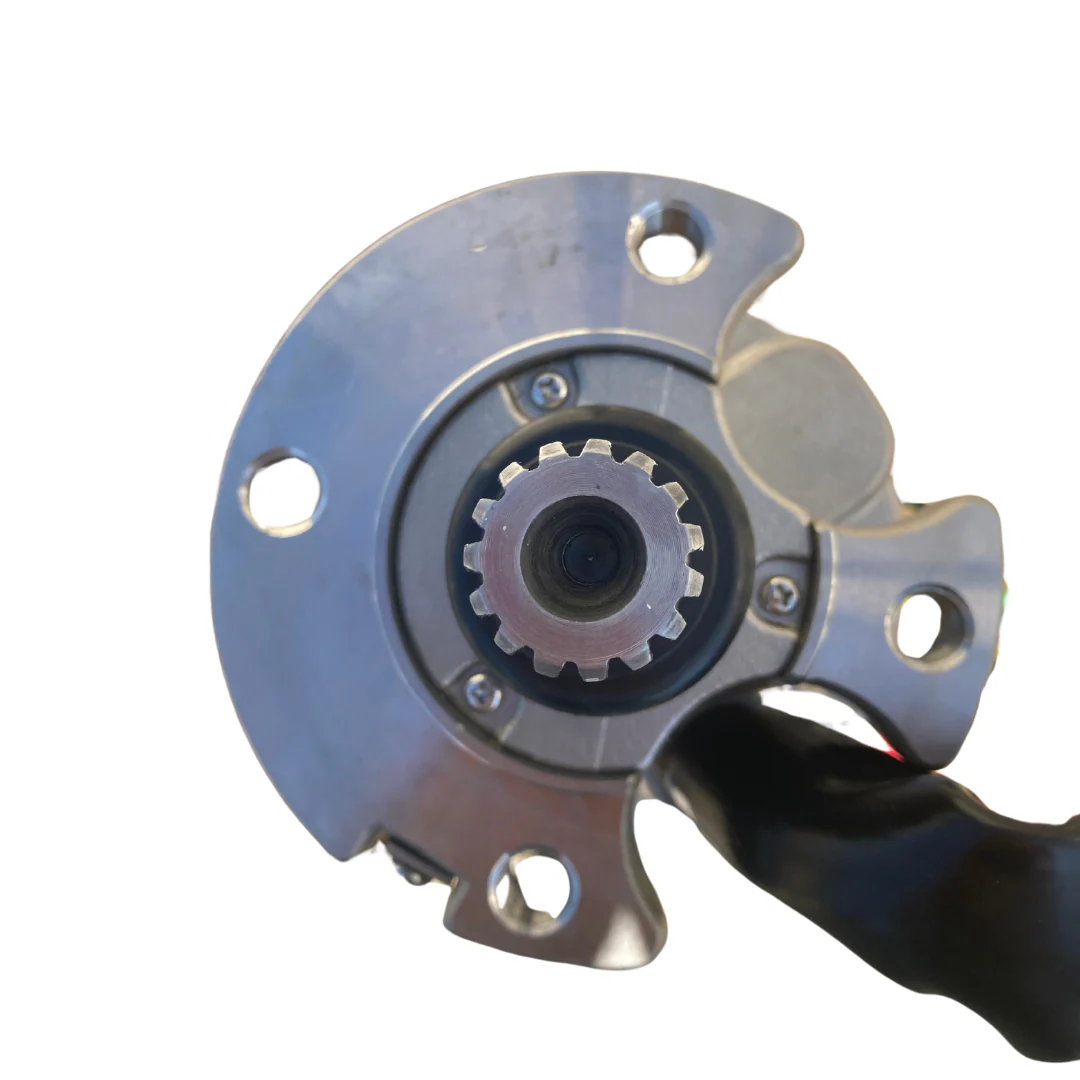

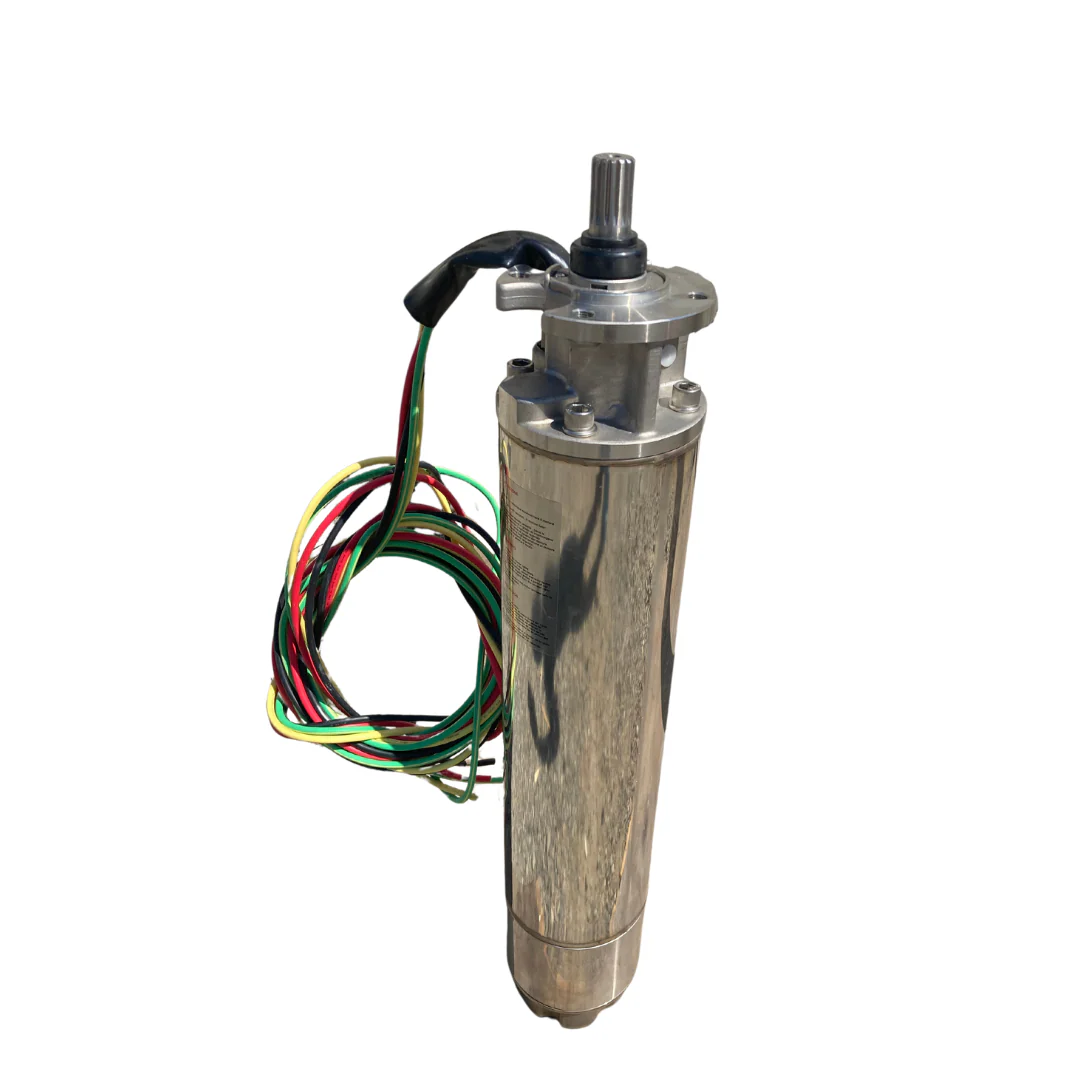

• 25HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End

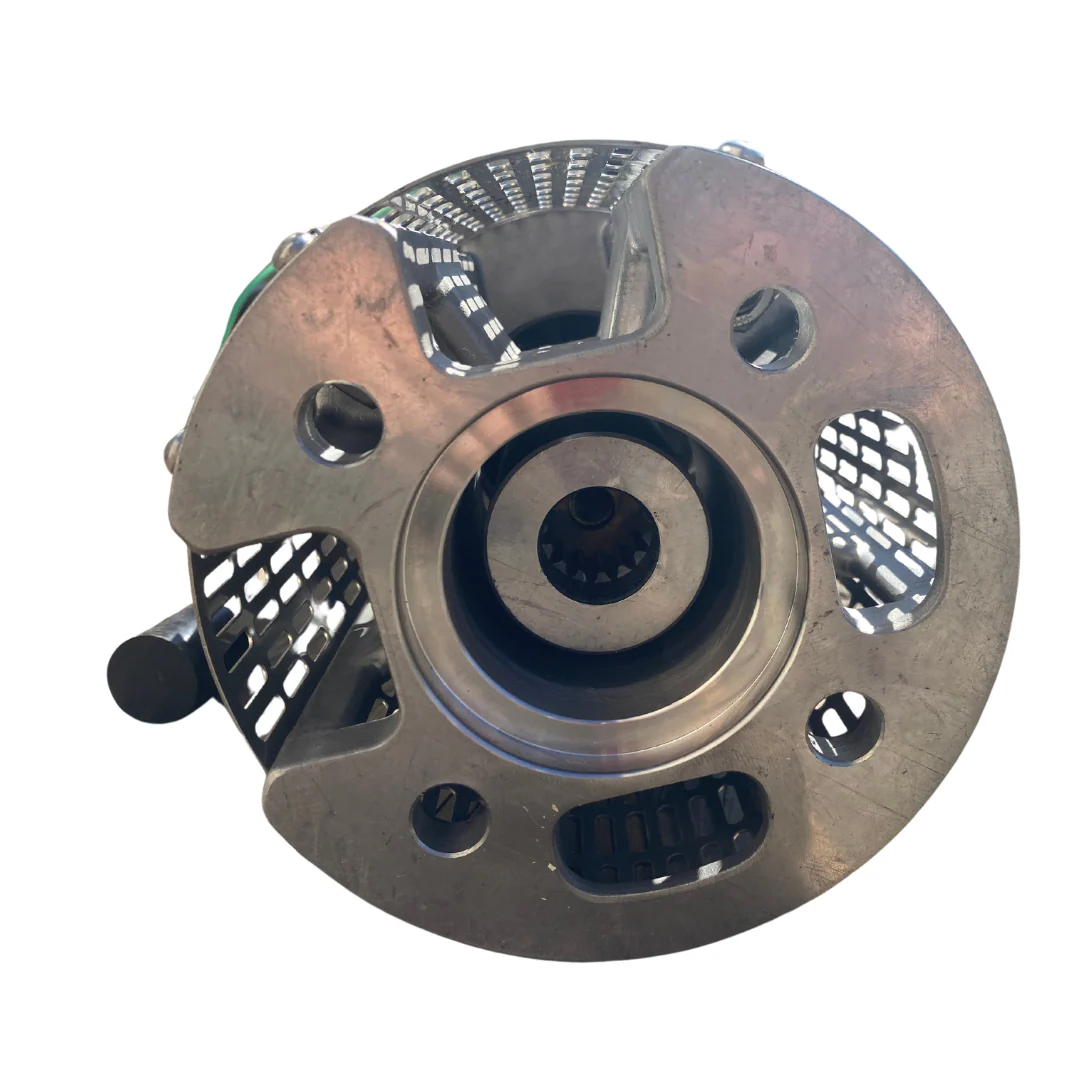

• 3" outlet 90RPS250 79-119GPM Pump End, 6" Outside Diameter

• 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
• Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head	Gallons Per Minute (GPM)
No head	119
25 feet	119
50 feet	119
75 feet	119
100 feet	119
125 feet	119
150 feet	119
175 feet	119
200 feet	119
225 feet	119
250 feet	119
275 feet	119
300 feet	119
325 feet	119
350 feet	119
375 feet	119
400 feet	119
425 feet	119
450 feet	119
475 feet	119
500 feet	119
525 feet	115
550 feet	112
575 feet	109
600 feet	106
625 feet	103
650 feet	100
675 feet	97
700 feet	93
725 feet	89
750 feet	86
775 feet	82
800 feet	79
Above 800 feet	Size Up for Optimal Performance
