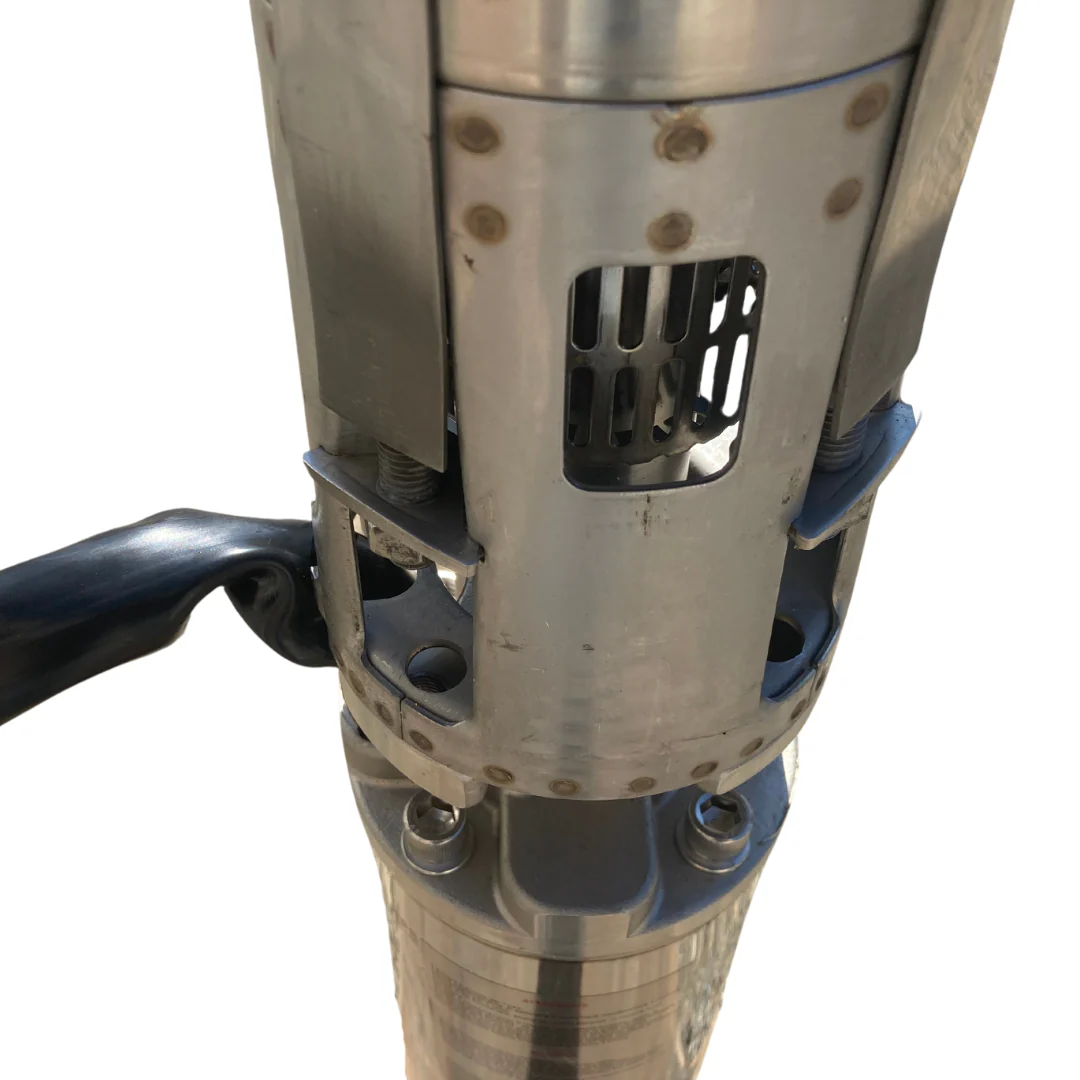

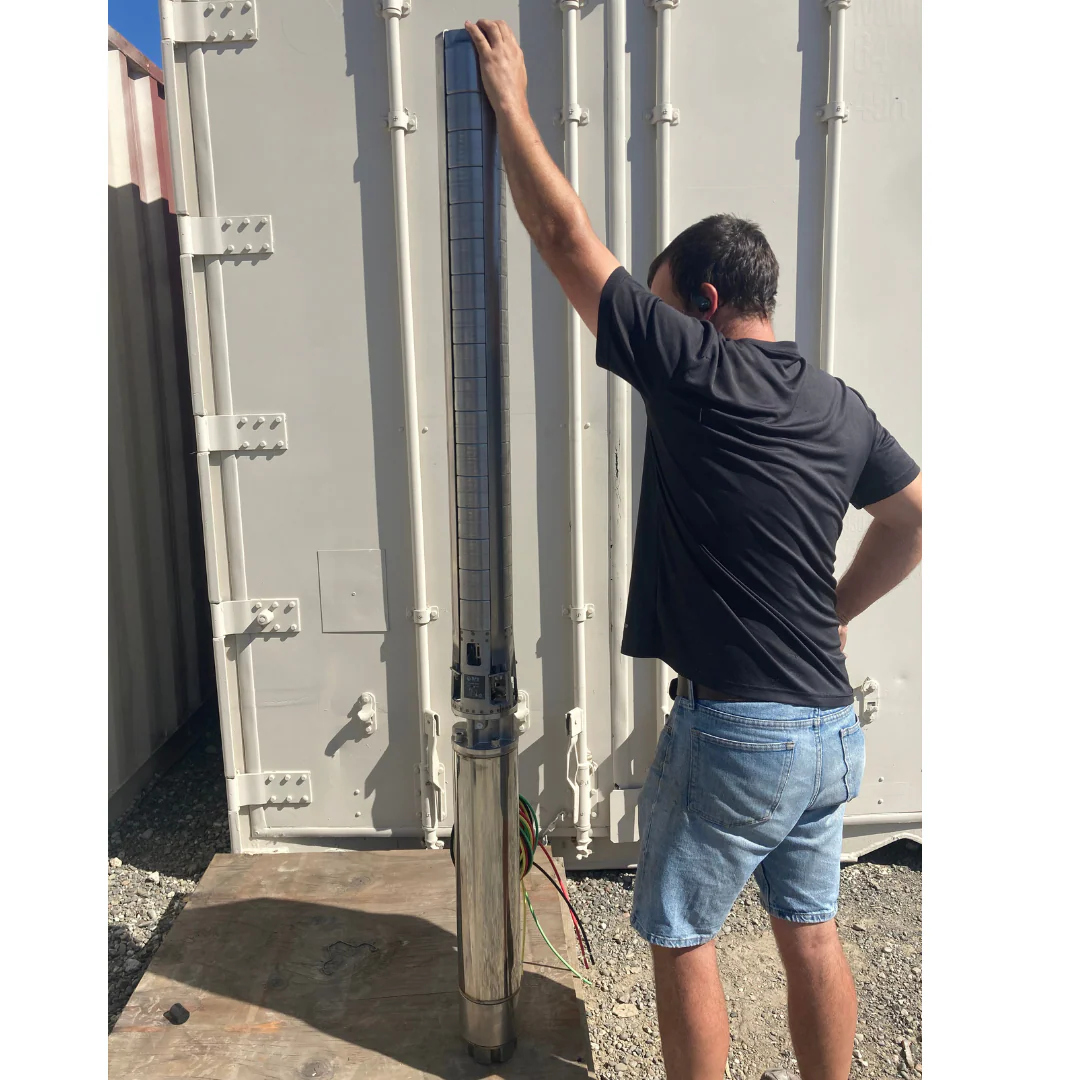

RPS 20HP 480V 150RPS200, Up to 500FT Head, 106 to 211GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

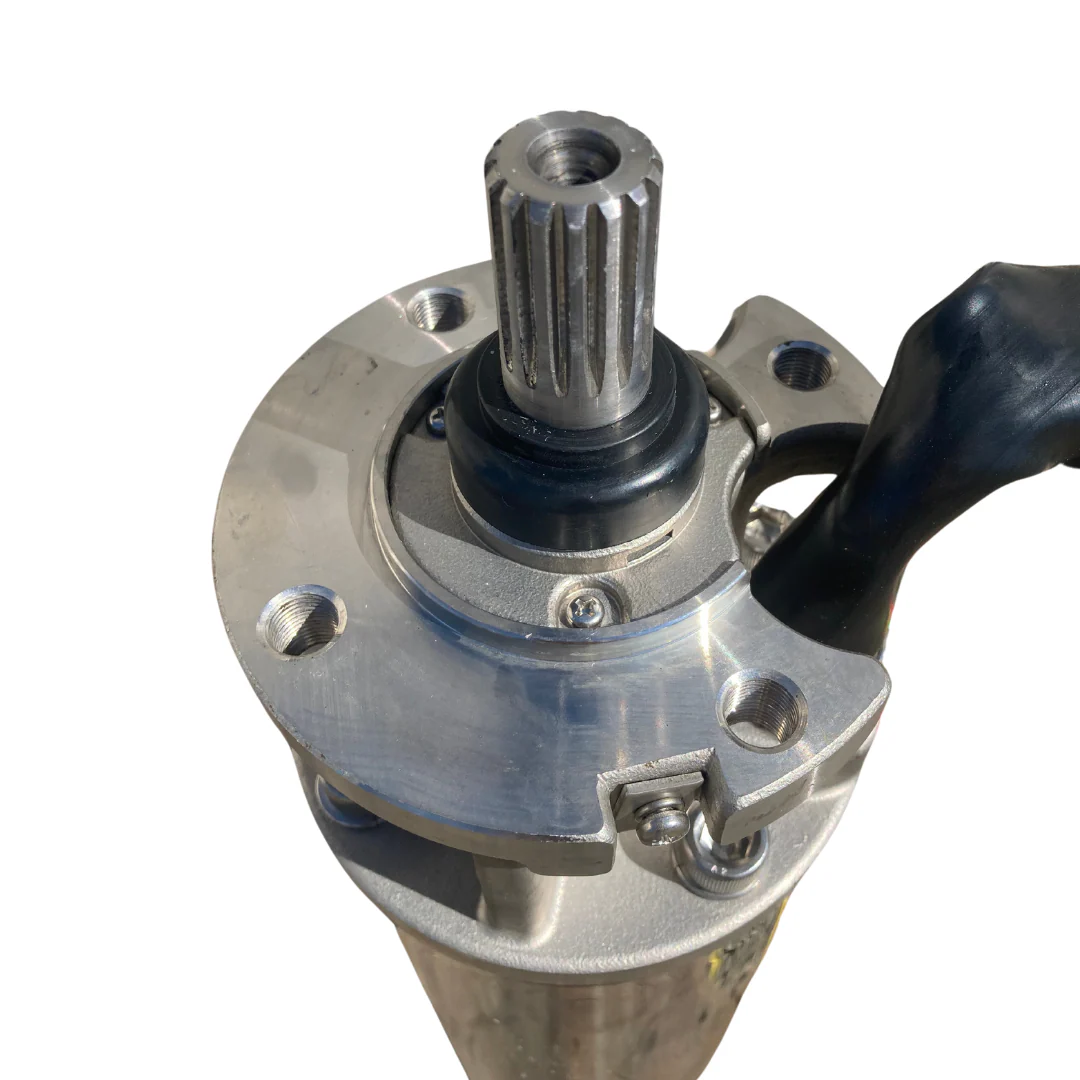

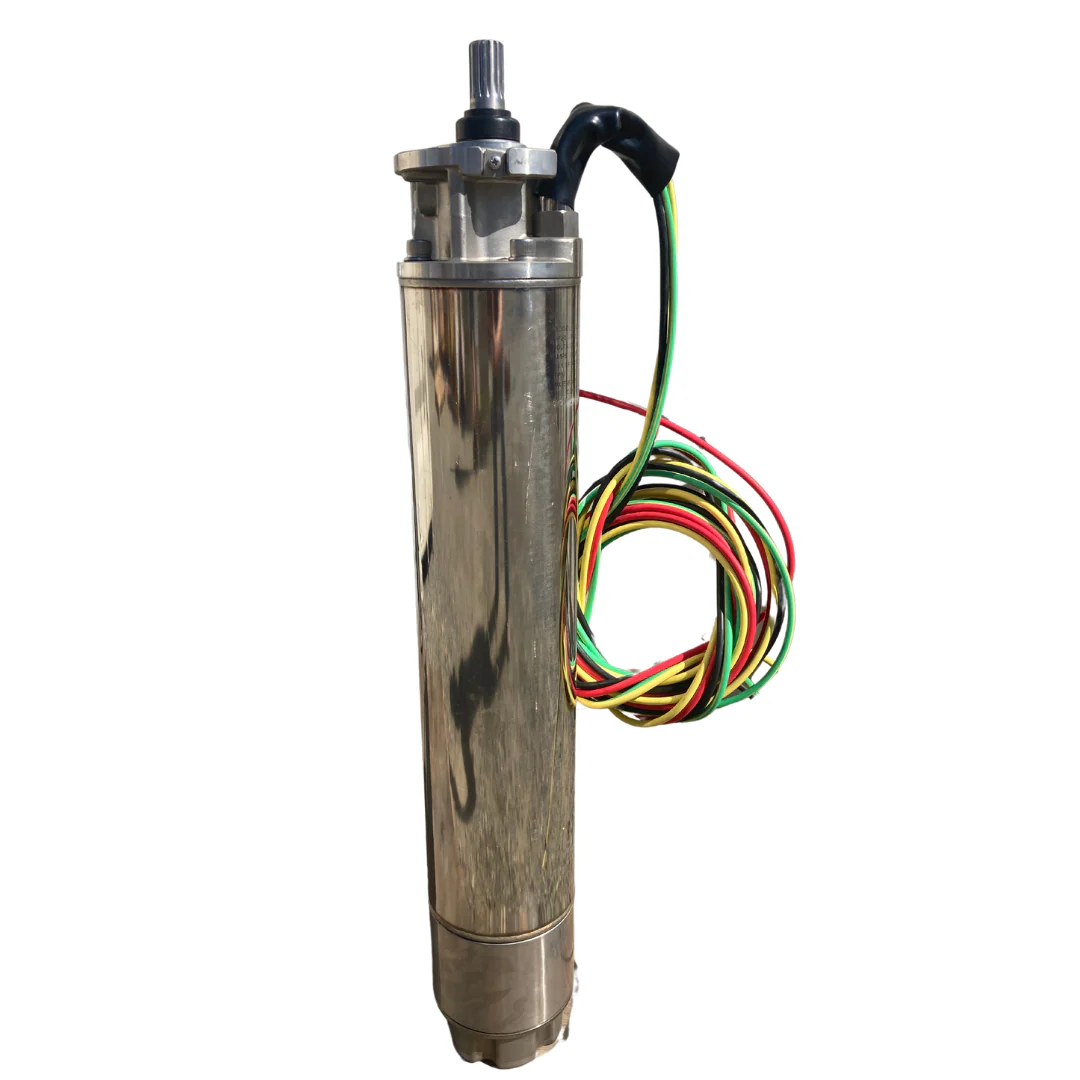

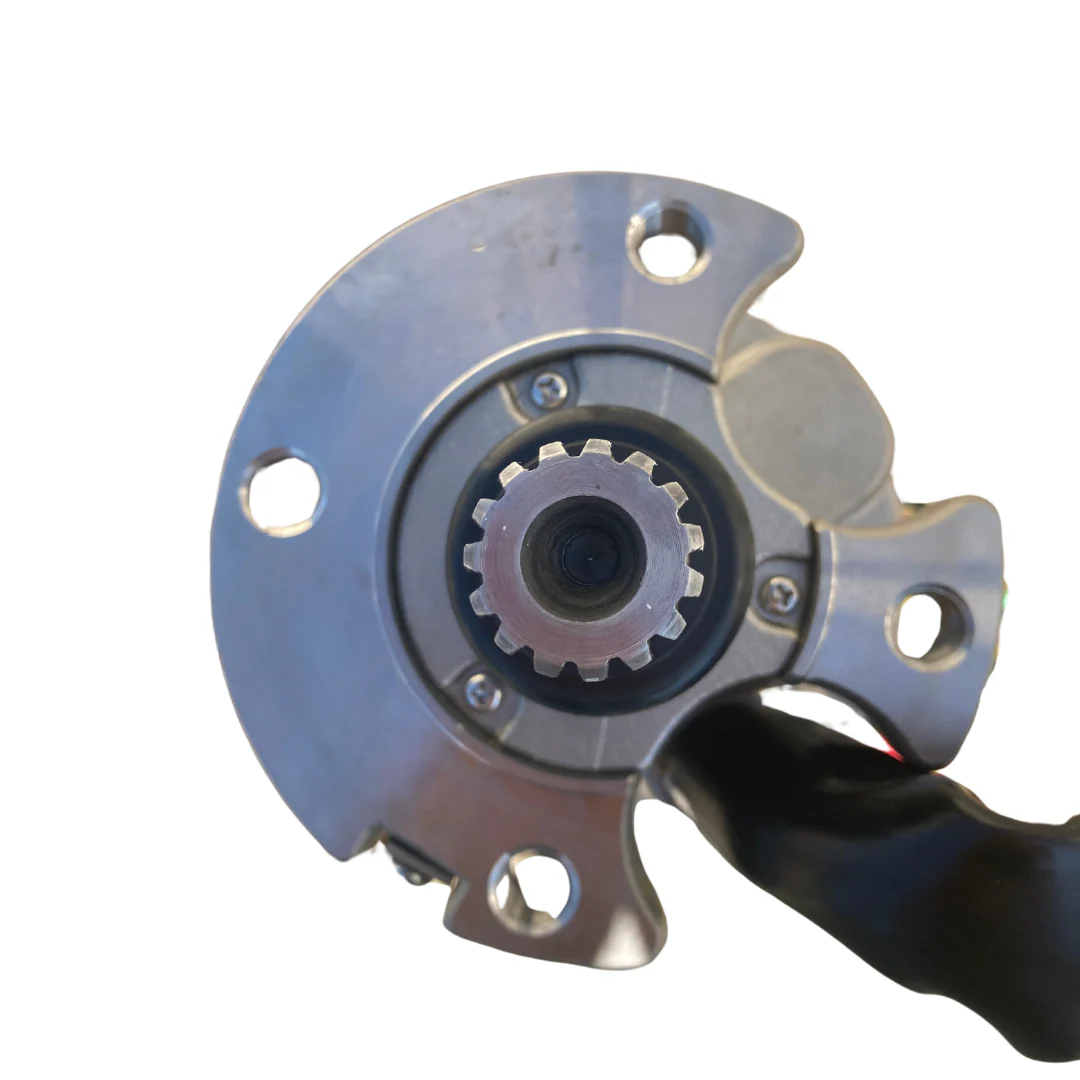

• 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End

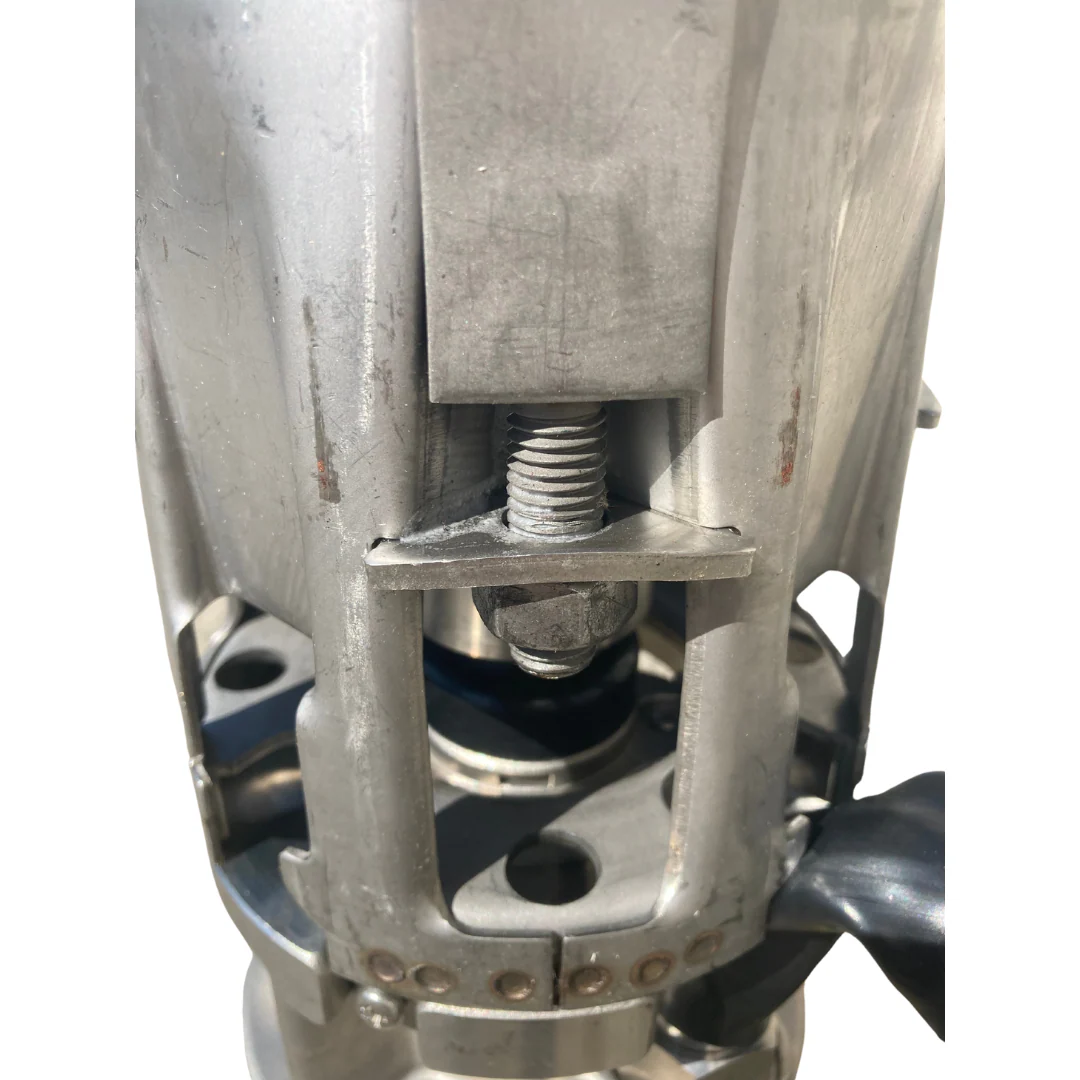

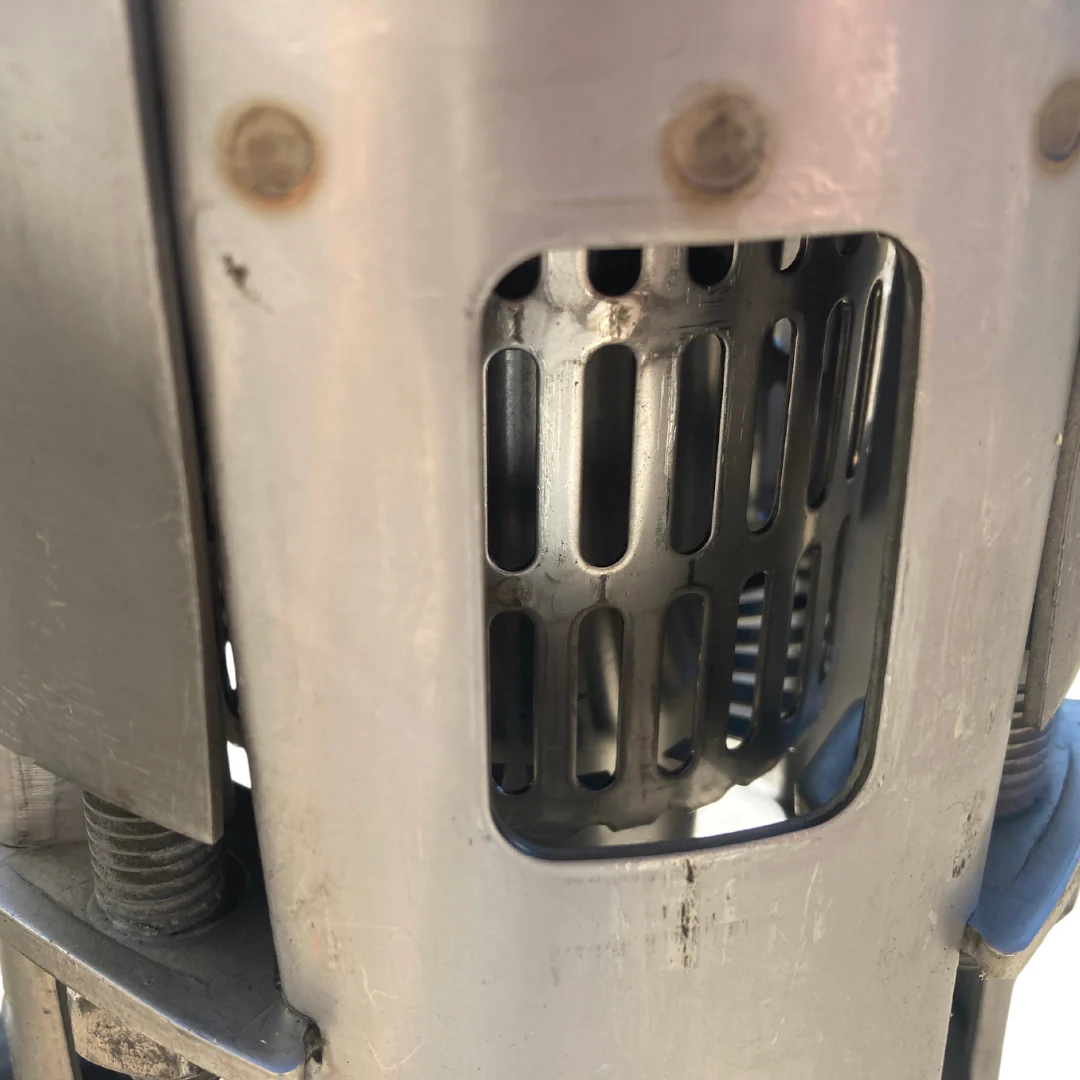

• 3" outlet 150RPS200 106-211GPM Pump End, 6" Outside Diameter

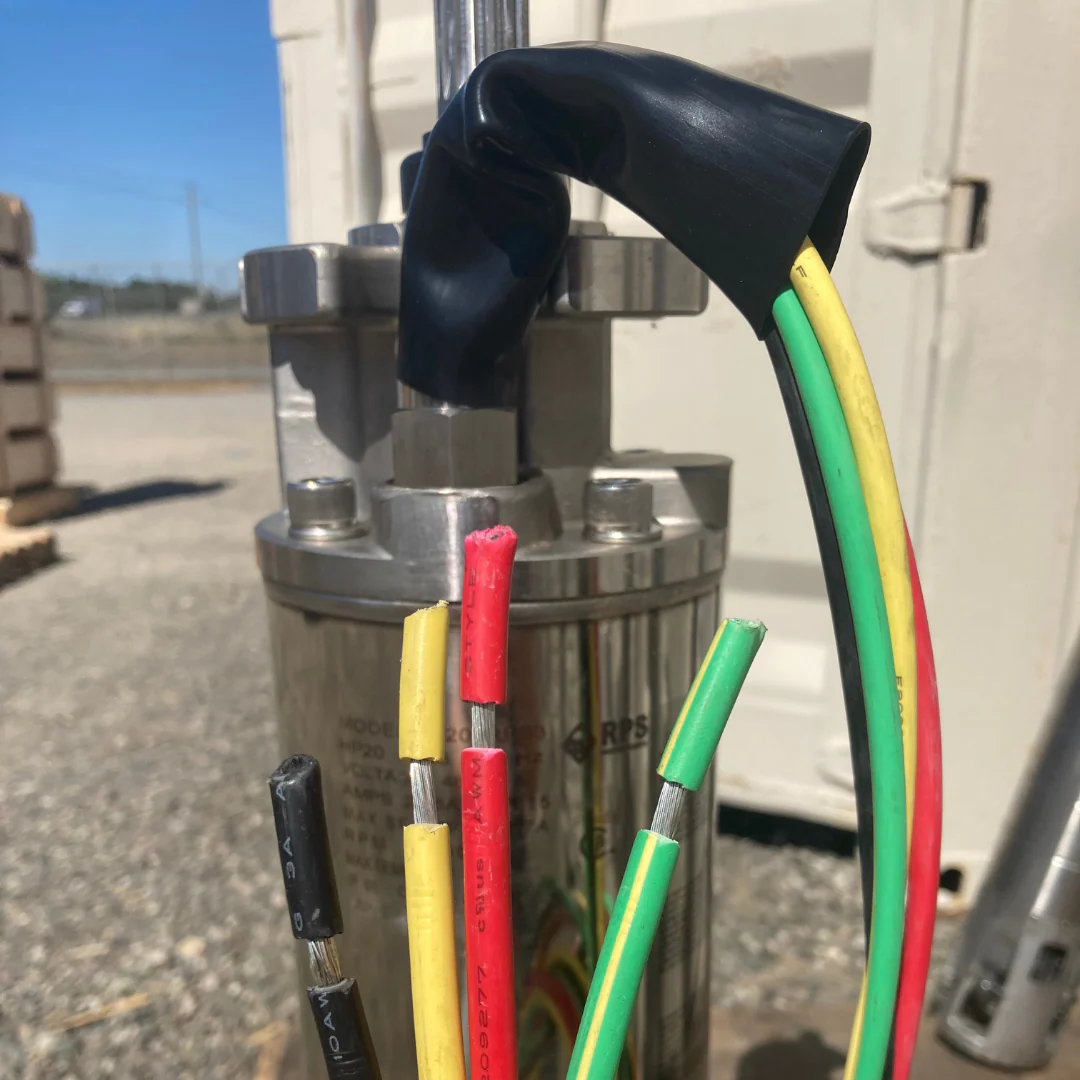

• 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
• Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head	Gallons Per Minute (GPM)
No head	211
25 feet	211
50 feet	211
75 feet	211
100 feet	211
125 feet	211
150 feet	211
175 feet	211
200 feet	211
225 feet	211
250 feet	211
275 feet	211
300 feet	204
325 feet	196
350 feet	189
375 feet	178
400 feet	169
425 feet	157
450 feet	145
475 feet	124
500 feet	106
Above 500 feet	Size Up for Optimal Performance
