RPS 20HP 480V 230RPS200, Up to 325FT Head, 148 to 317GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

• 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
• 3" outlet 230RPS200 148-317GPM Pump End, 6" Outside Diameter

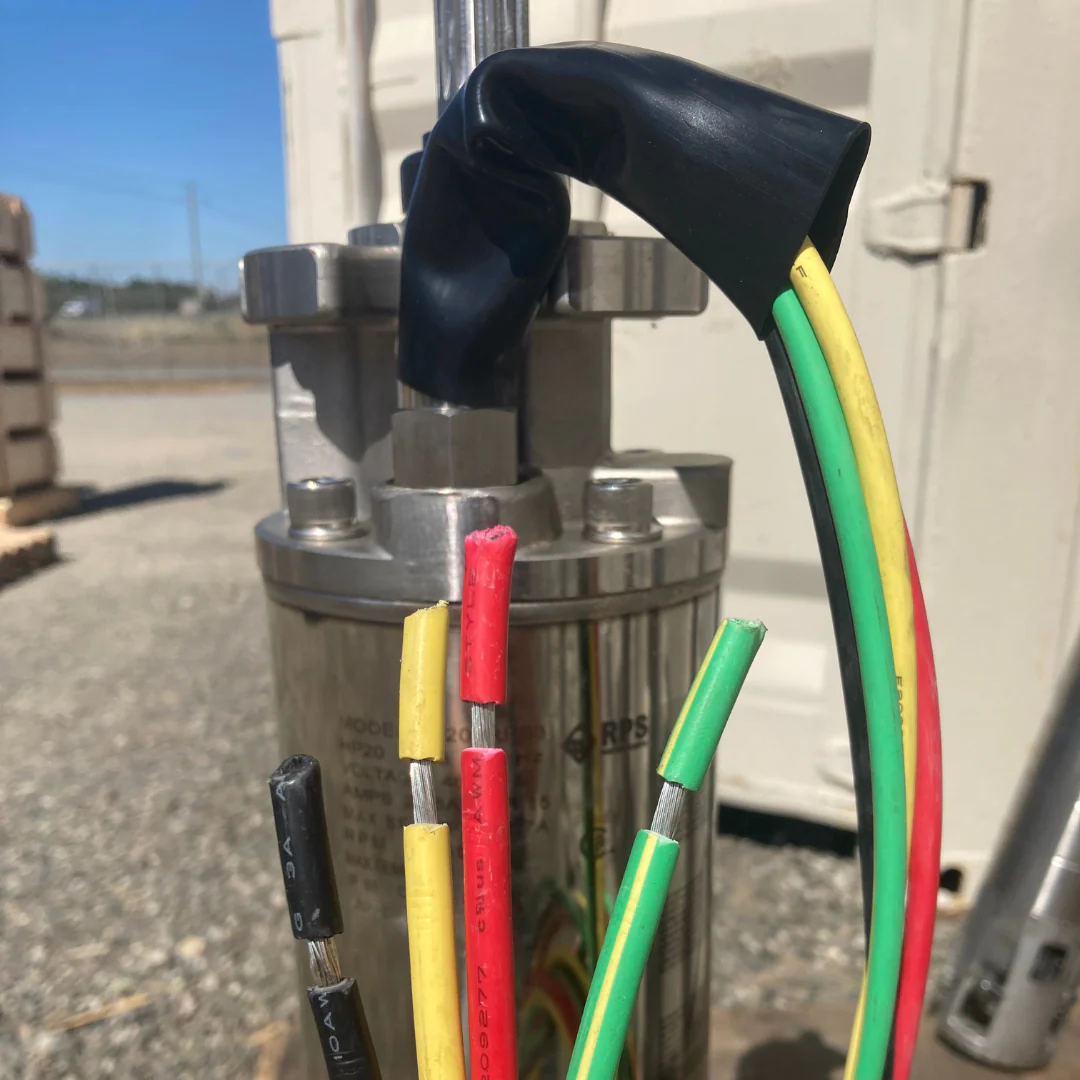

• 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
• Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head	Gallons Per Minute (GPM)
No head	317
20 feet	317
30 feet	317
40 feet	317
50 feet	317
60 feet	317
70 feet	317
80 feet	317
90 feet	317
100 feet	317
110 feet	317
120 feet	317
130 feet	317
140 feet	317
150 feet	317
160 feet	317
170 feet	317
180 feet	308
190 feet	301
200 feet	291
210 feet	281
220 feet	267
230 feet	256
240 feet	245
250 feet	238
260 feet	224
270 feet	213
280 feet	205
290 feet	194
300 feet	185
310 feet	160
320 feet	148
Above 320 feet	Size Up for Optimal Performance
