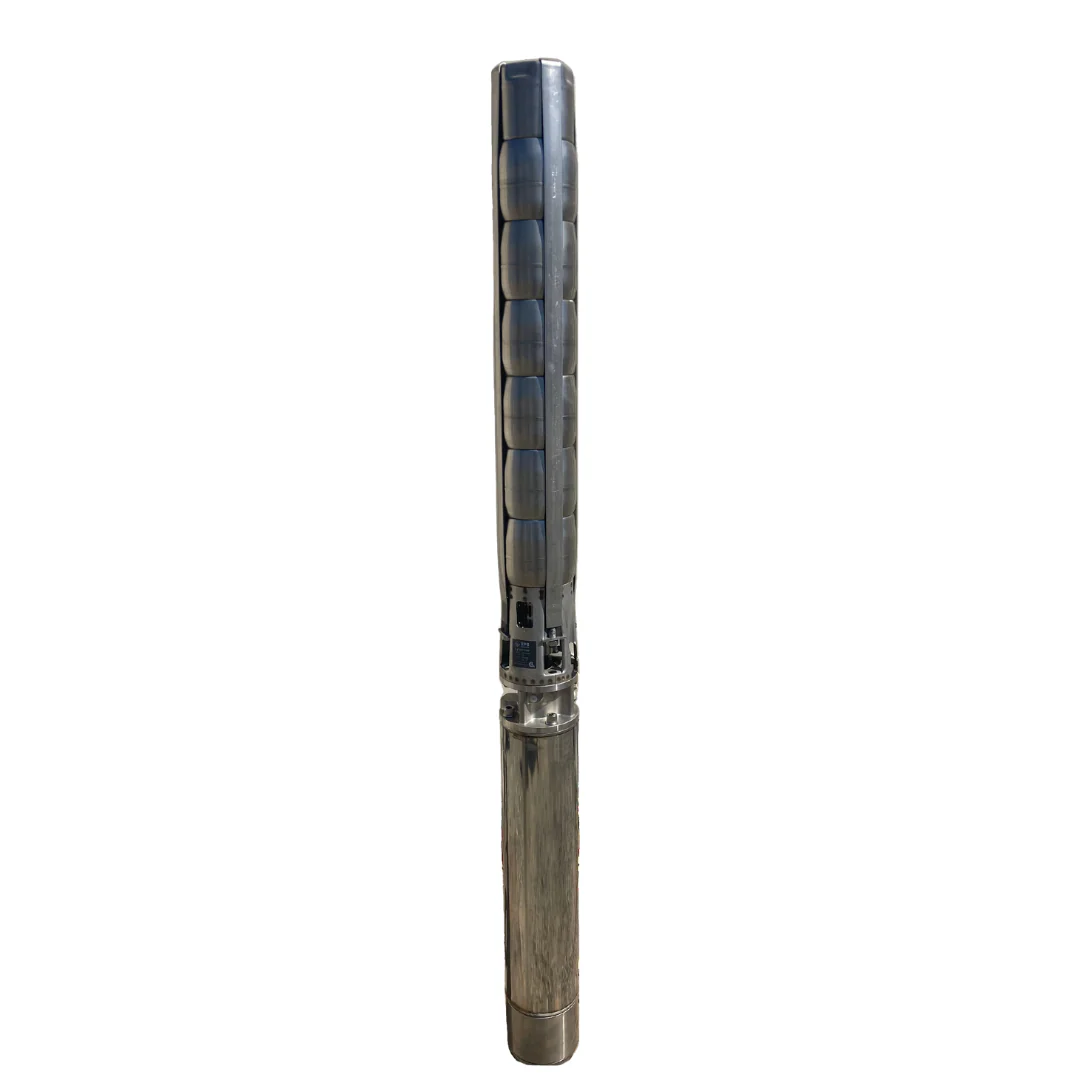

RPS 20HP 480V 300RPS200, Up to 325FT Head, 185 to 396GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

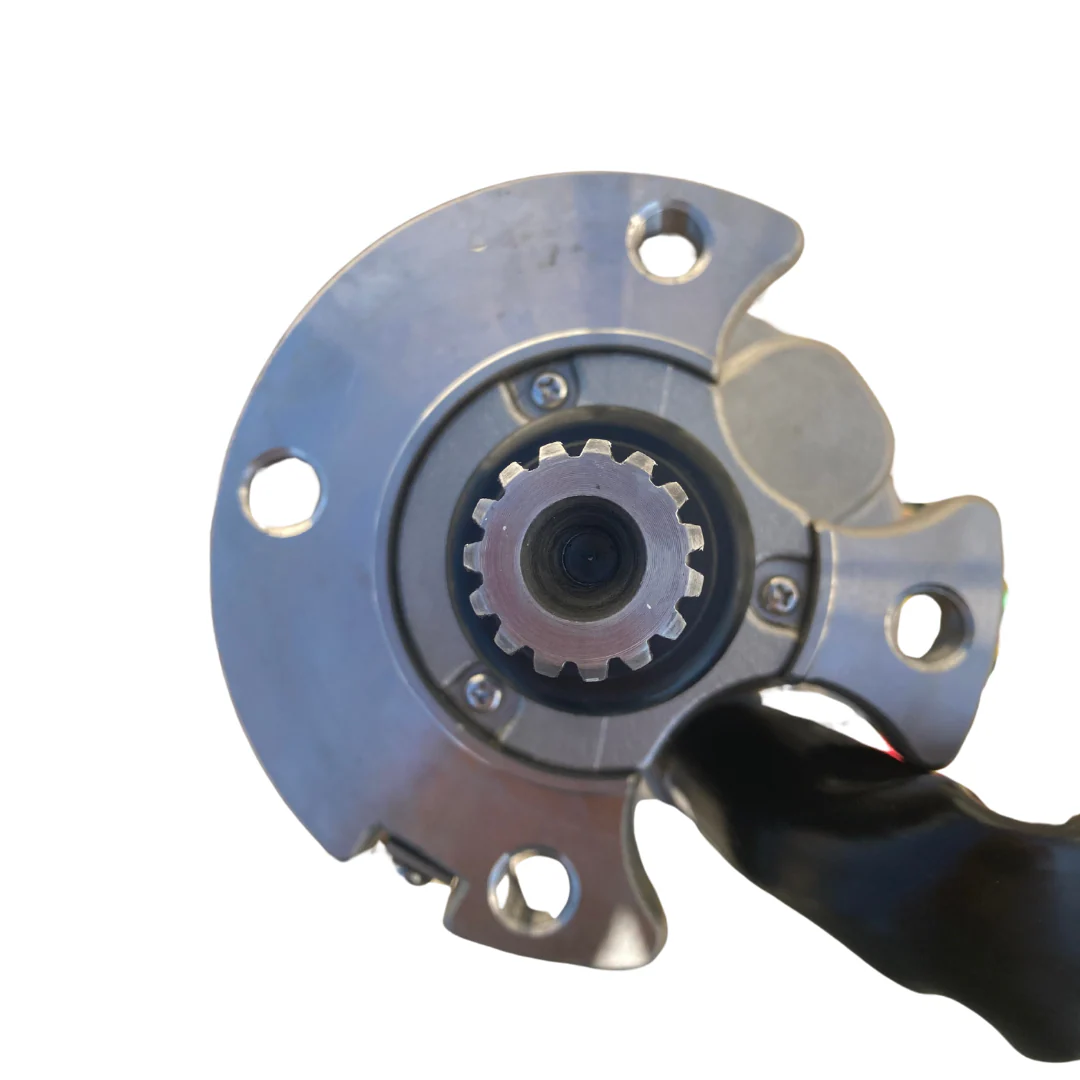

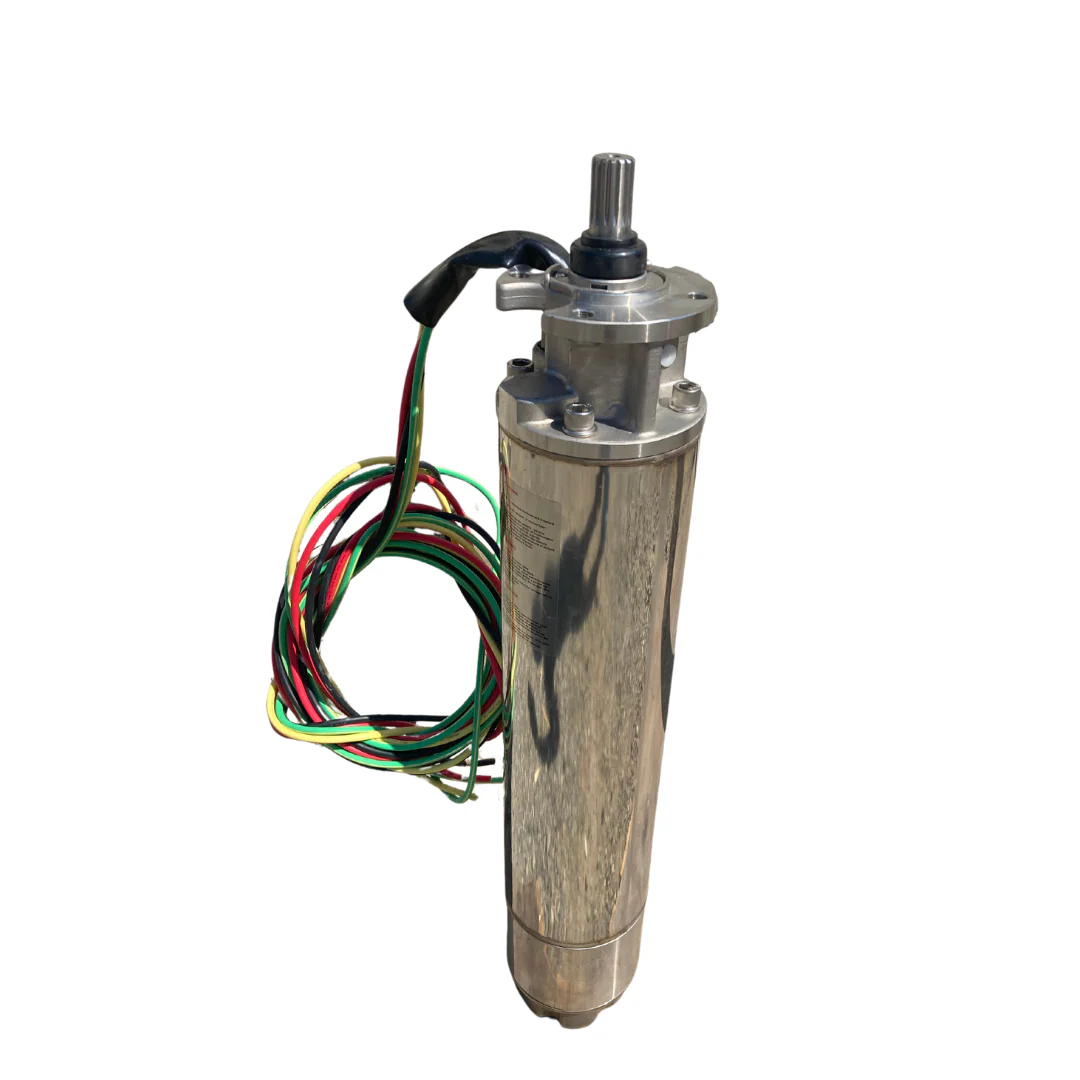

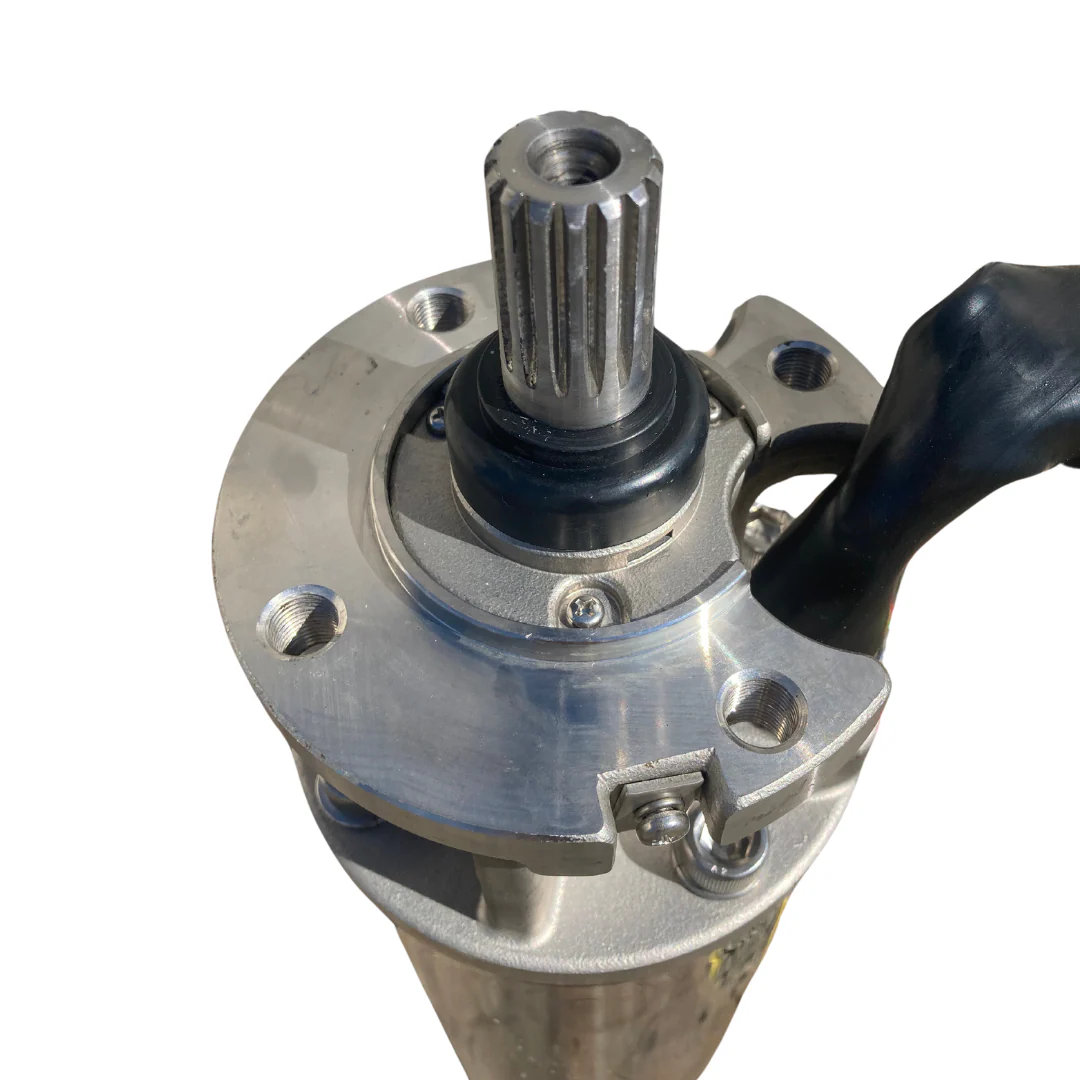

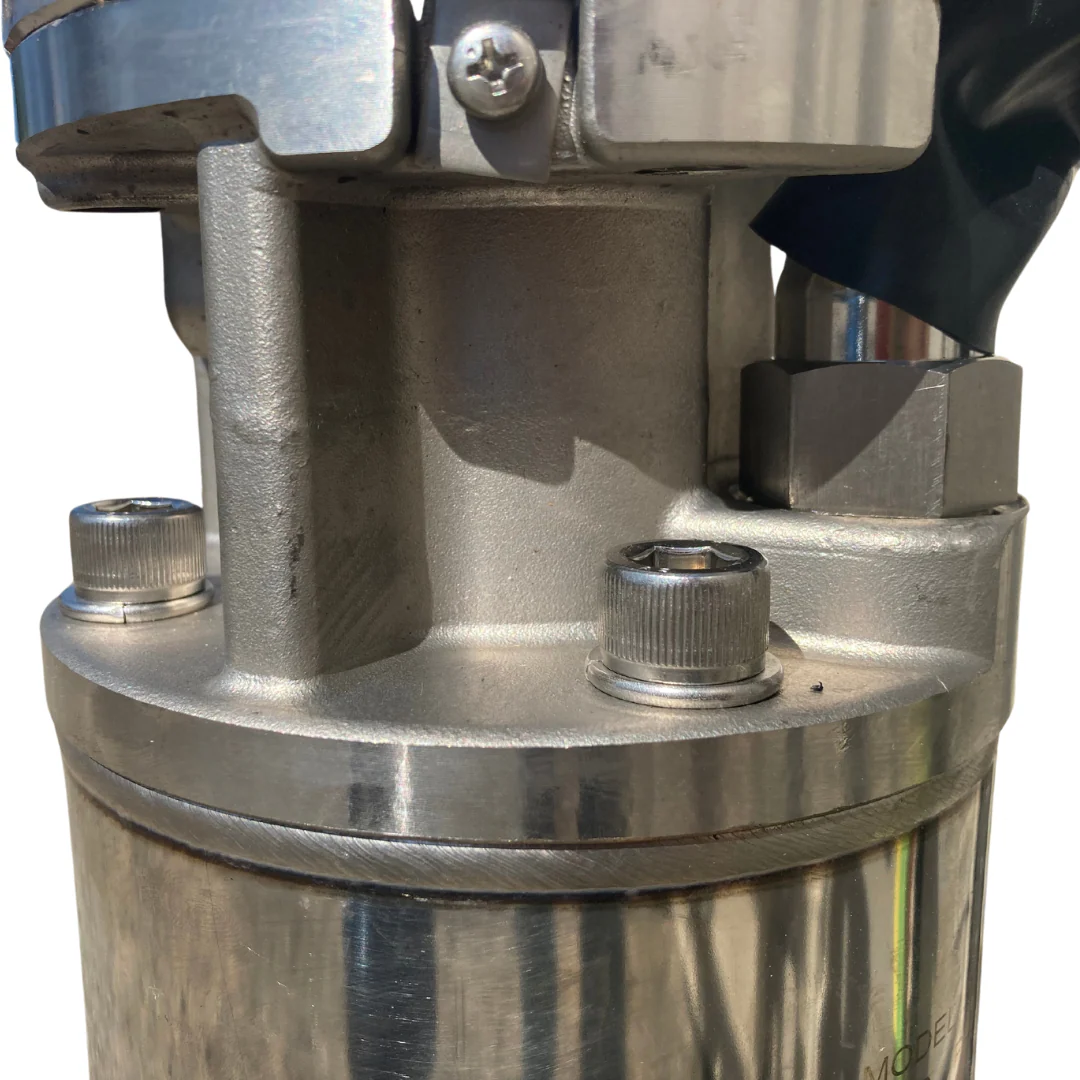

• 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End

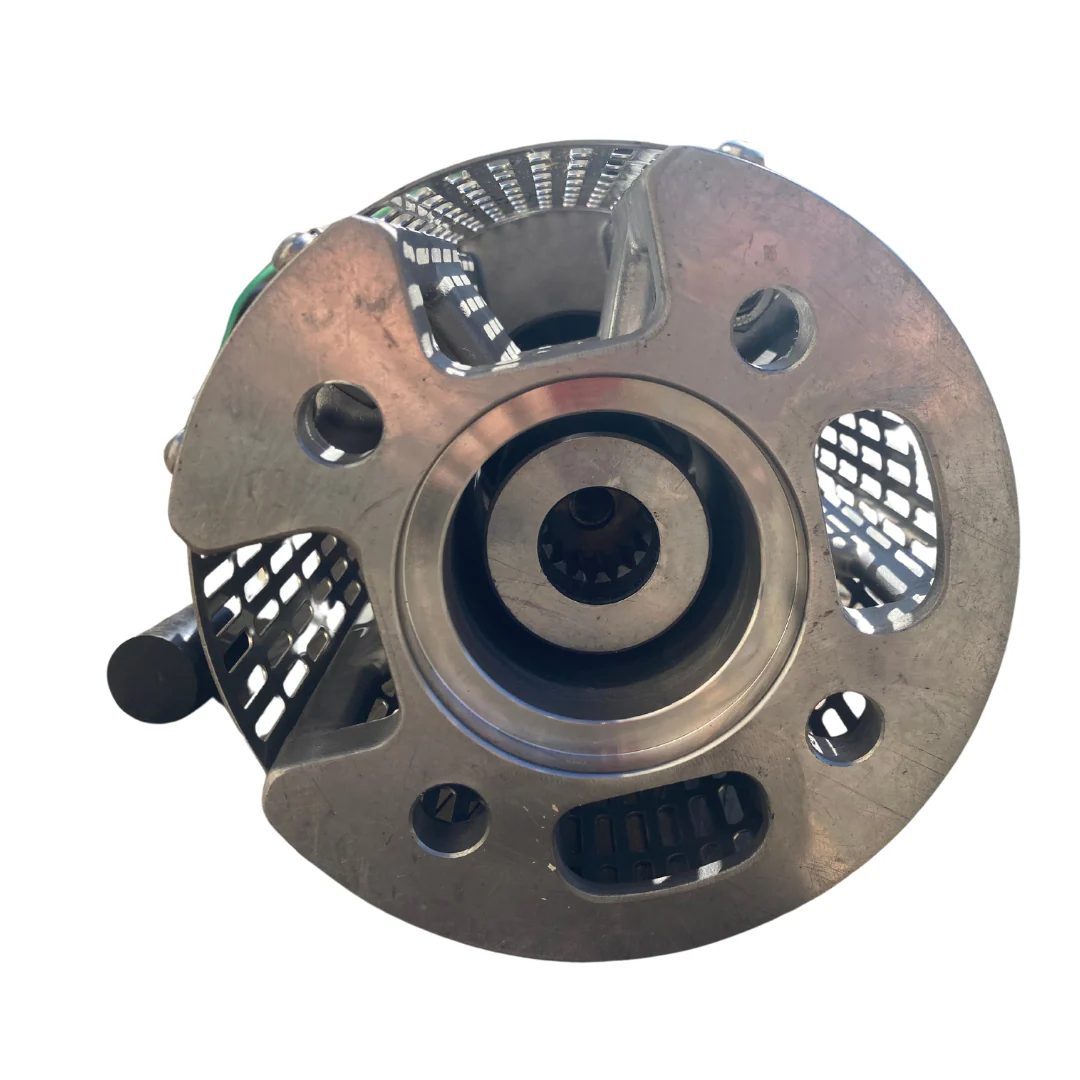

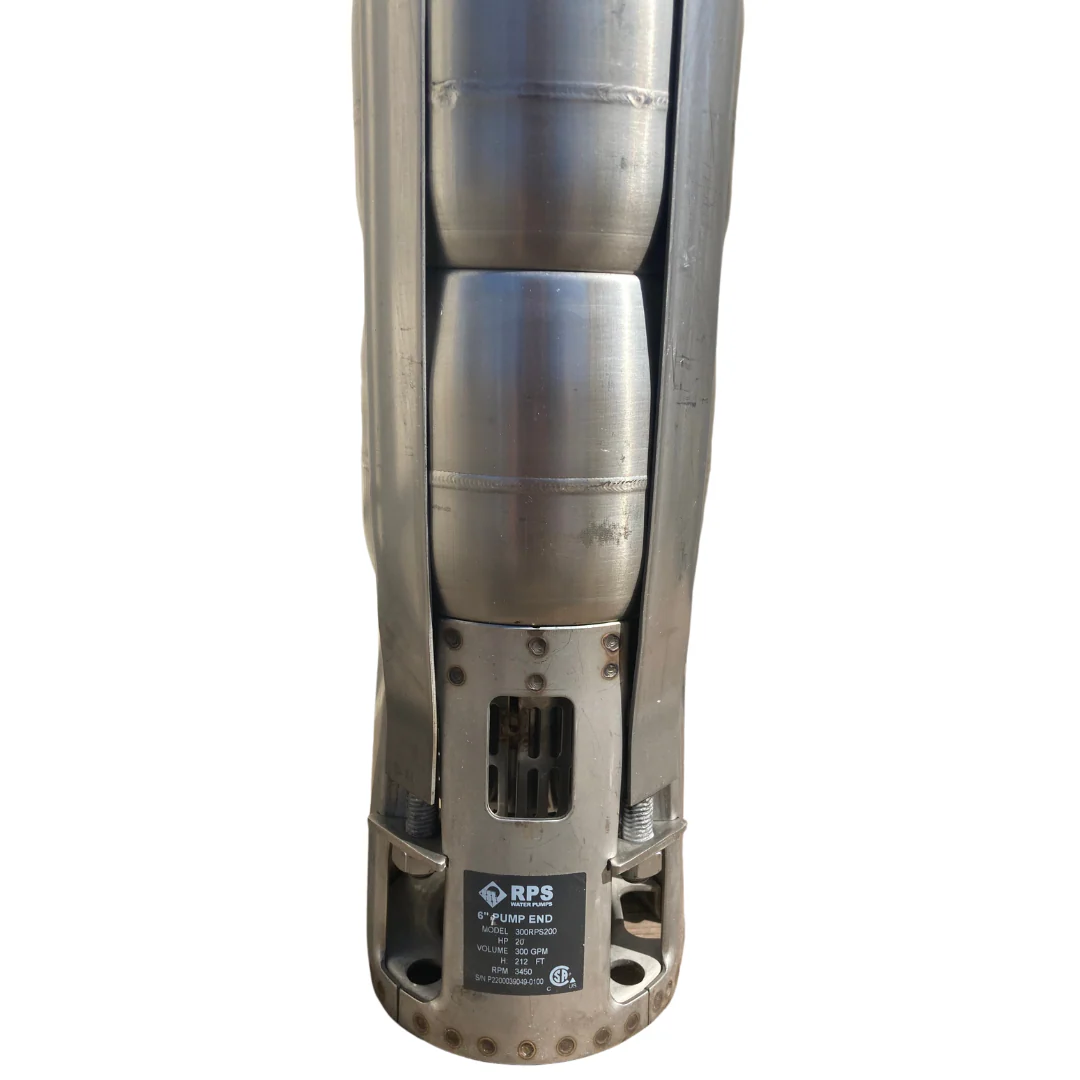

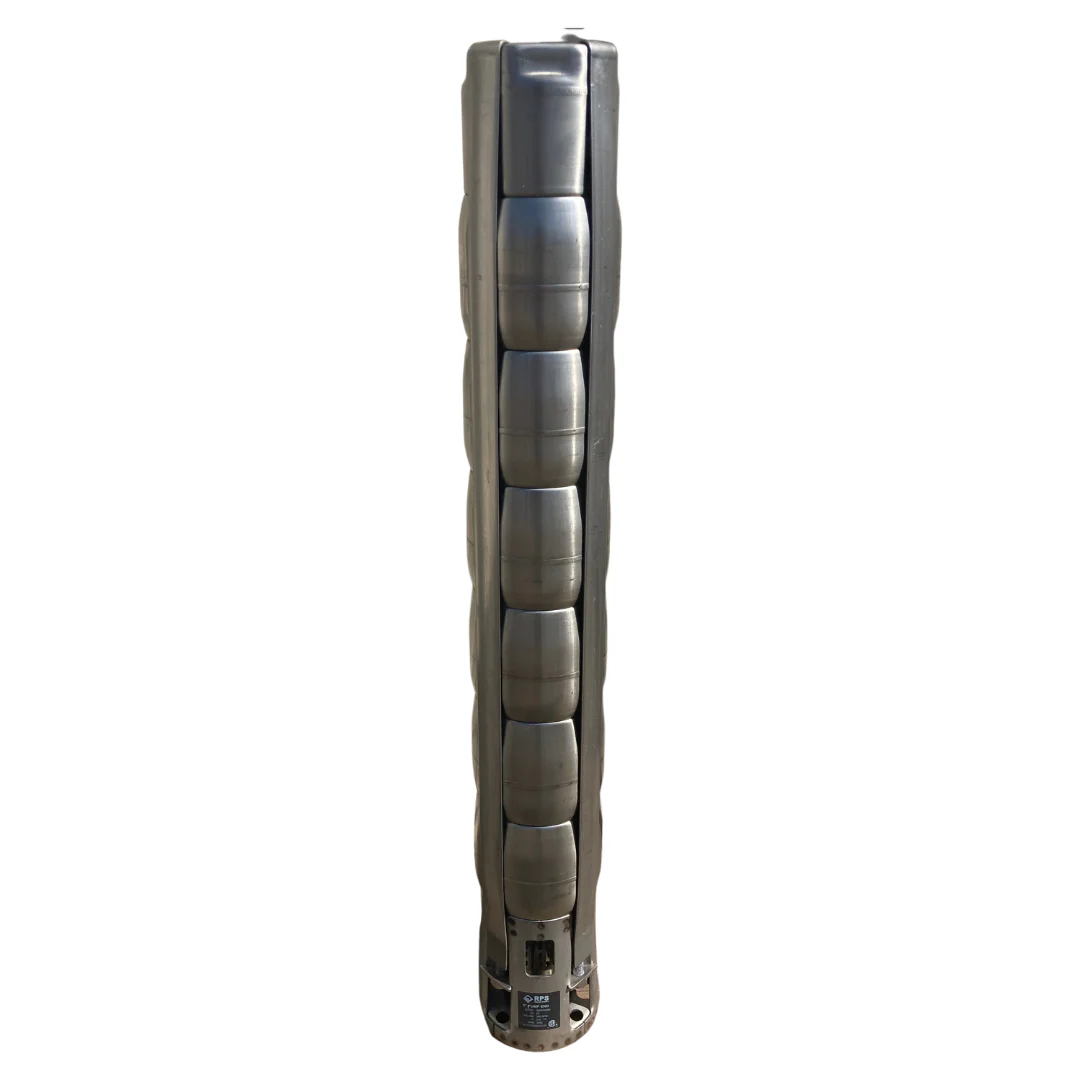

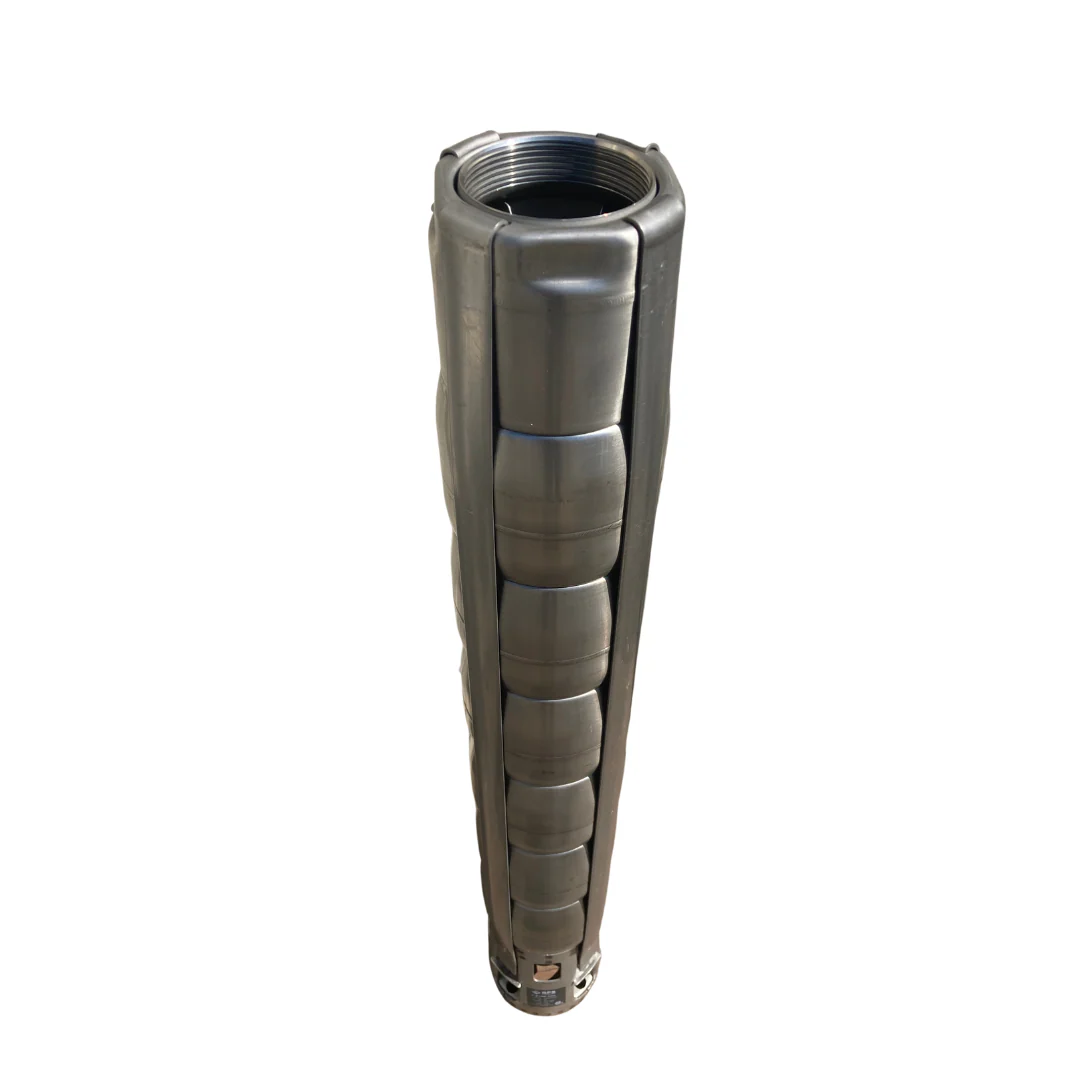

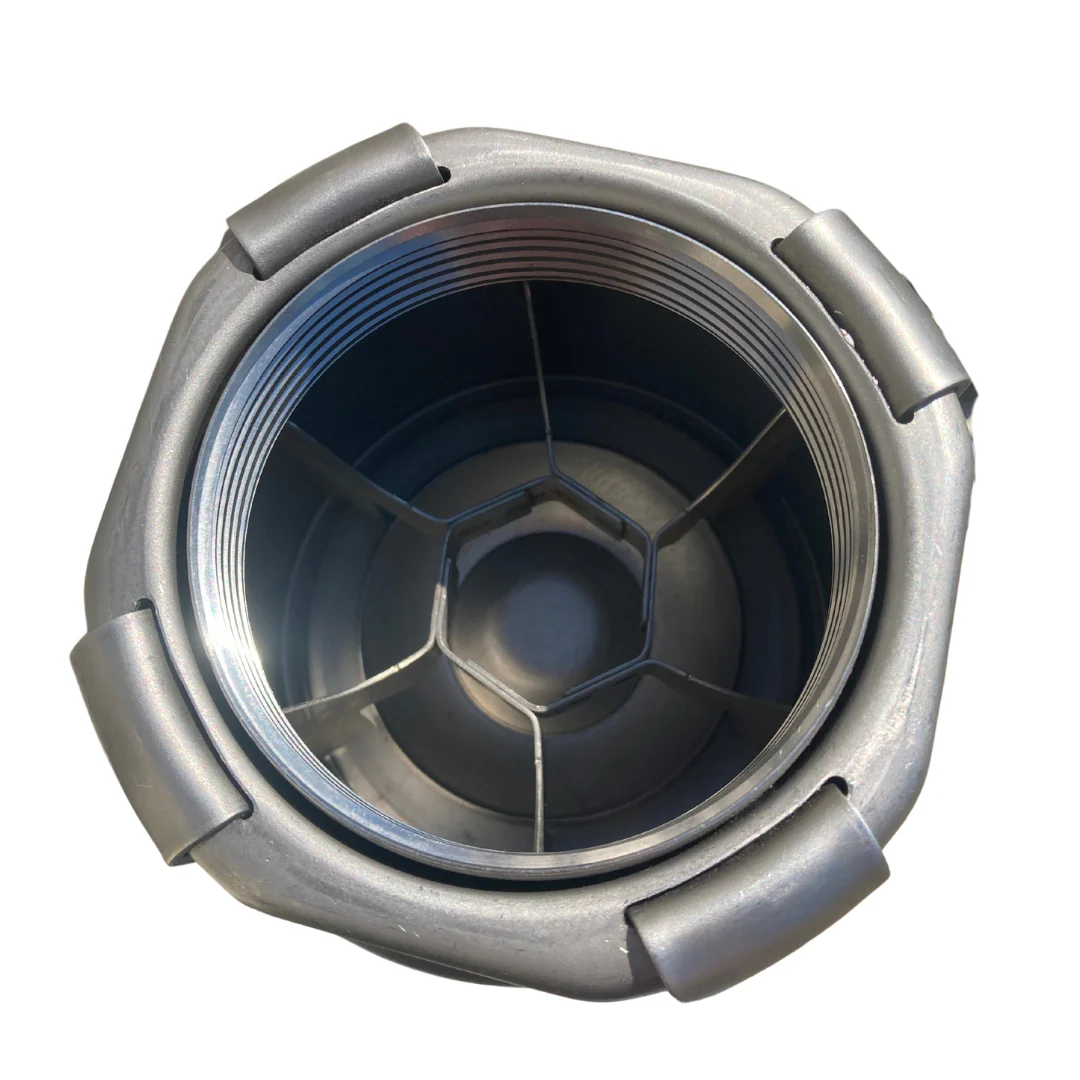

• 3" outlet 300RPS200 185-396GPM Pump End, 6" Outside Diameter

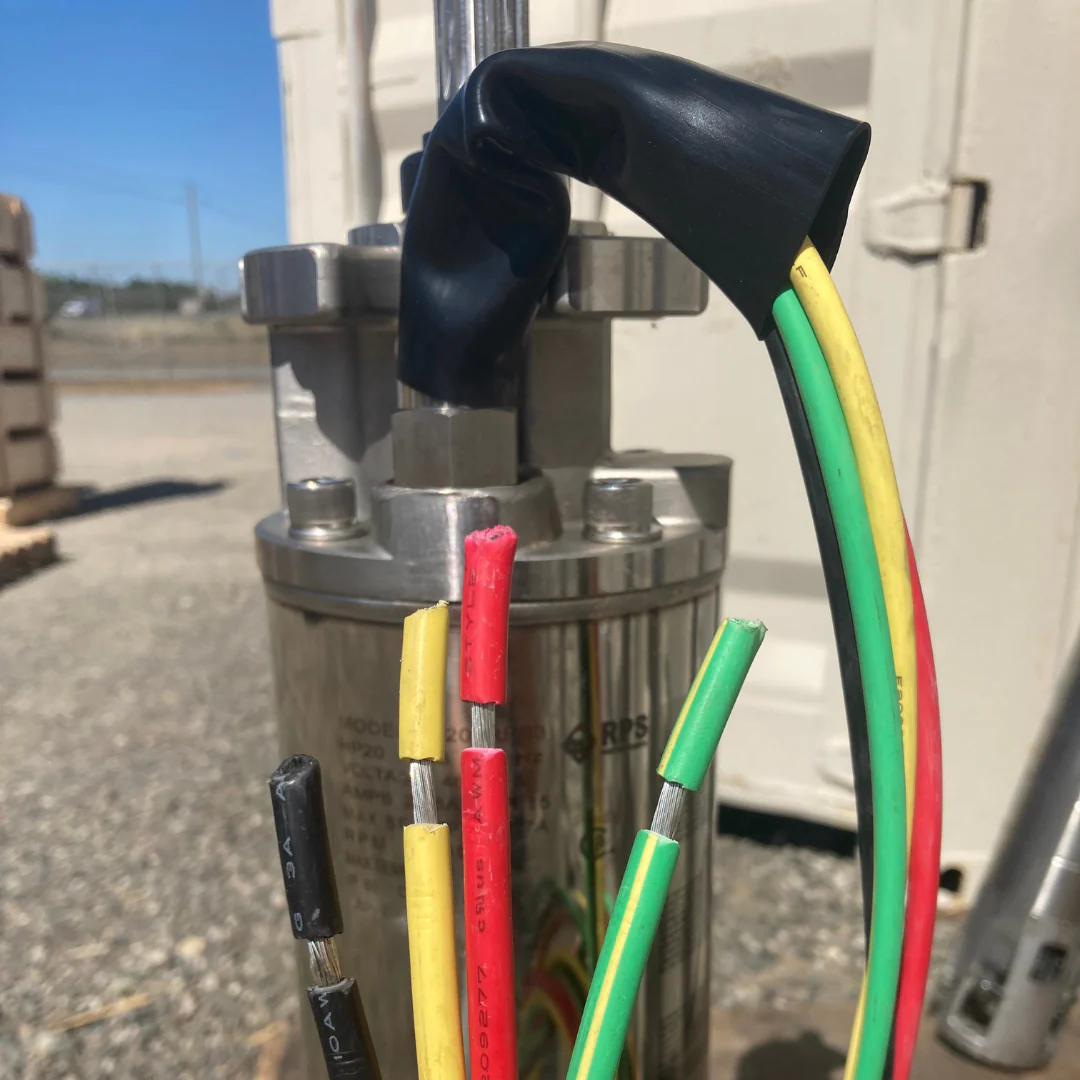

• 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
• Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head	Gallons Per Minute (GPM)
No head	396
25 feet	396
50 feet	396
75 feet	396
100 feet	396
125 feet	396
150 feet	371
175 feet	345
200 feet	315
225 feet	275
250 feet	238
275 feet	211
300 feet	185
Above 400 feet	Size Up for Optimal Performance
