RPS 10HP 480V 400RPS100, Up to 110FT Head, 216 to 528 GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

• 10HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End
• 5" outlet 400RPS100 216-528GPM Pump End, 7.1" Outside Diameter

• 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
• Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

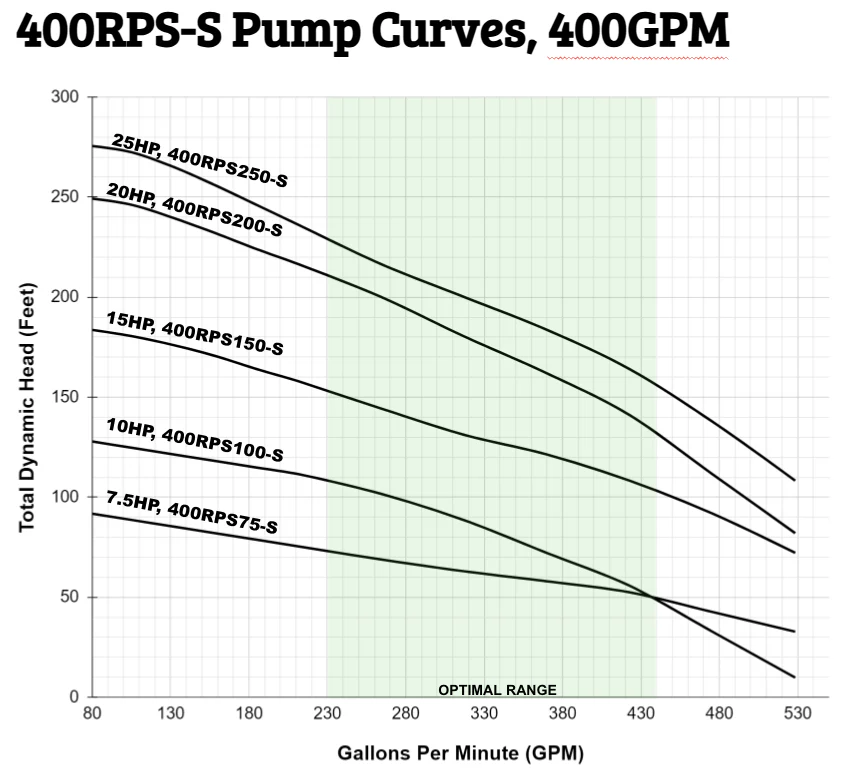

Total Head	Gallons Per Minute (GPM)
No head	528
10 feet	528
20 feet	505
30 feet	480
40 feet	460
50 feet	430
60 feet	412
70 feet	375
80 feet	345
90 feet	310
100 feet	268
110 feet	216
Above 110 feet	Size Up for Optimal Performance
