RPS 20HP 480V 400RPS200, Up to 200FT Head, 264 to 528GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

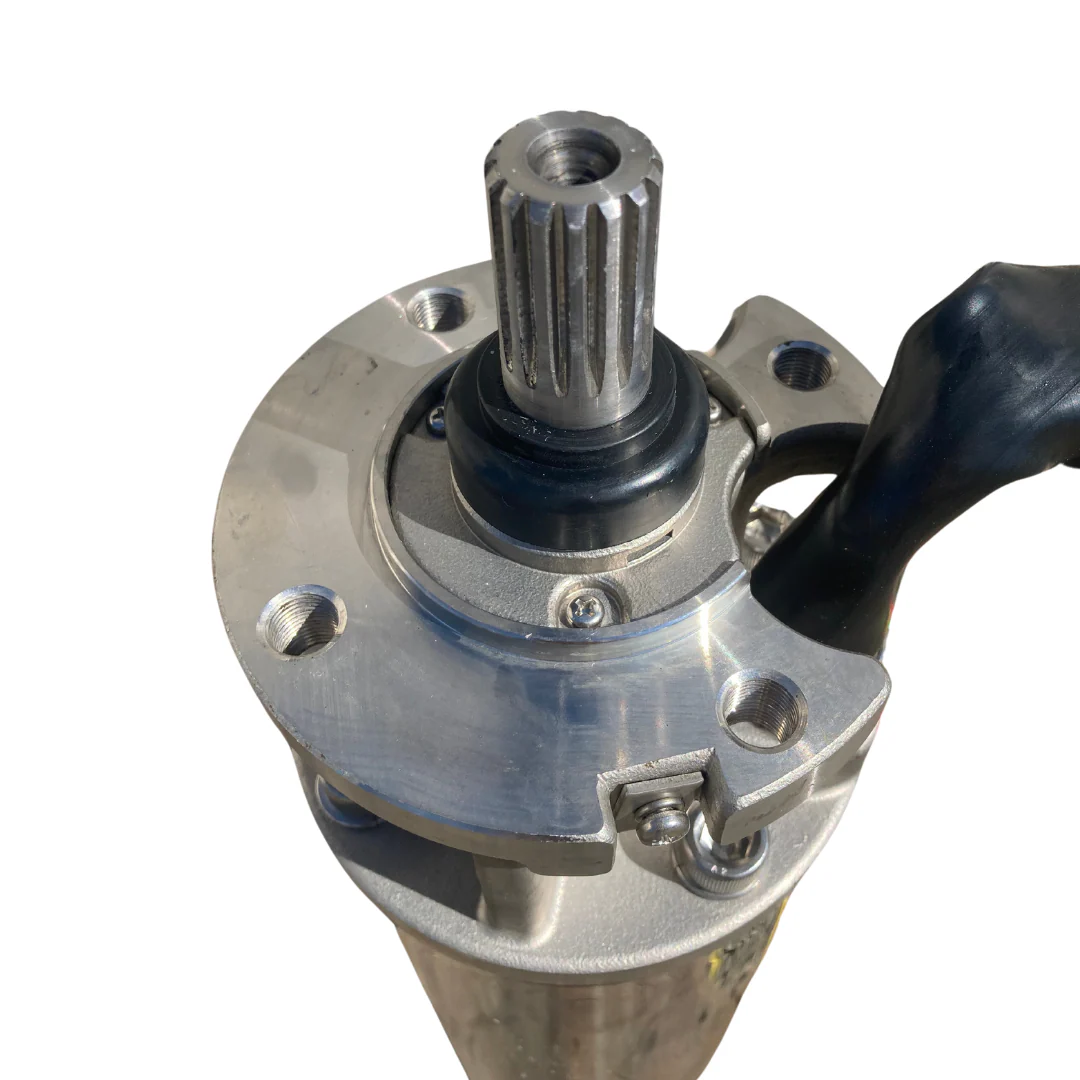

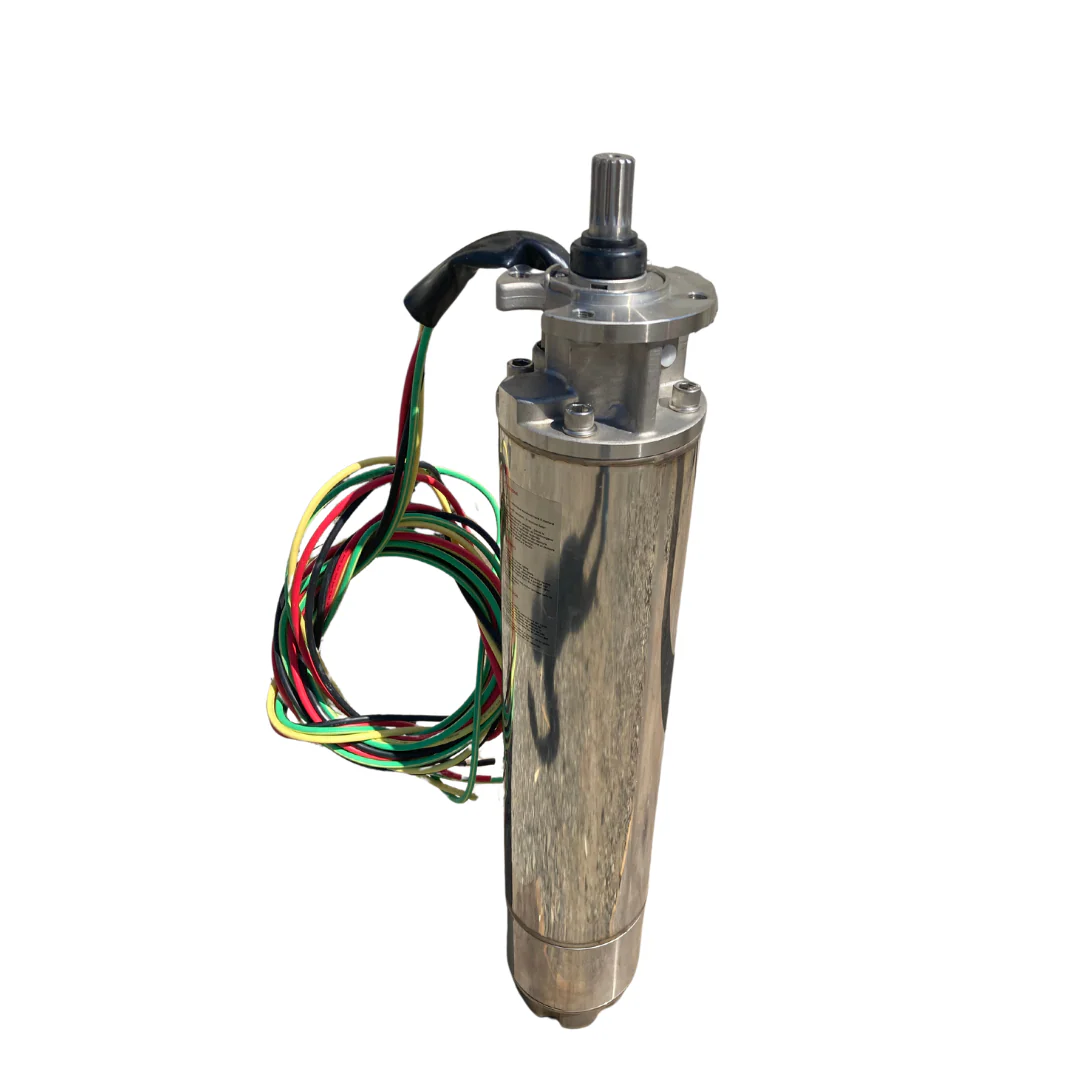

• 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End

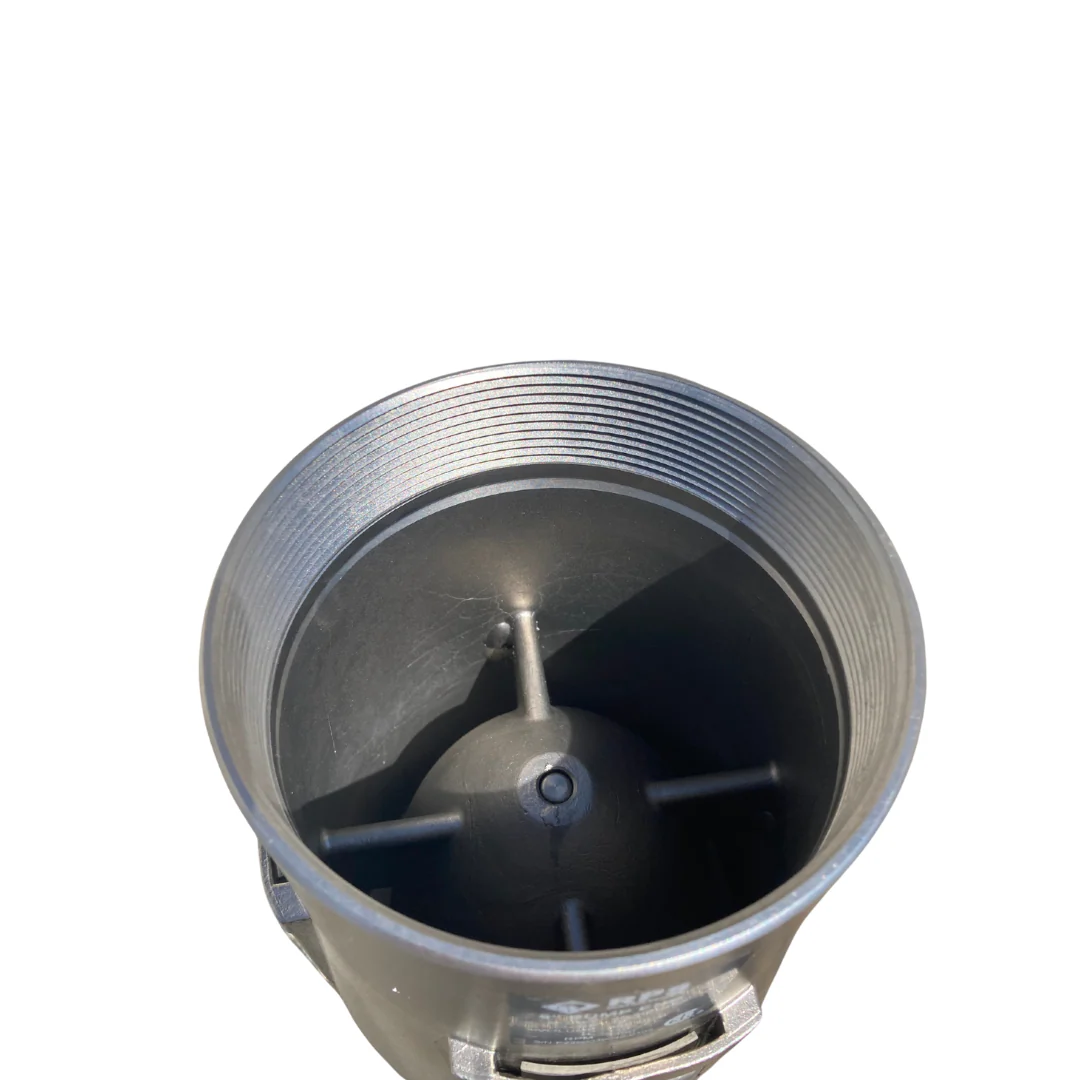

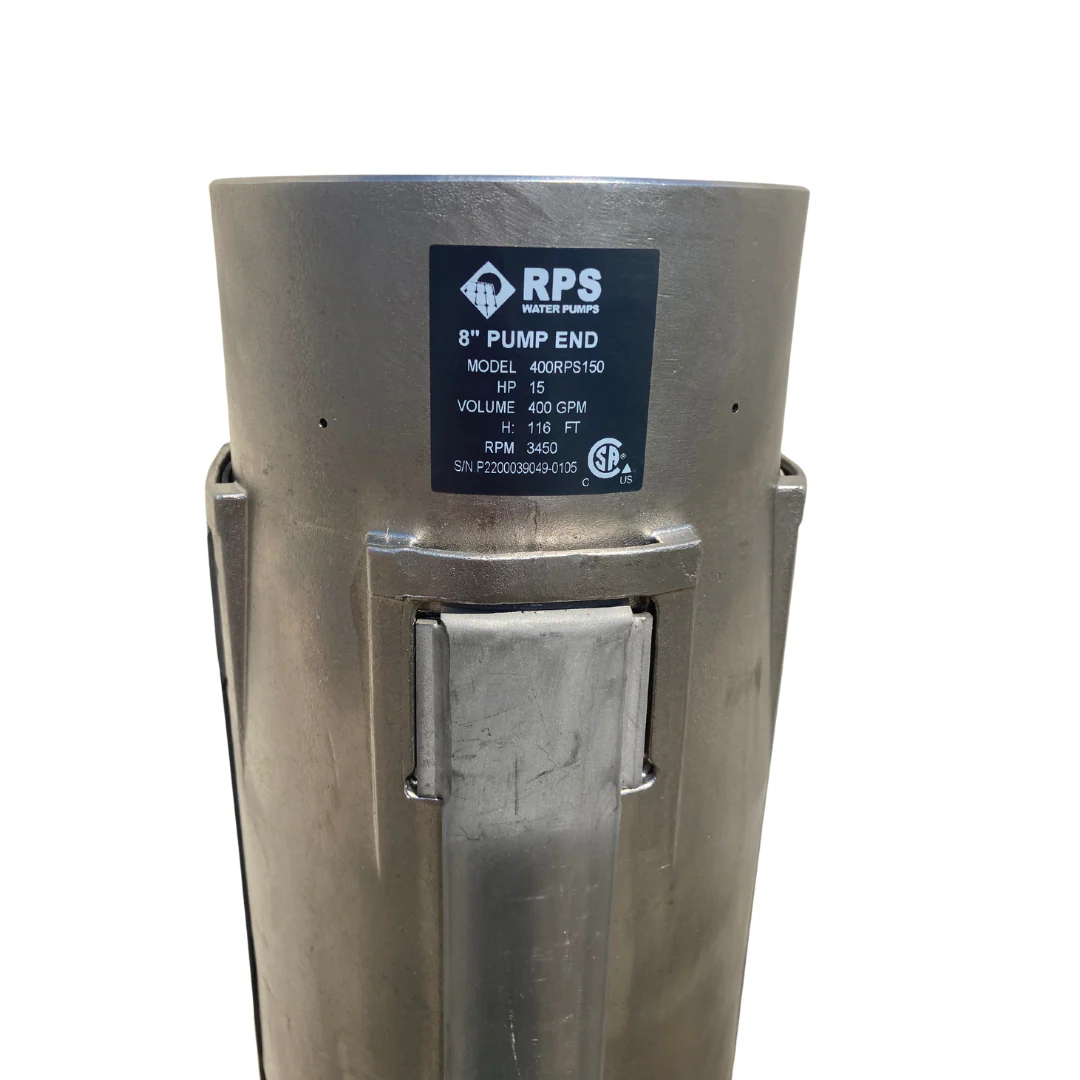

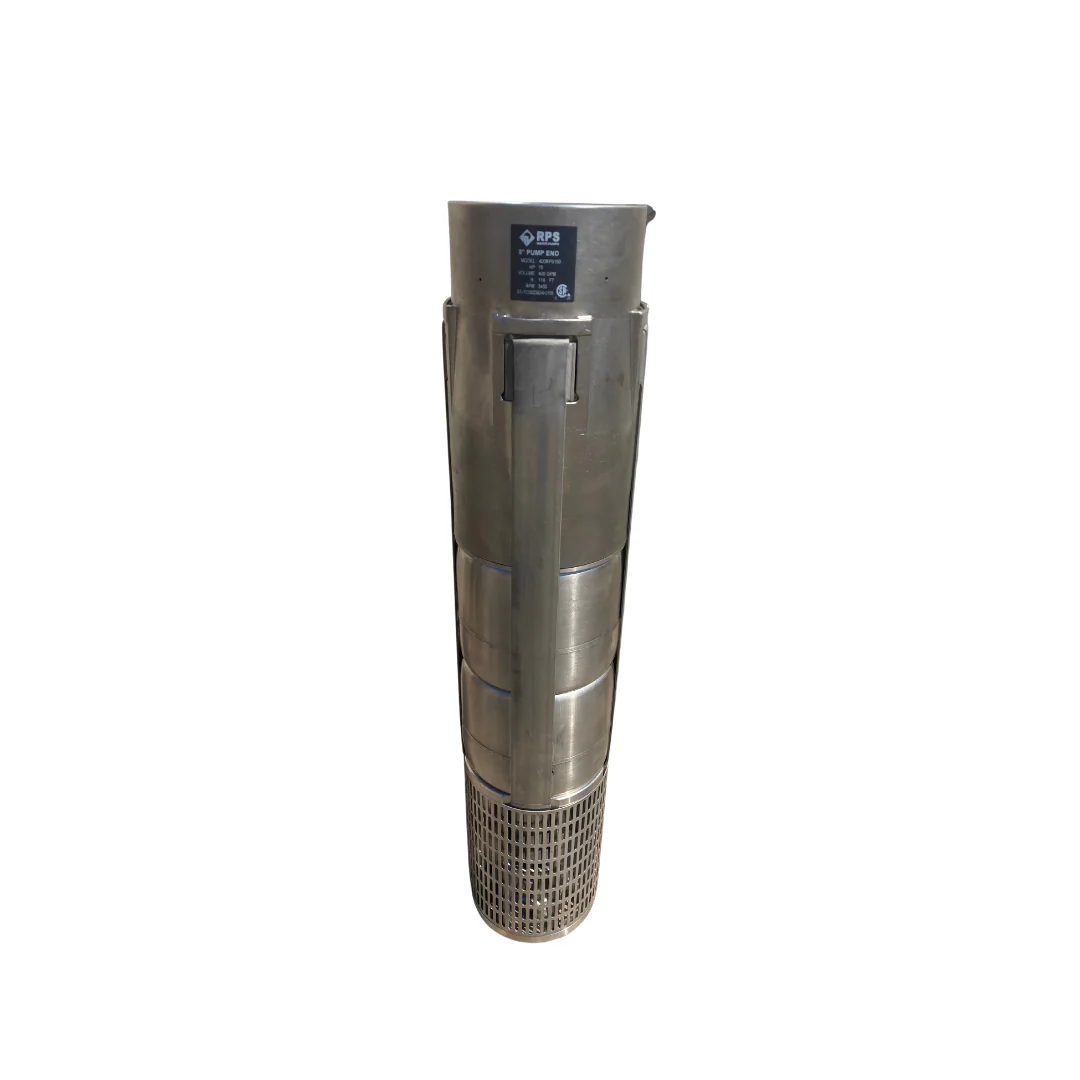

• 5" outlet 400RPS200 264-528 GPM Pump End, 8" Outside Diameter

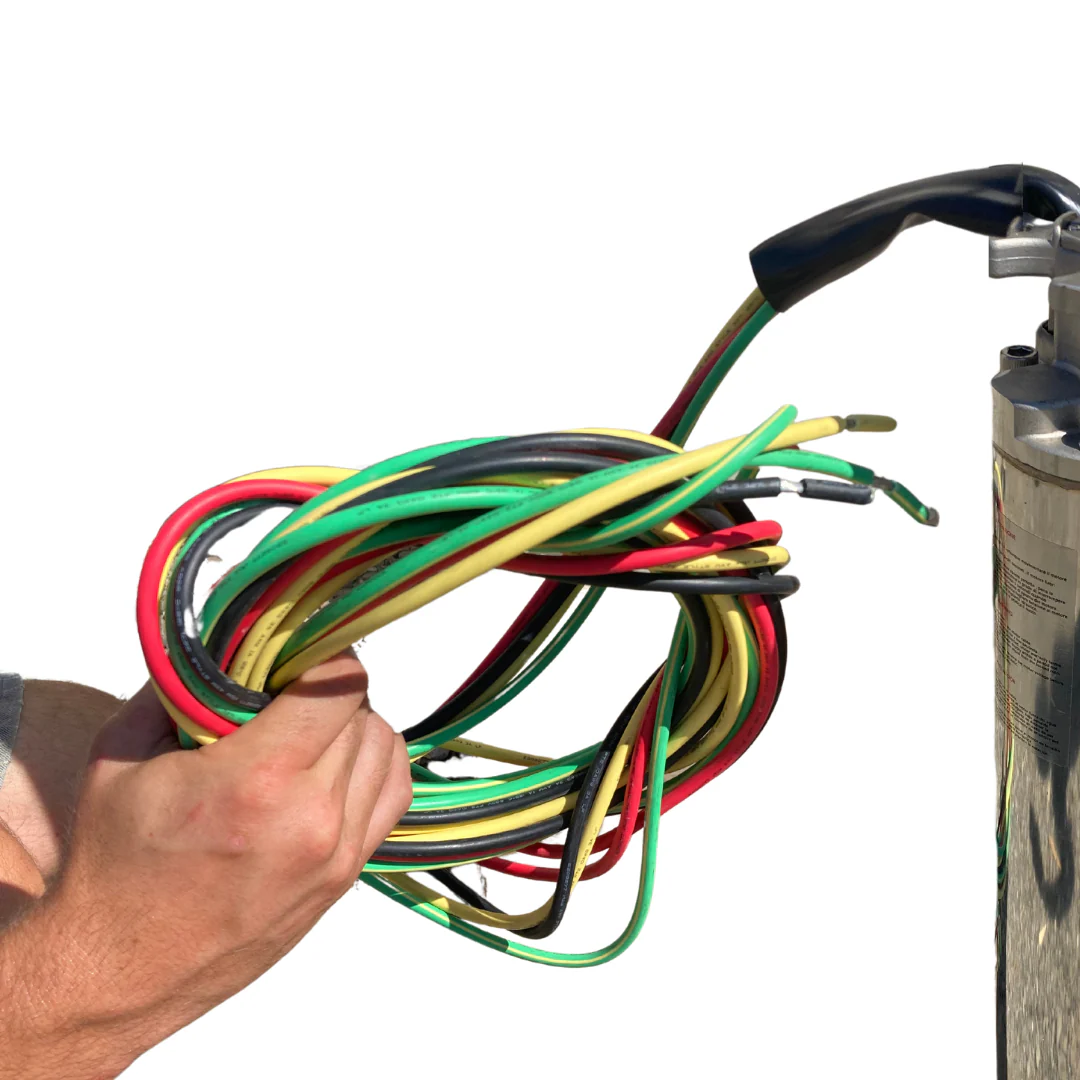

• 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
• Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head	Gallons Per Minute (GPM)
No head	528
10 feet	528
20 feet	528
30 feet	528
40 feet	528
50 feet	528
60 feet	528
70 feet	528
80 feet	510
90 feet	482
100 feet	453
110 feet	419
120 feet	370
130 feet	317
140 feet	274
150 feet	389
160 feet	353
170 feet	341
180 feet	305
190 feet	285
200 feet	264
Above 200 feet	Size Up for Optimal Performance
