RPS 20HP 480V 500RPS200, Up to 200FT Head, 324 to 660GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

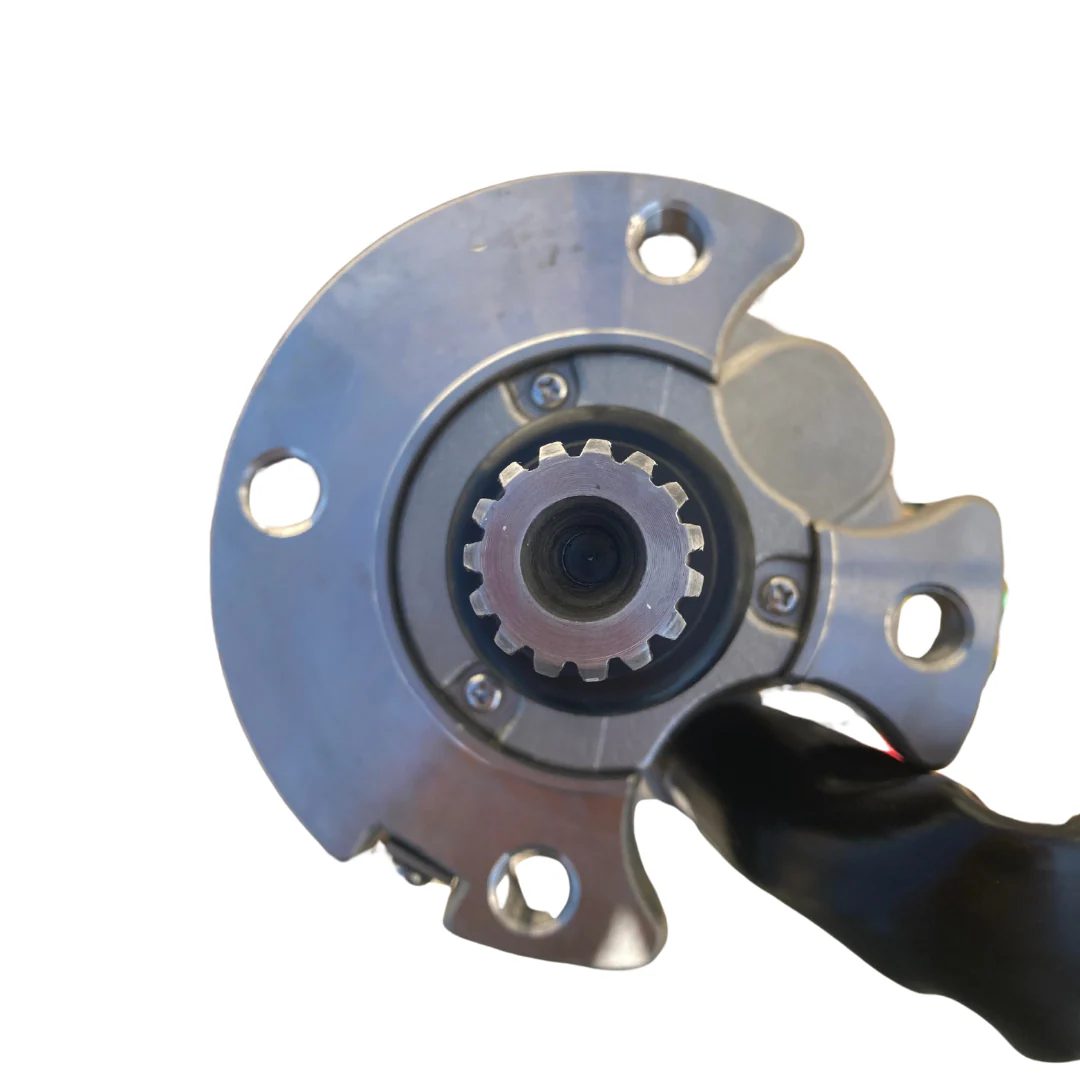

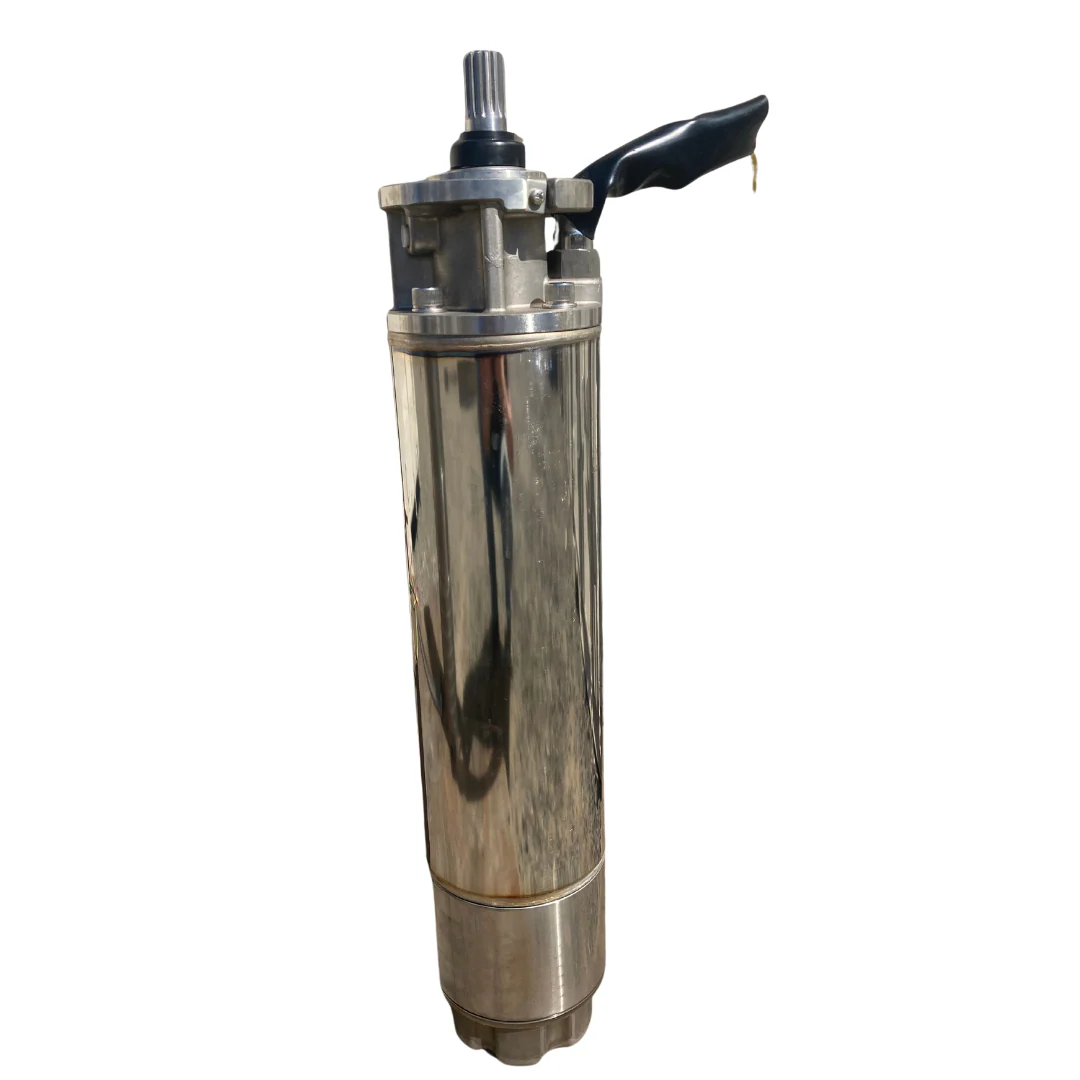

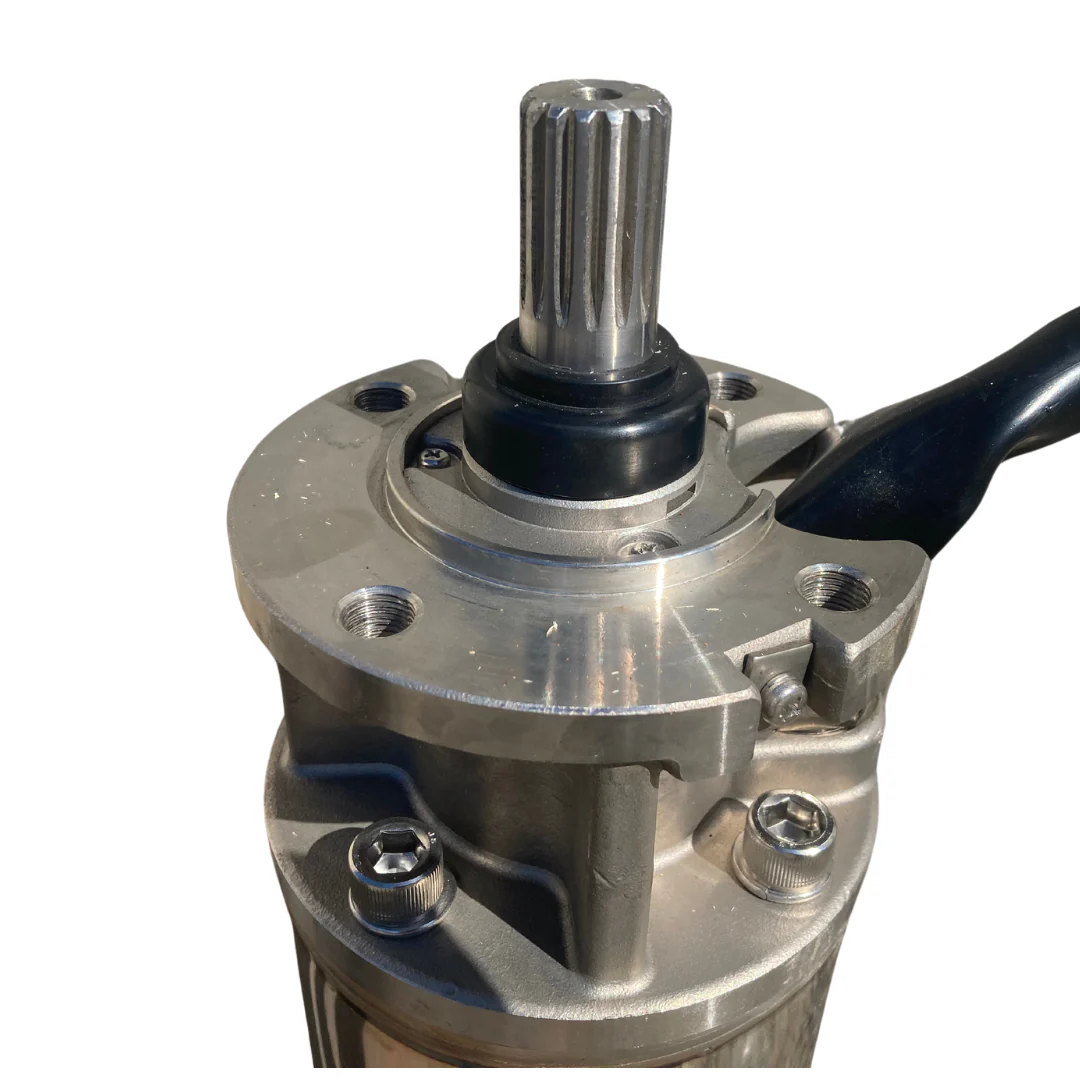

• 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End

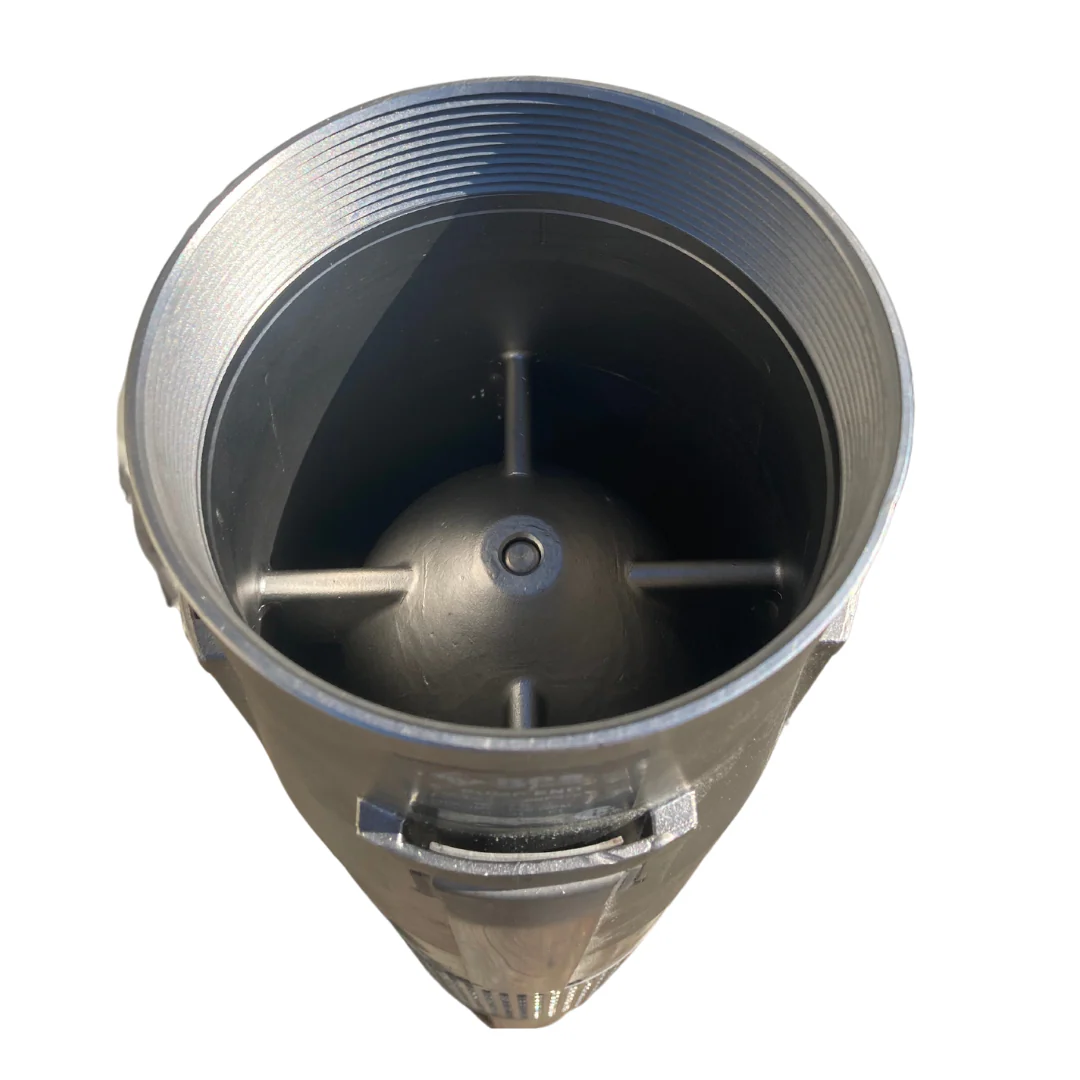

• 5" outlet 500RPS200 324-660GPM Pump End, 8" Outside Diameter

• 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
• Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head	Gallons Per Minute (GPM)
No head	660
10 feet	660
20 feet	660
30 feet	660
40 feet	660
50 feet	630
60 feet	618
70 feet	601
80 feet	578
90 feet	555
100 feet	531
110 feet	509
120 feet	488
130 feet	465
140 feet	450
150 feet	412
160 feet	368
175 feet	324
Above 175 feet	Size Up for Optimal Performance
