RPS Core Series 60RPS50 4" Submersible Pump End | Engineered Impeller | 35-90 GPM

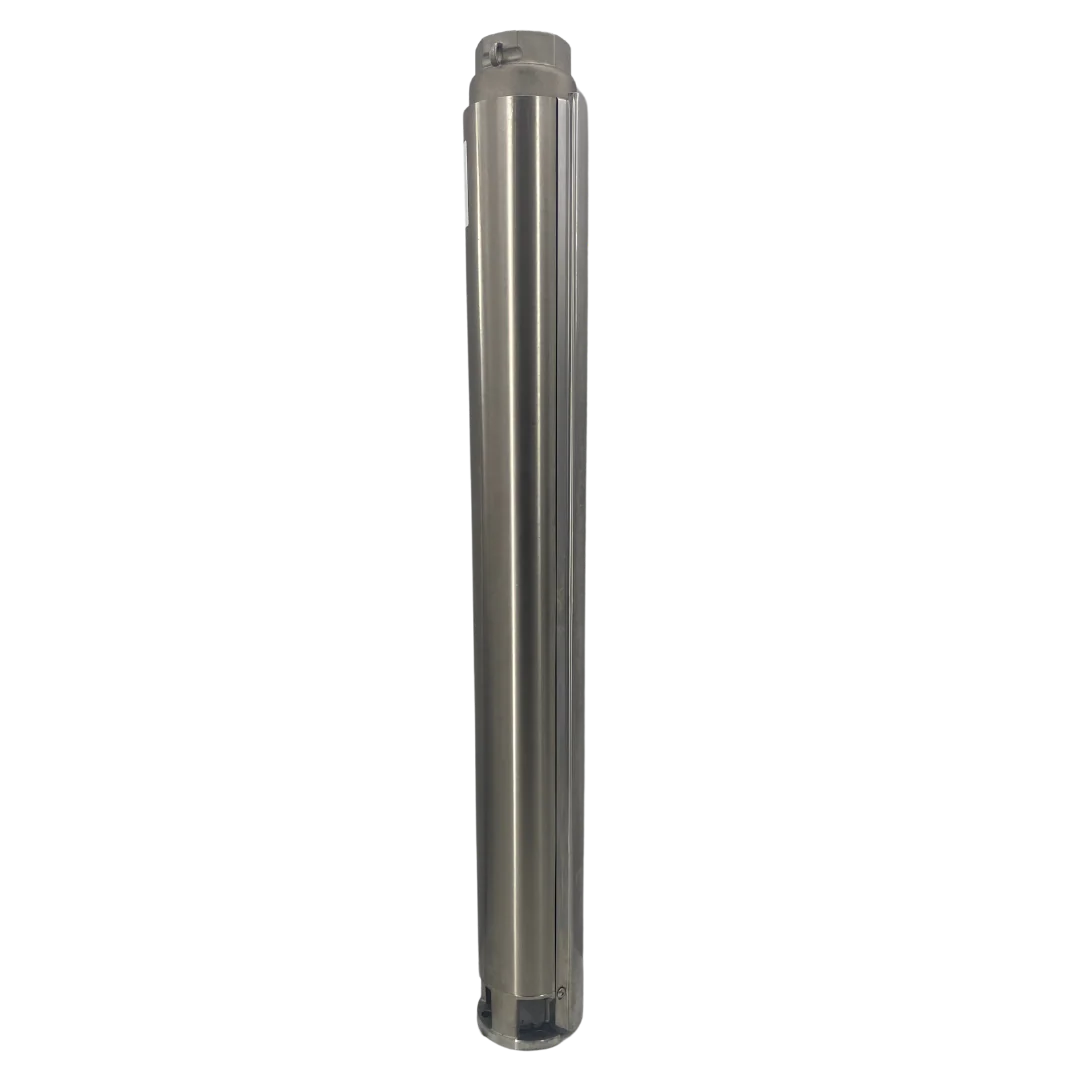

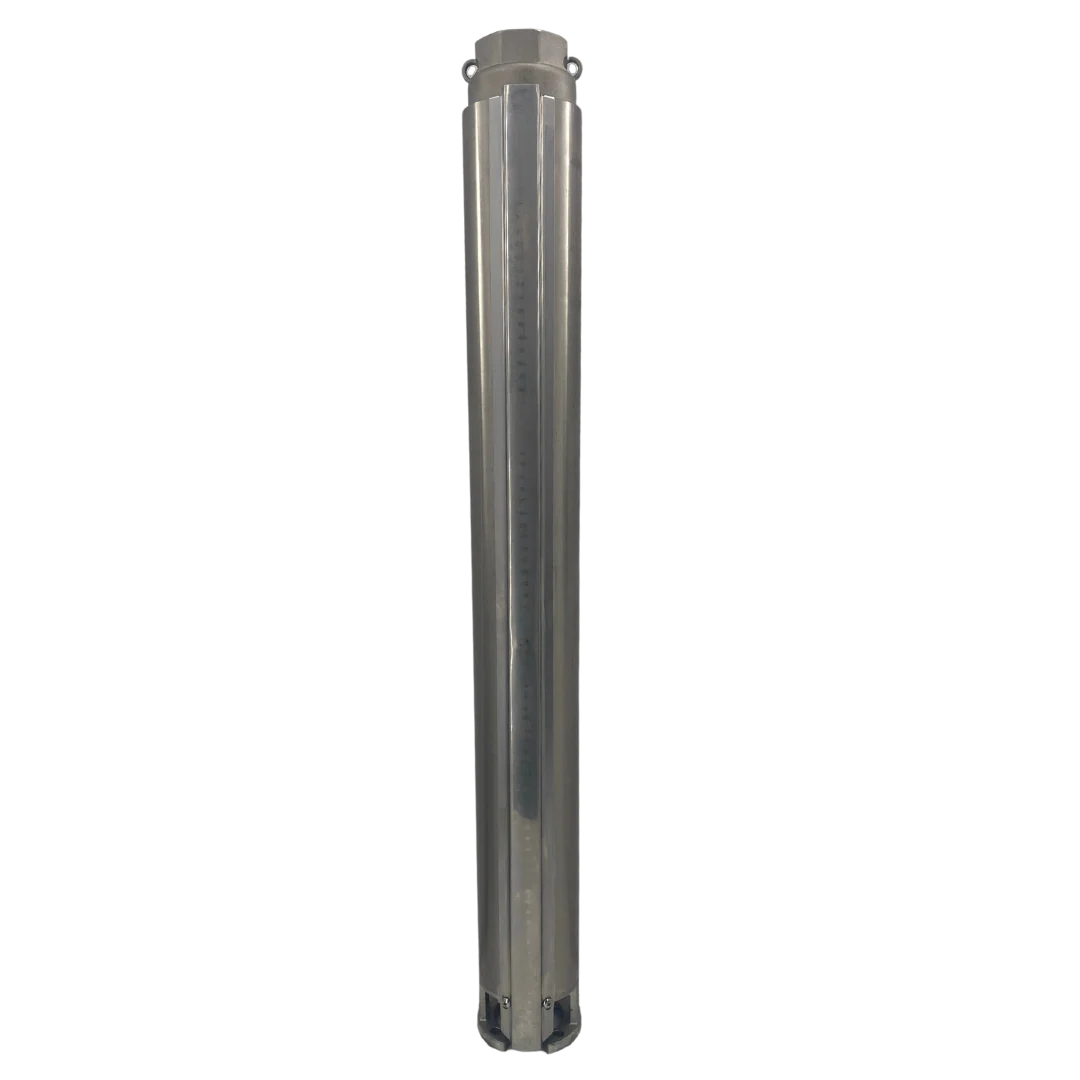

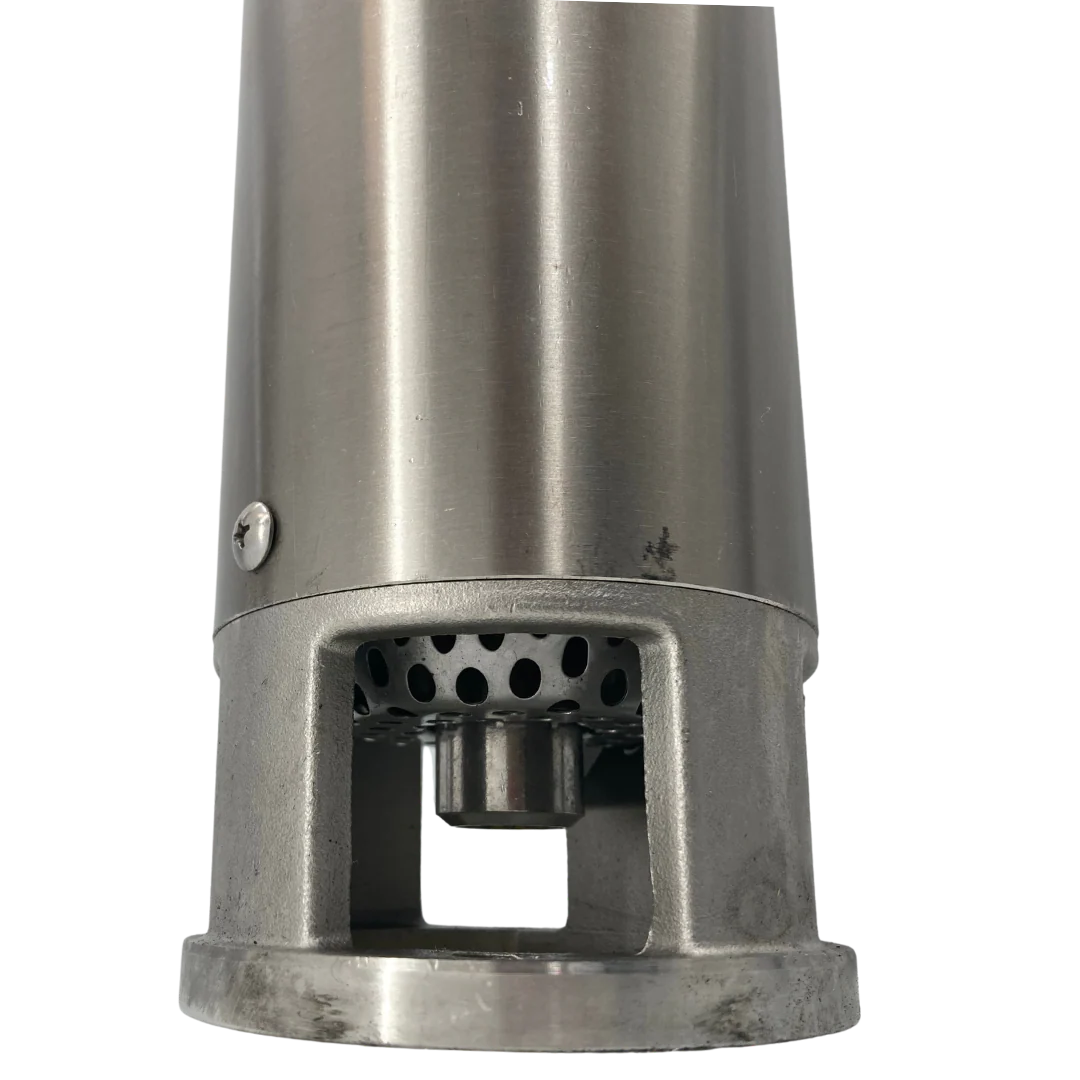

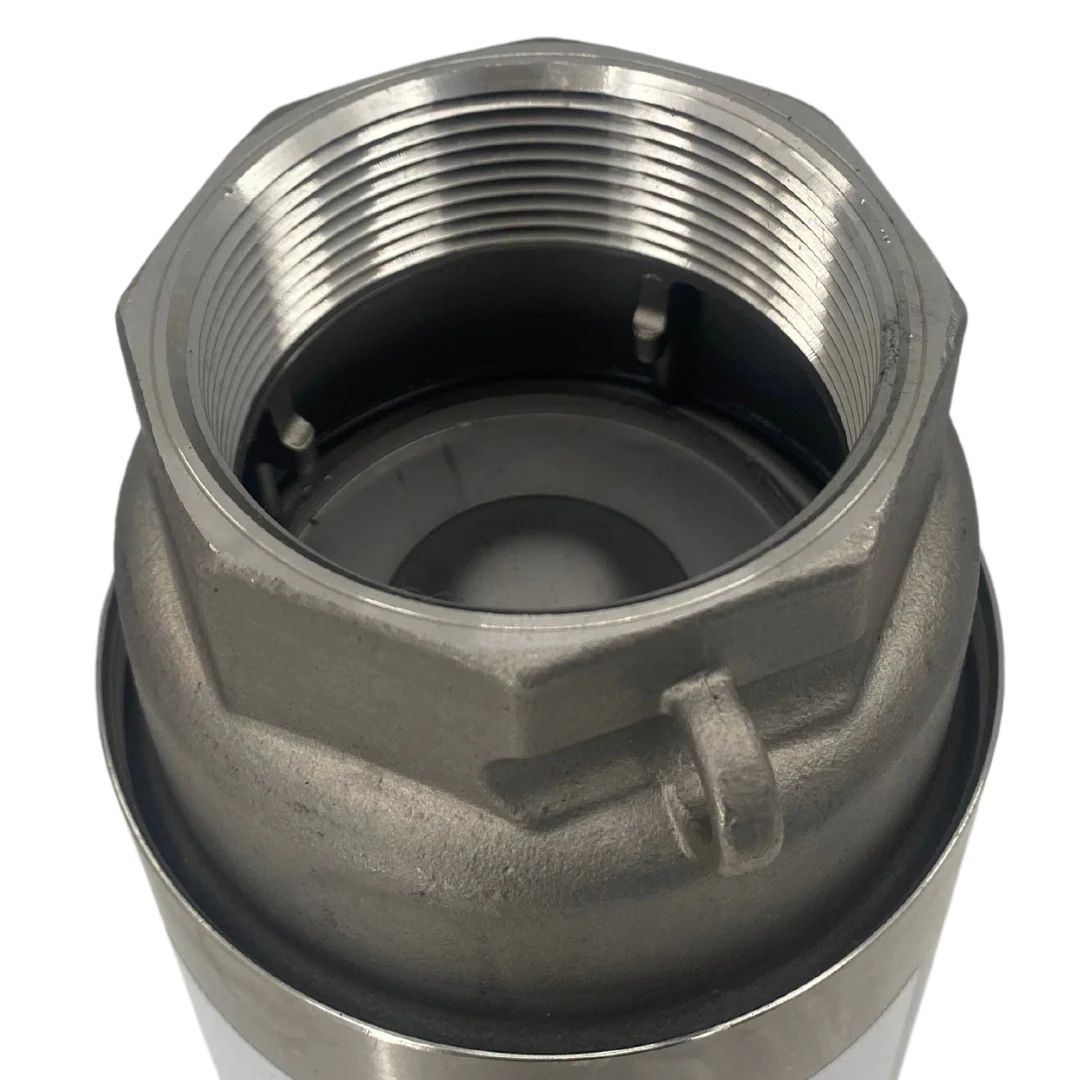

A 35-90GPM Pump End, made from hardy stainless steel construction. Paired with a 5HP motor end, shop RPS motor ends here.

Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.

RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.

✅  NSF Drinking Water and UL Compliant

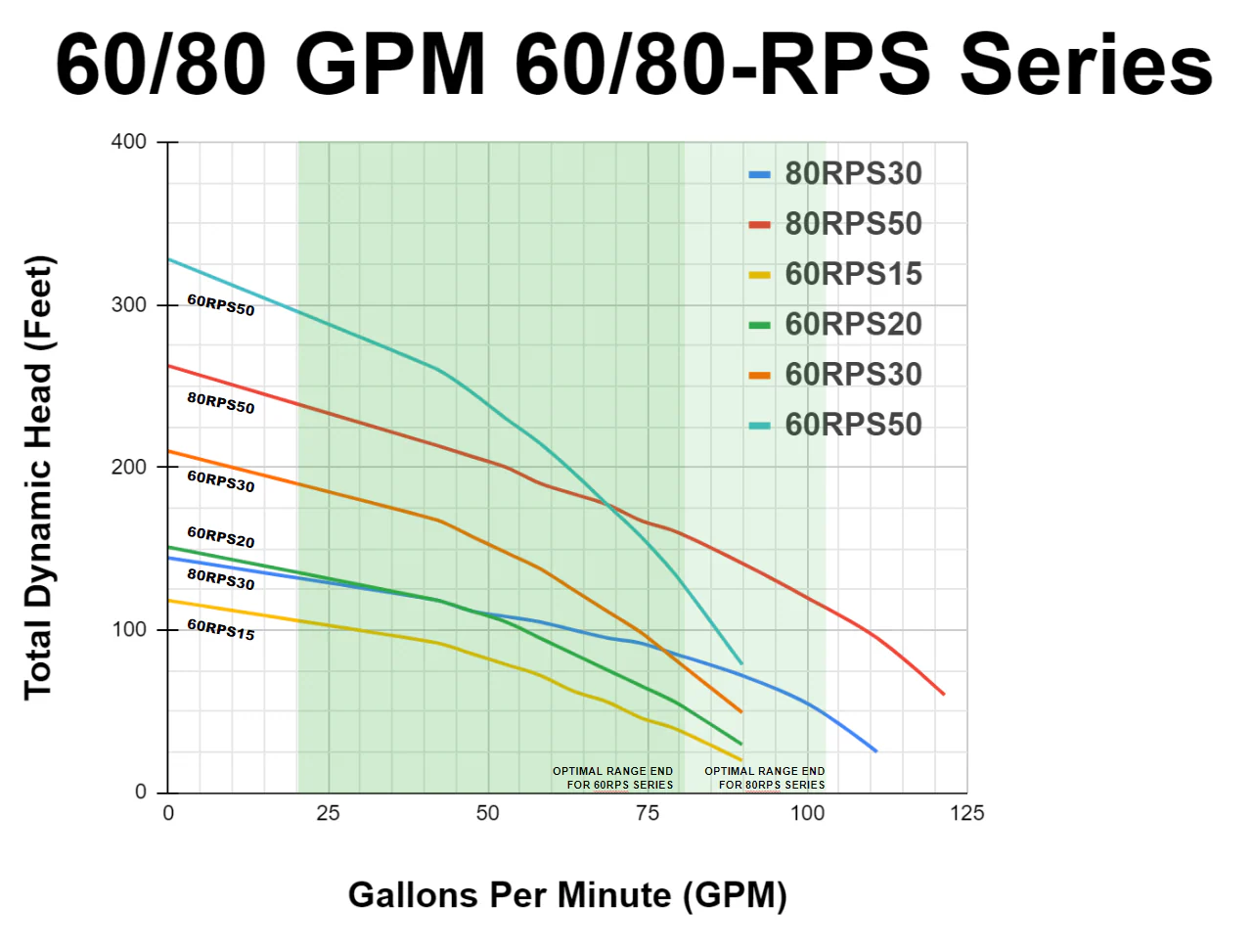

Total Head	Gallons Per Minute (GPM)
No head	90
25 feet	90
50 feet	90
75 feet	90
100 feet	85
125 feet	80
150 feet	75
175 feet	70
200 feet	55
225 feet	55
250 feet	45
275 feet	35
Above 275 feet	Size Up for Optimal Performance
