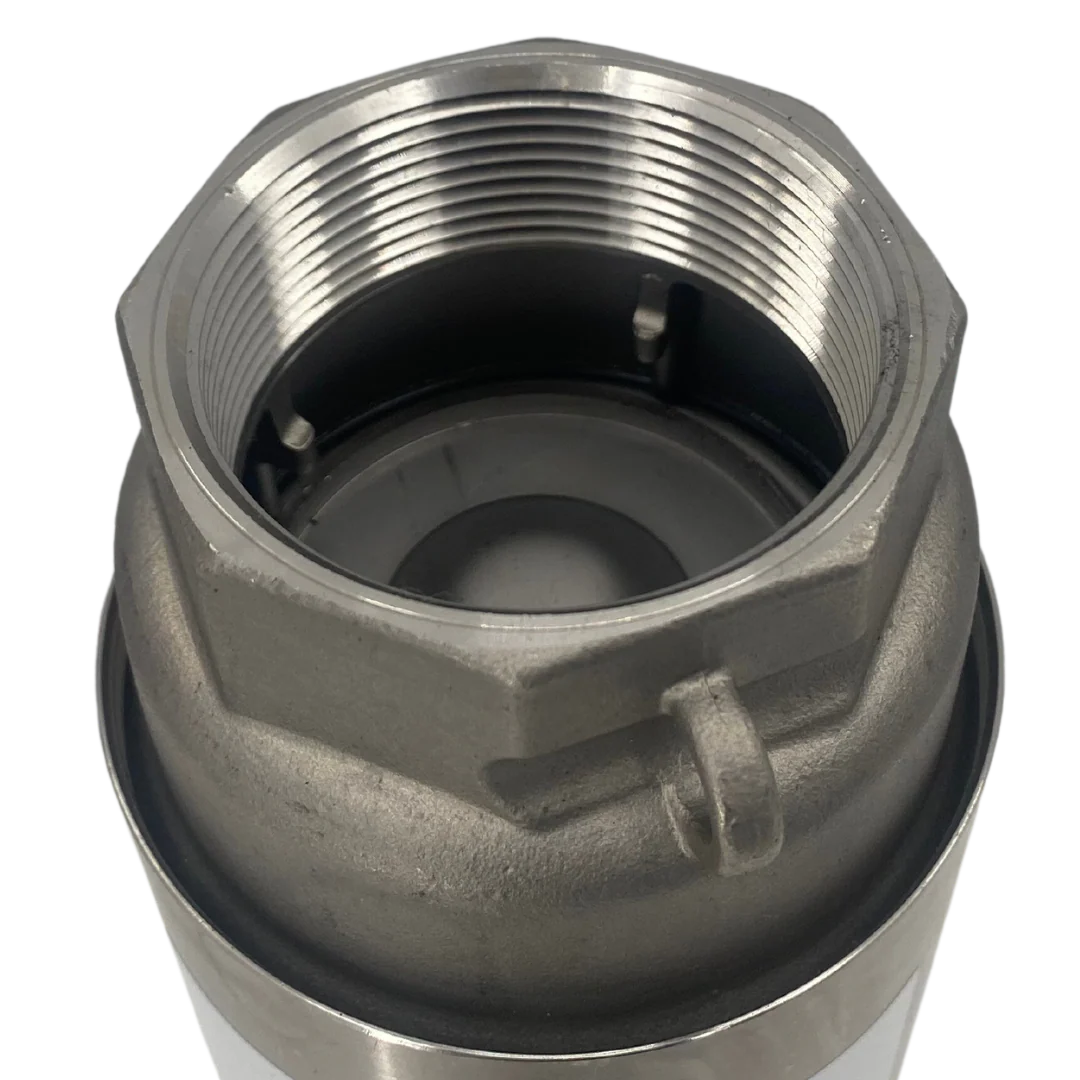

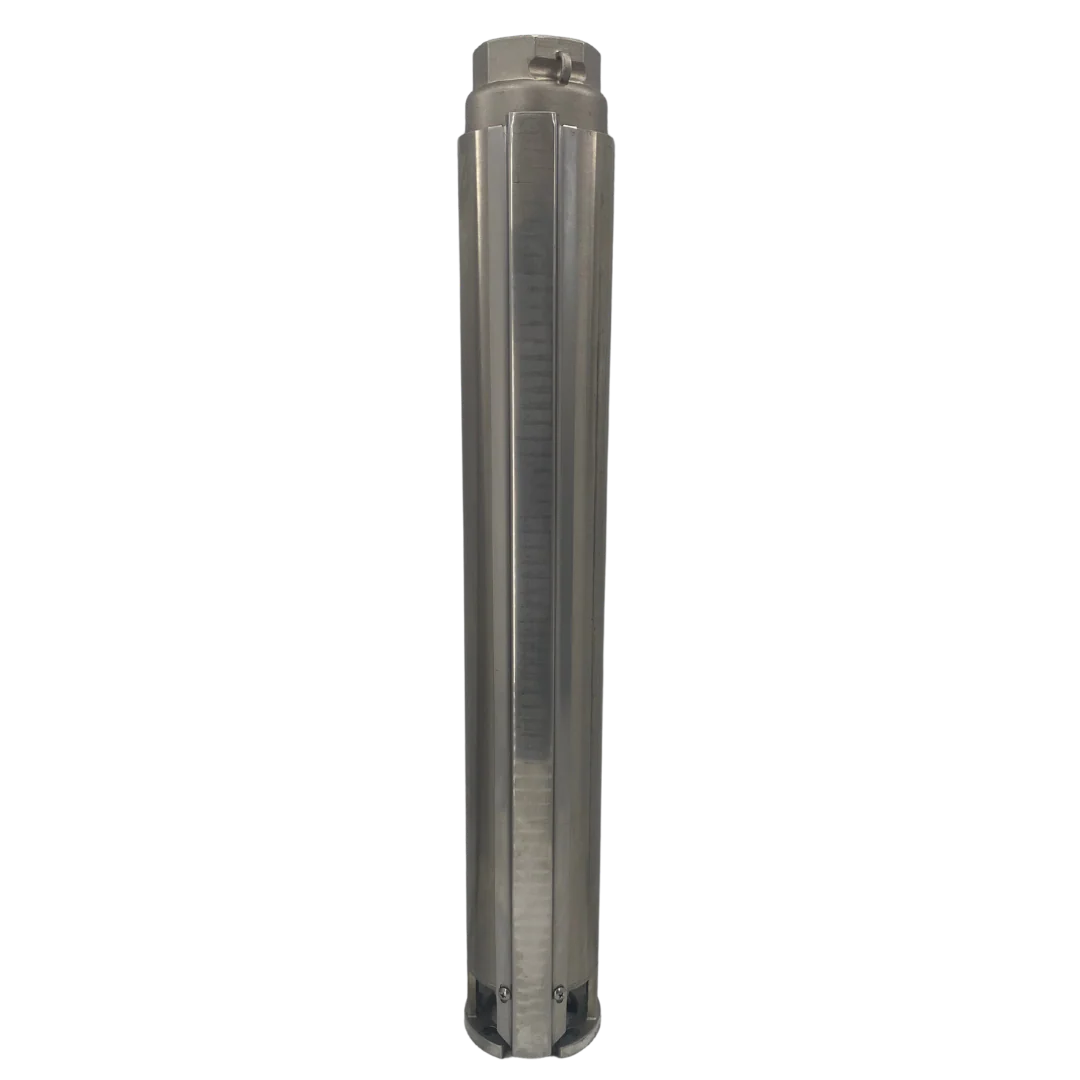

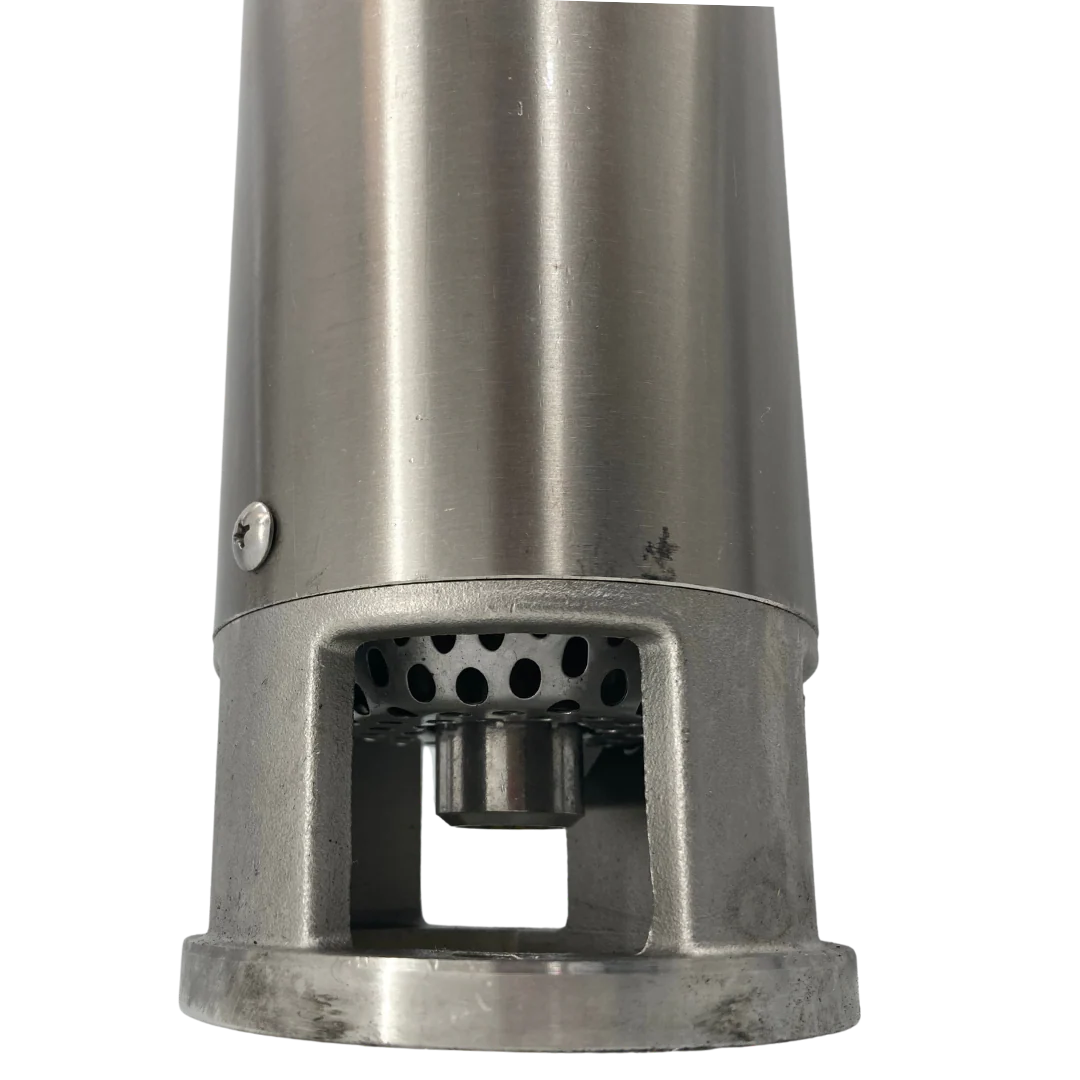

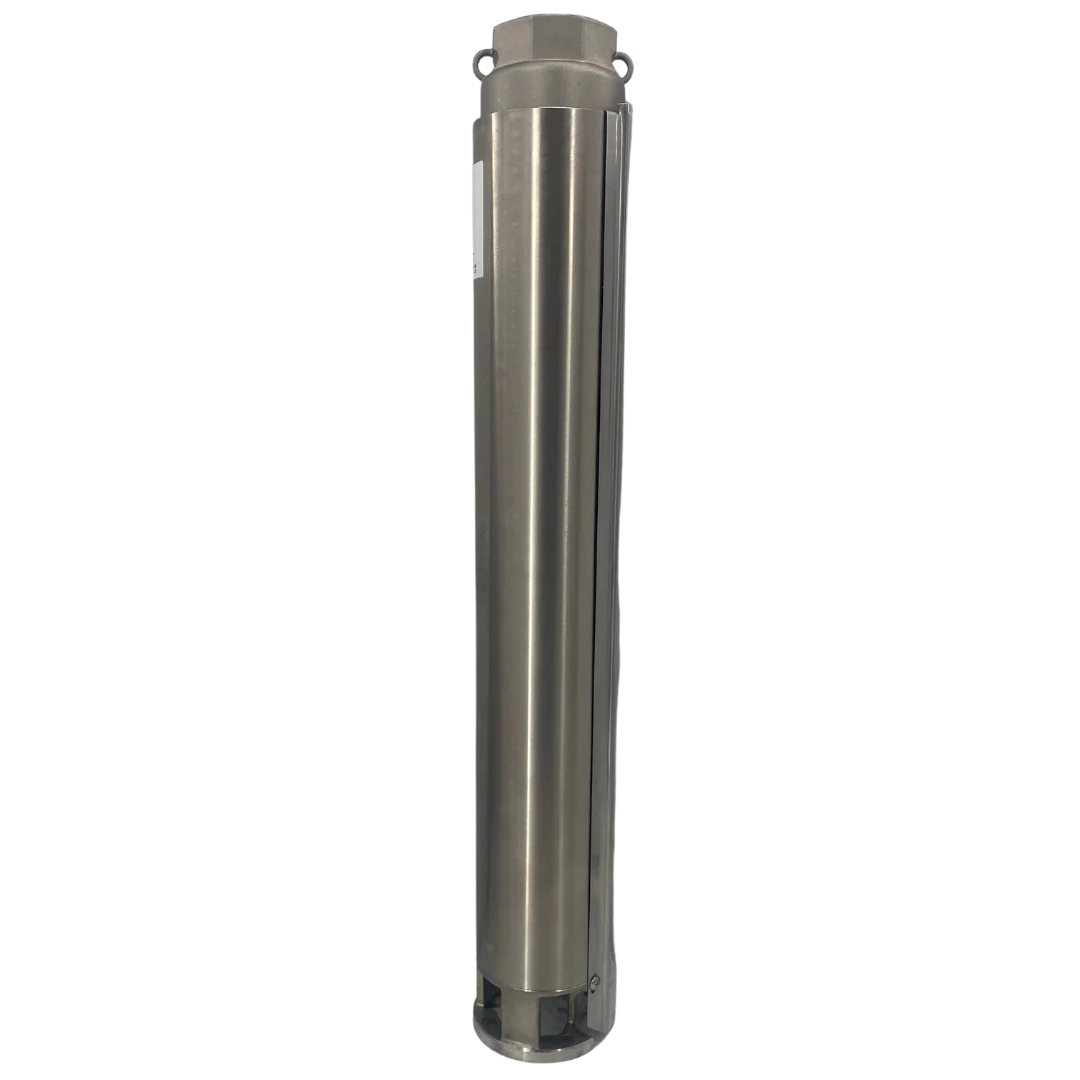

RPS Core Series 40RPS50 4" Submersible Pump End | Engineered Impeller | 24-66 GPM

A 24-66GPMGPM Pump End, made from hardy stainless steel construction. Paired with a 5HP motor end, shop RPS motor ends here.

Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.

RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.

✅  NSF Drinking Water and UL Compliant

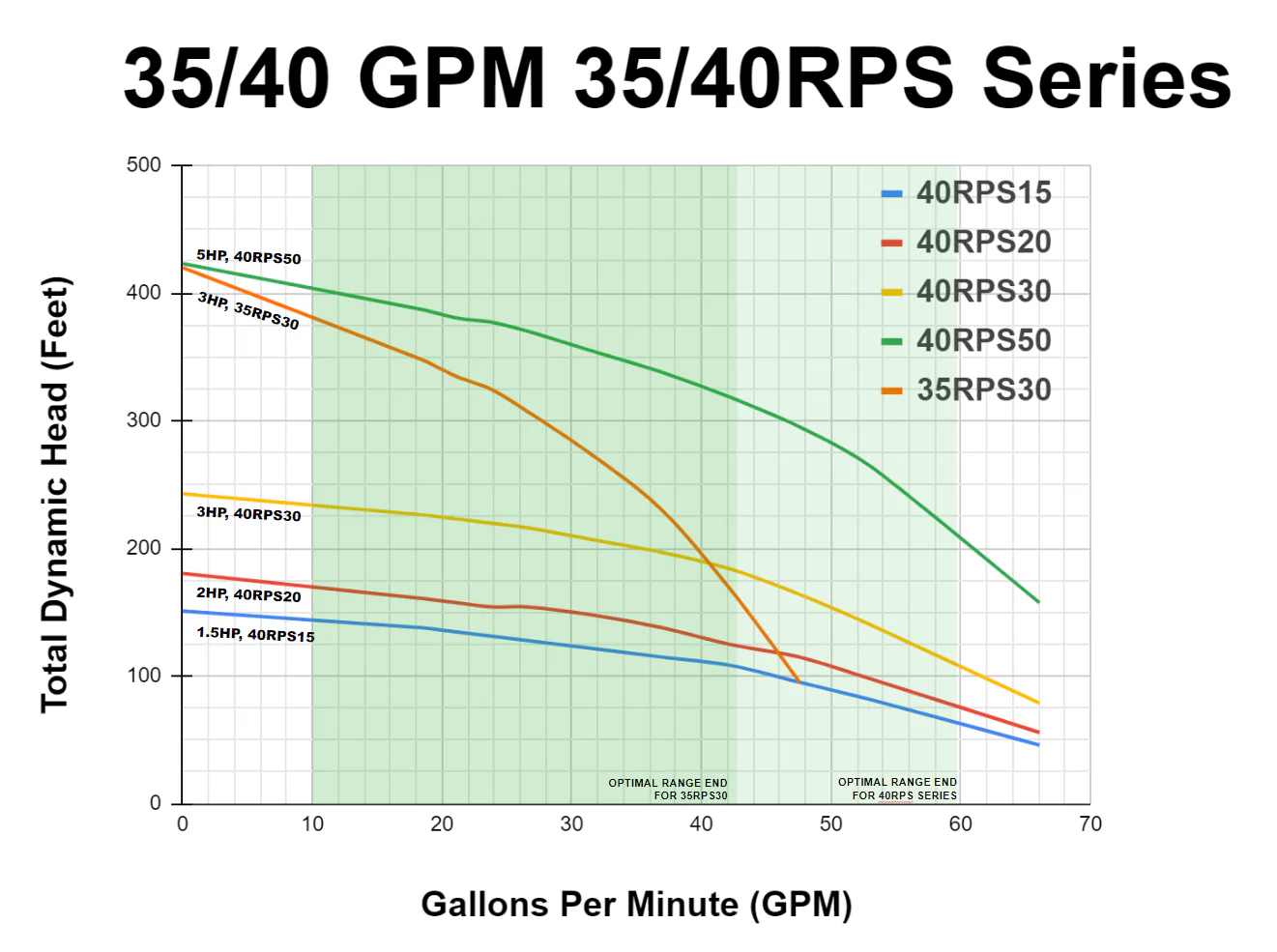

Total Head	Gallons Per Minute (GPM)
No head	66
25 feet	66
50 feet	66
75 feet	66
100 feet	66
125 feet	66
150 feet	66
175 feet	64
200 feet	60
225 feet	58
250 feet	54
275 feet	50
300 feet	46
325 feet	40
350 feet	32
375 feet	24
Above 375 feet	Size Up for Optimal Performance
