RPS 5 HP 230RPS50, Up to 100ft Head, 119 to 317GPM, Deep Well Submersible Pump End + 5HP 220V Motor + Starter Box

230RPS series pumps are designed for high flow applications of 230 GPM or under. They can be self-installed or placed using a local installer. At 50 feet of head the 230RPS50 will pump 230 GPM! 3" FNPT Outlet.

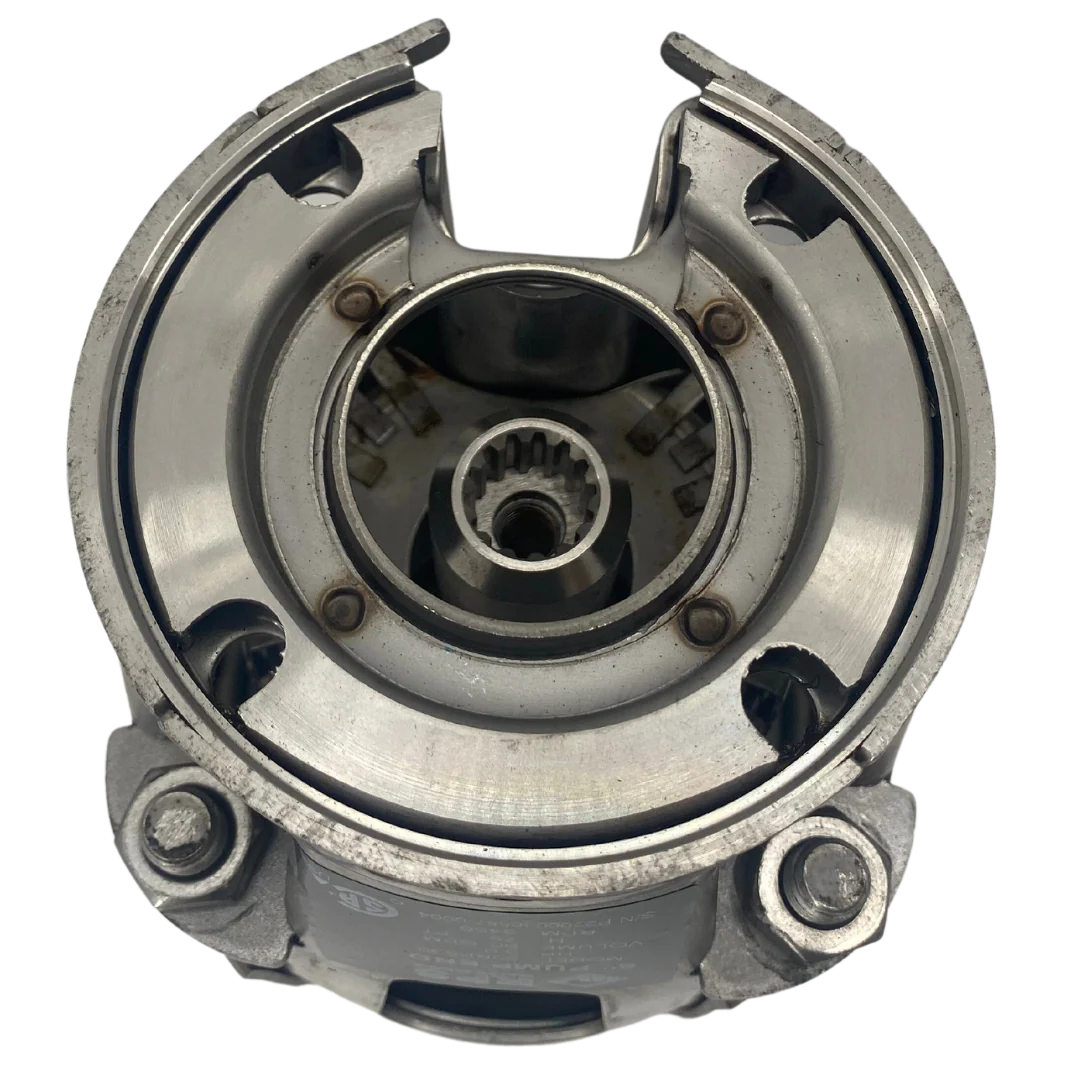

This RPS pump uses a hearty 3 Wire Single Phase 5HP Motor and 5.74″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.

RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.

Outlet size: 3"

✅  NSF Drinking Water and UL Compliant

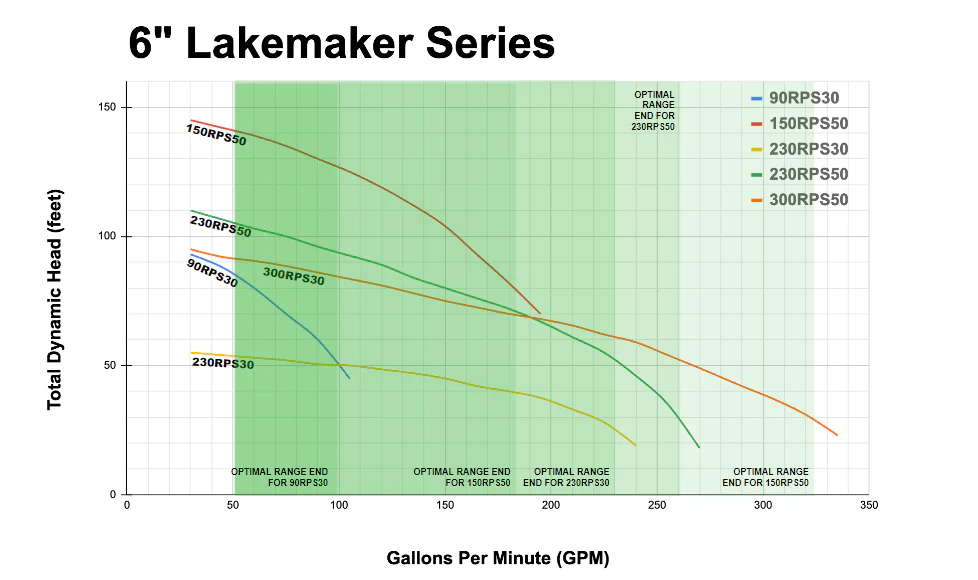

Total Head	Gallons Per Minute (GPM)
No head	270
10 feet	270
20 feet	270
30 feet	260
40 feet	250
50 feet	230
60 feet	210
70 feet	190
80 feet	150
90 feet	110
100 feet	70
Above 100 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!

Need more water? Check out the other RPS high volume submersible pumps!
