RPS 5HP 150RPS50, Up to 120ft Head, 120 to 195GPM, 5HP Submersible Pump End + 5HP 220V Motor + Starter Box

150RPS series pumps are designed for high flow applications of 150 GPM or under. They can be self-installed or placed using a local installer. At 45 feet of head the 150RPS50 will pump 150 GPM! 3" FNPT Outlet.

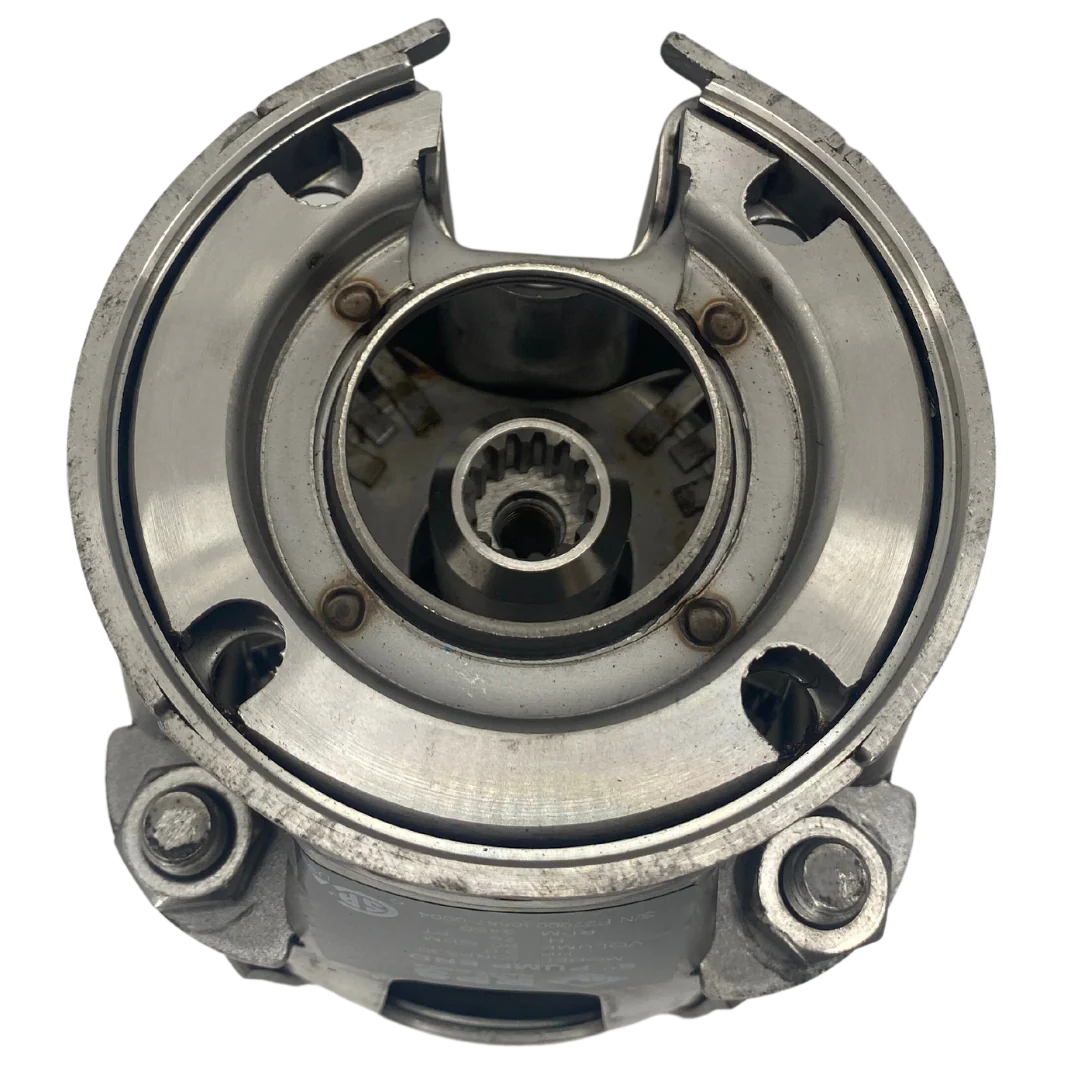

This RPS pump uses a hearty 3 Wire Single Phase 5HP Motor and 5.74″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.

RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.

Outlet size: 3"

✅  NSF Drinking Water and UL Compliant

Total Head	Gallons Per Minute (GPM)
No head	195
10 feet	195
20 feet	195
30 feet	195
40 feet	195
50 feet	195
60 feet	195
70 feet	195
80 feet	180
90 feet	168
100 feet	155
110 feet	140
120 feet	116
130 feet	90
Above 140 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!

Need more water? Check out the other RPS high volume submersible pumps!
