Stainless Steel Well Seal Assembly
YOUR PUMP IS STAINLESS - THE WELL SEAL SHOULD BE TOO
RPS engineers wanted to improve on the typical cast iron or plastic well seal, we listened to our customers' feedback and recognized the need for a well seal that lasts for the life of the well. So the stainless steel well seal was born! Unlike other well seals that rust within 10-20 years and can cause damage to your well system. You won't have to worry about the costly and dangerous process of removing part of your well casing just to replace a rusted-out seal. Made of high quality 304 stainless steel. Absolutely no UV degradation, compare to PVC. High weight load capacity - perfect for hanging submersible pumps in deep wells.
Available with 1" for 1 1/4" Stainless Barbed insert down hole for Poly Pipe Connections. Plumbing through well seal is 1.25". Threaded Tee / Elbow outlet is 1.25". Easy to neck down or bump up to larger diameters for above ground piping.
Includes..
Stainless Well Seal
Stainless Threaded Coupler
Stainless Threaded Tee or Elbow
Stainless Coupler (or reducer for 1" barb selection)
Stainless Hex Plug 1.25"
Stainless Hose Clamps
Stainless Hose Barb 1.25"
Info On Well Seals

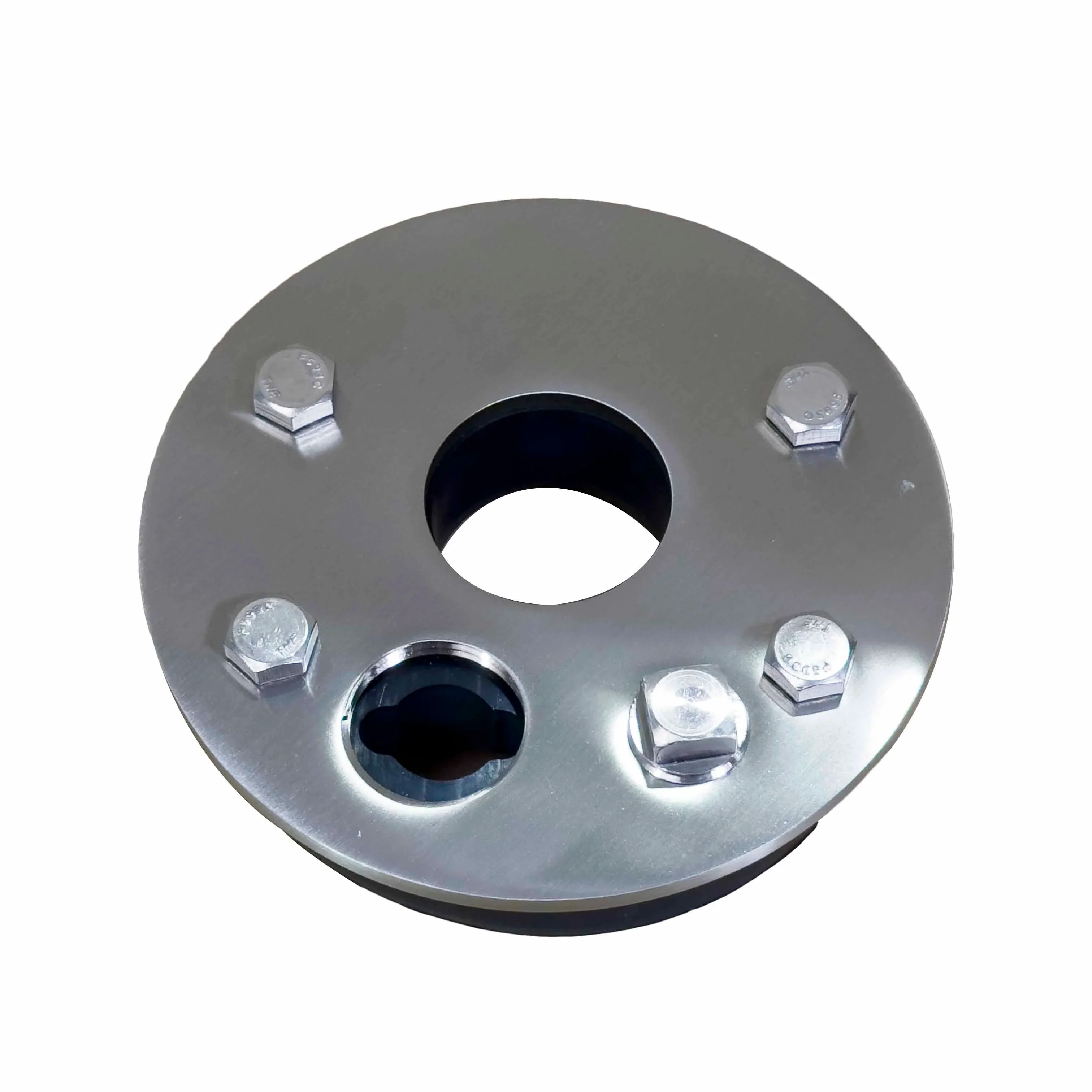

- Auxiliary hole for wiring

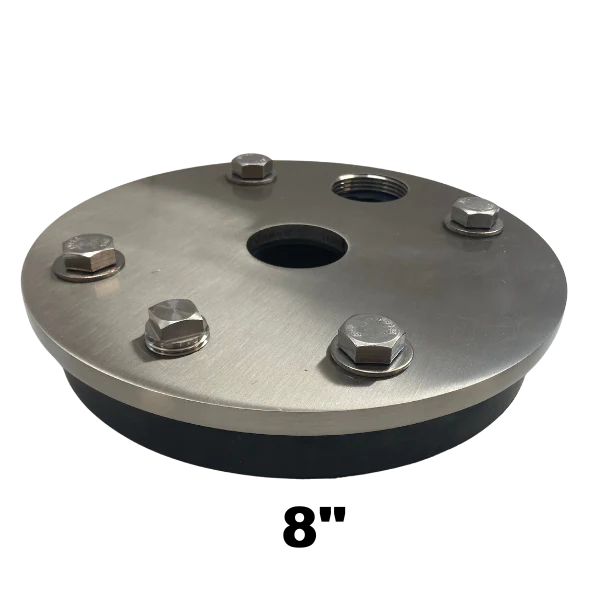

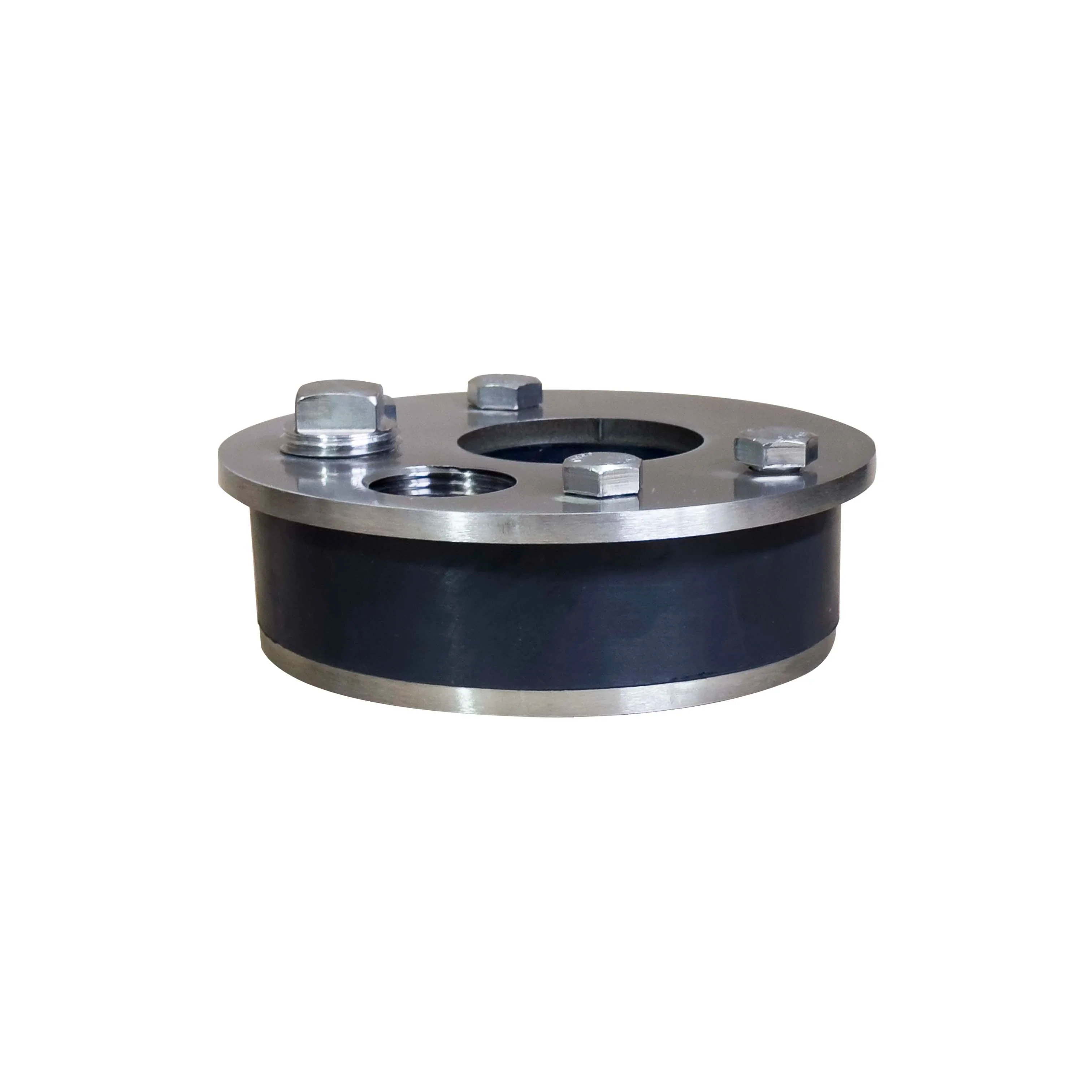

- Rubber gasket expands for tight fit
- Compatible with 1" to 1-1/4" drop pipe

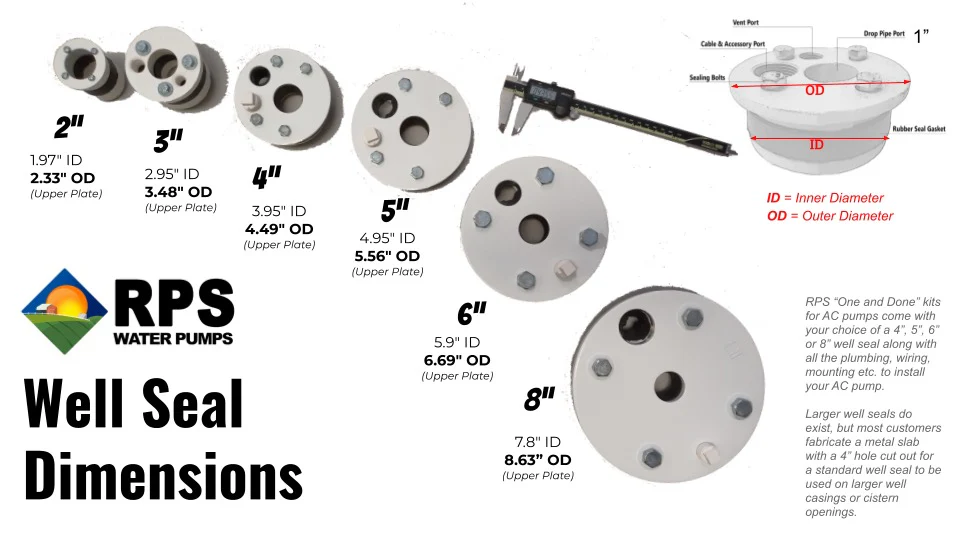

SEE BELOW FOR HELP WITH SIZING

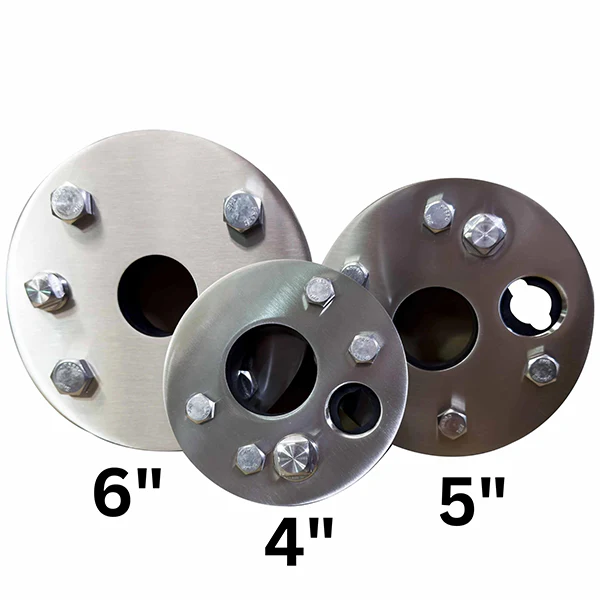

4" well seal: 1-1/4"* main through hole, 3/4" NPT auxiliary conduit hole, 1/2" NPT vent
5" well seal: 1-1/4"* main through hole, 1" NPT auxiliary conduit hole, 1/2" NPT vent
6" well seal: 1-1/4"* main through hole, 1" NPT auxiliary conduit hole, 1/2" NPT vent
8" well seal: 1-1/4"* main through hole, 1" NPT auxiliary conduit hole, 1/2" NPT vent
*For 1-1/4" plumbing, actual diameter opening 1.70". Use reducing couplers when using 1in drop pipe.

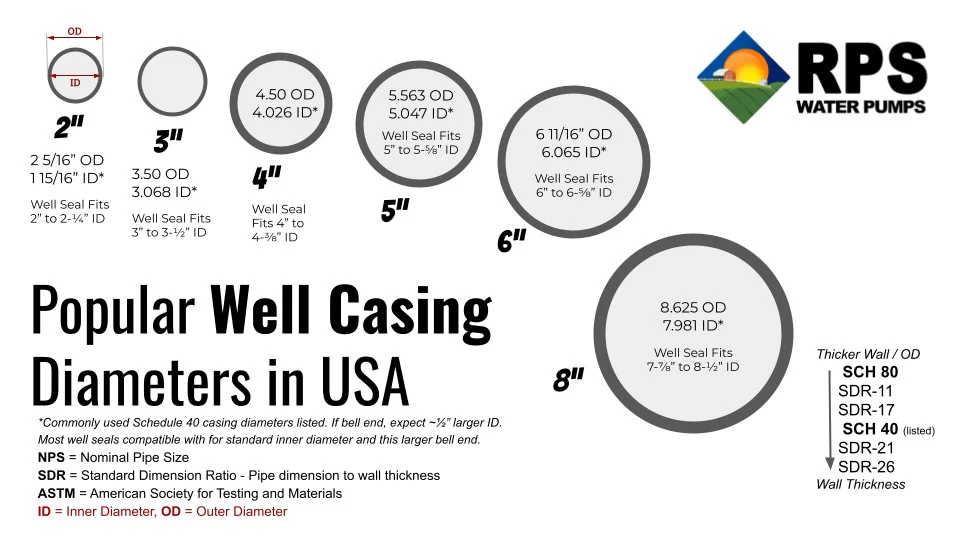

Note on Varying Well Casing Sizes
Depending on the material of lining used, varying pipe sizes and the age of the well our engineers have observed that all 6" wells sometimes do not all have the exact same measurements. This holds true for 4", 5" and 8" wells too. A 2-year-old 6" well in Indiana may not have the exact same measurements as a 6" 65-year-old well in Texas. Not to worry! The black gasket around the bottom of RPS stainless steel well seals will swell with exposure to water to help seal off slight inconsistencies in measurements. In rare cases, you can also add some foam tape around the gasket for a more exact fit on wells with "unique" measurements. And as long as the lip of the well seal is sitting over the well casing, you well pump will be safely supported.
Not Ideal For Artesian WellsStandard well seals aren’t fully watertight under artesian pressure — choose a pressure-rated cap and proper grouting to protect your well.
