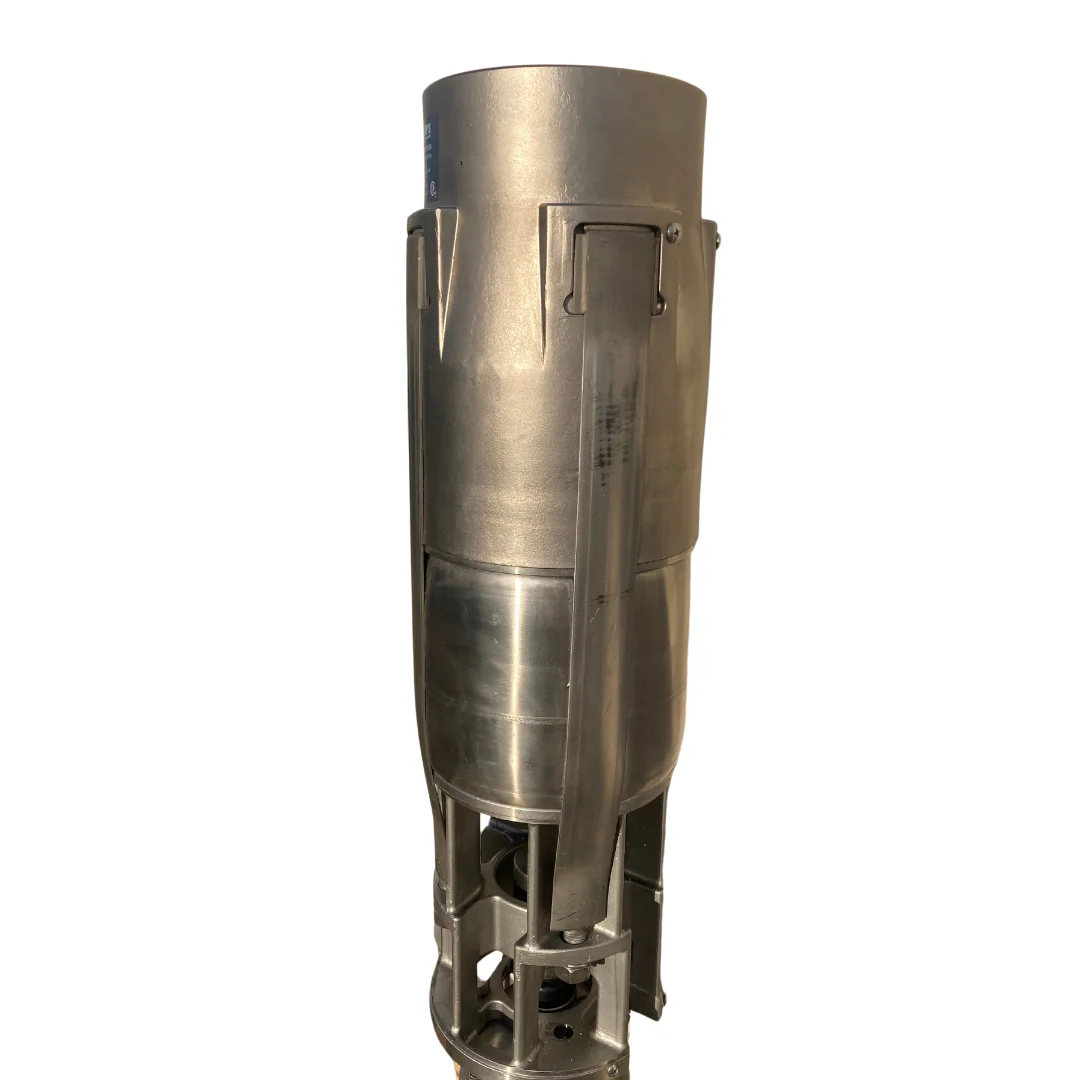

RPS 20HP 480V 800RPS200, Up to 90FT Head, 400 to 1,030GPM, Stainless Steel Submersible Pump End + Motor

The RPS Steel Flow line of pumps is perfect for any industrial, agriculture, pond or orchard project needing high gallon per minute flow rates. Pumps are fully stainless steel.

✅  NSF Drinking Water and UL Compliant

Includes...

• 20HP Three phase, 480V, 3 wire (3+G), 6" Diameter Motor End

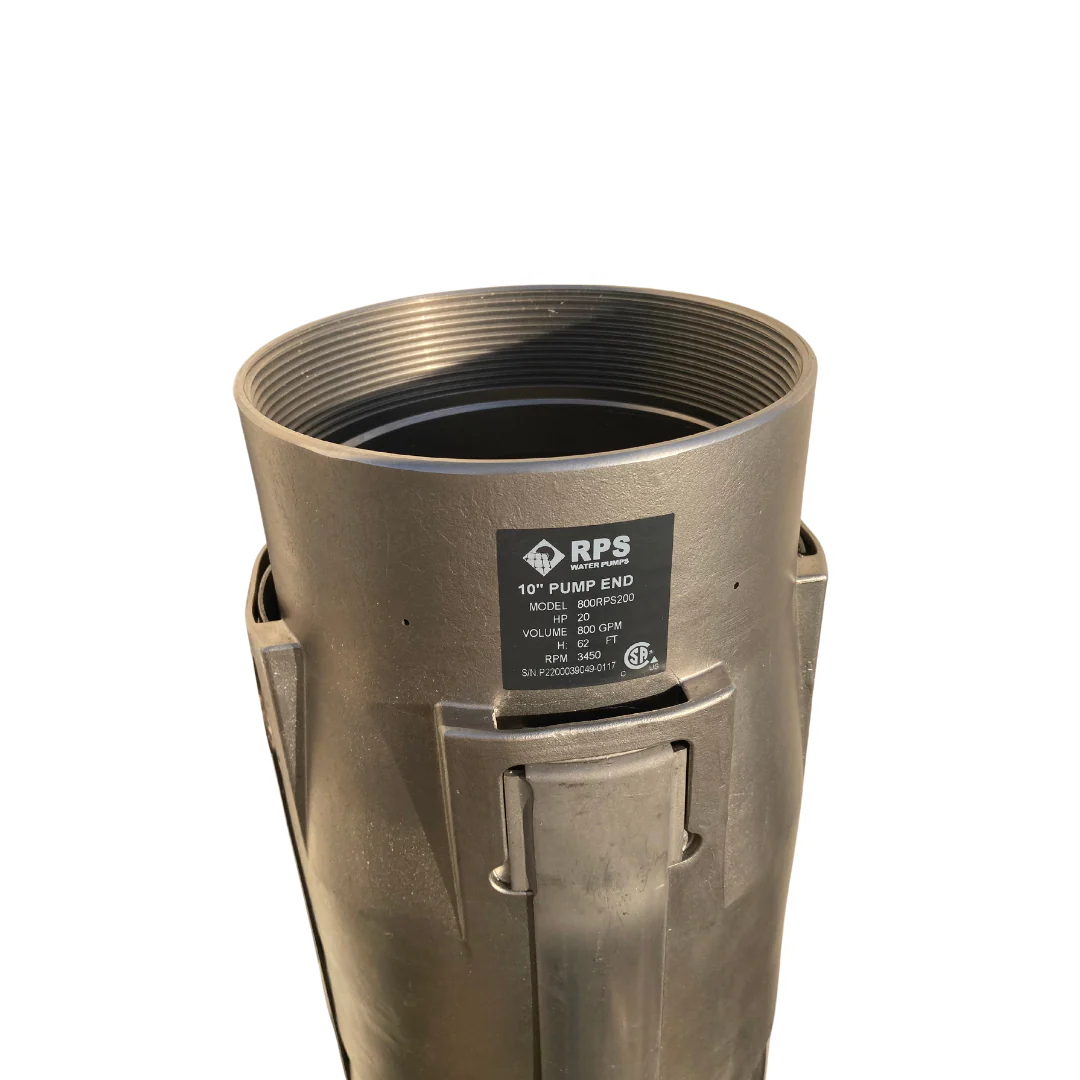

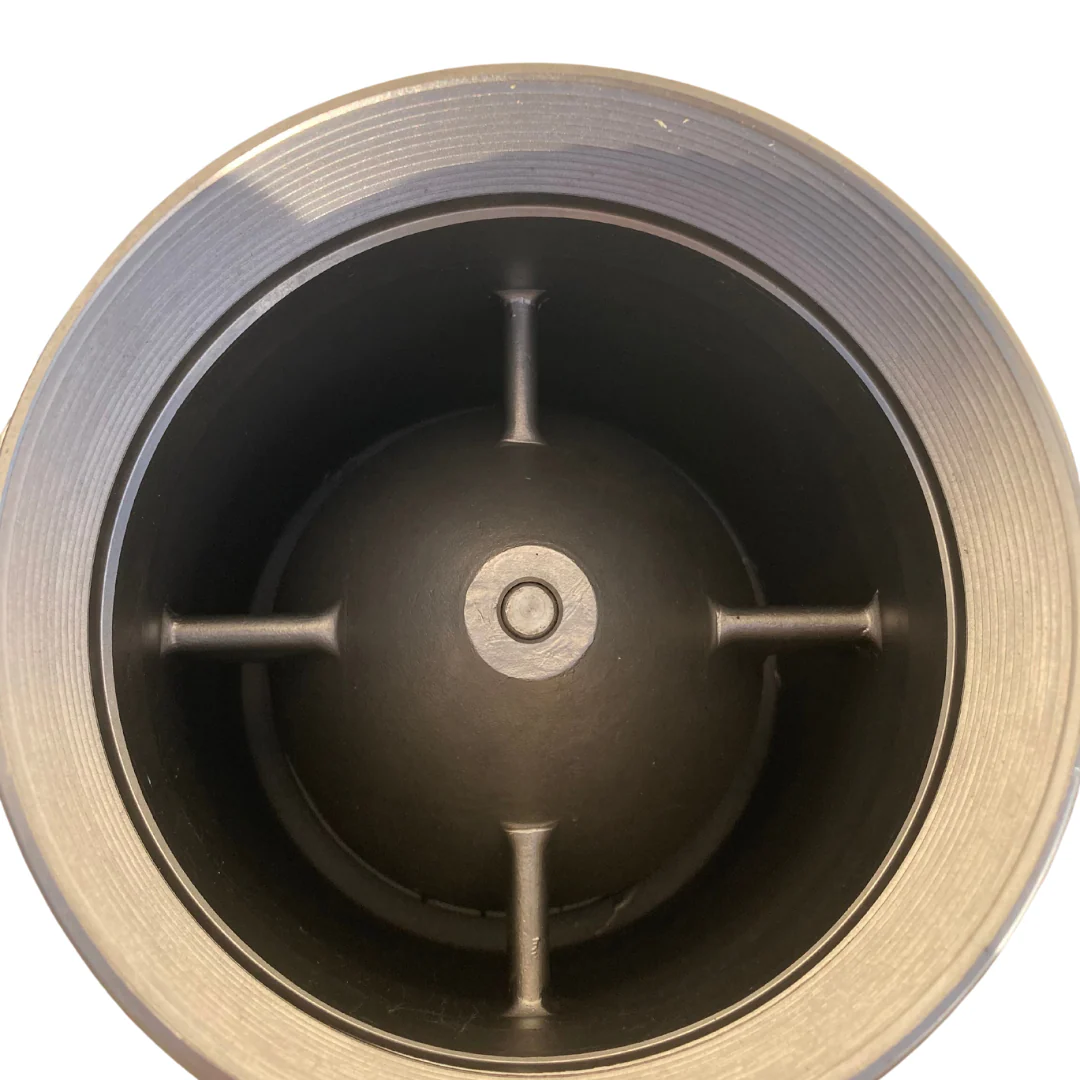

• 6" outlet 800RPS200 400-1,030GPM Pump End, 10" Outside Diameter

• 3 Wire (3 Hot + Ground) w/ 6 foot pigtail of 10 gauge wire off the motor
• Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Special larger crimps are included to accommodate up to 8Ga wire. Wires are not pre-crimped.

Customer Supplied Magnetic Starter Box.

Total Head	Gallons Per Minute (GPM)
No head	1030
20 feet	1030
30 feet	1030
40 feet	975
50 feet	912
60 feet	800
70 feet	702
80 feet	555
90 feet	400
Above 90 feet	Size Up for Optimal Performance
