RPS Core Series 1/2 HP 110V, 2-Wire | 4" Submersible Well Pump + Engineered Impeller | 250 ft Head, 4–8 GPM | 05RPS05 Complete Kit
RPS Core Series 1/2 HP 110V, 2-Wire | 4" Submersible Well Pump + Engineered Impeller | 250 ft Head, 4–8 GPM | 05RPS05 Complete Kit
You're looking at a pump end that's keeping water flowing across thousands of American farms, ranches, and homesteads.
The RPS Core Series 05RPS05 is a 5 GPM submersible water pump end built for everyday reliability in household wells, agricultural operations, irrigation systems, and even industrial use. Rated up to 250 feet of total head and built for continuous duty, it easily handles the demands that rural water systems require, day in and day out. Pair with a pressure tank - but make sure to size with an RPS Pump Specialist first (855) 560-5670.

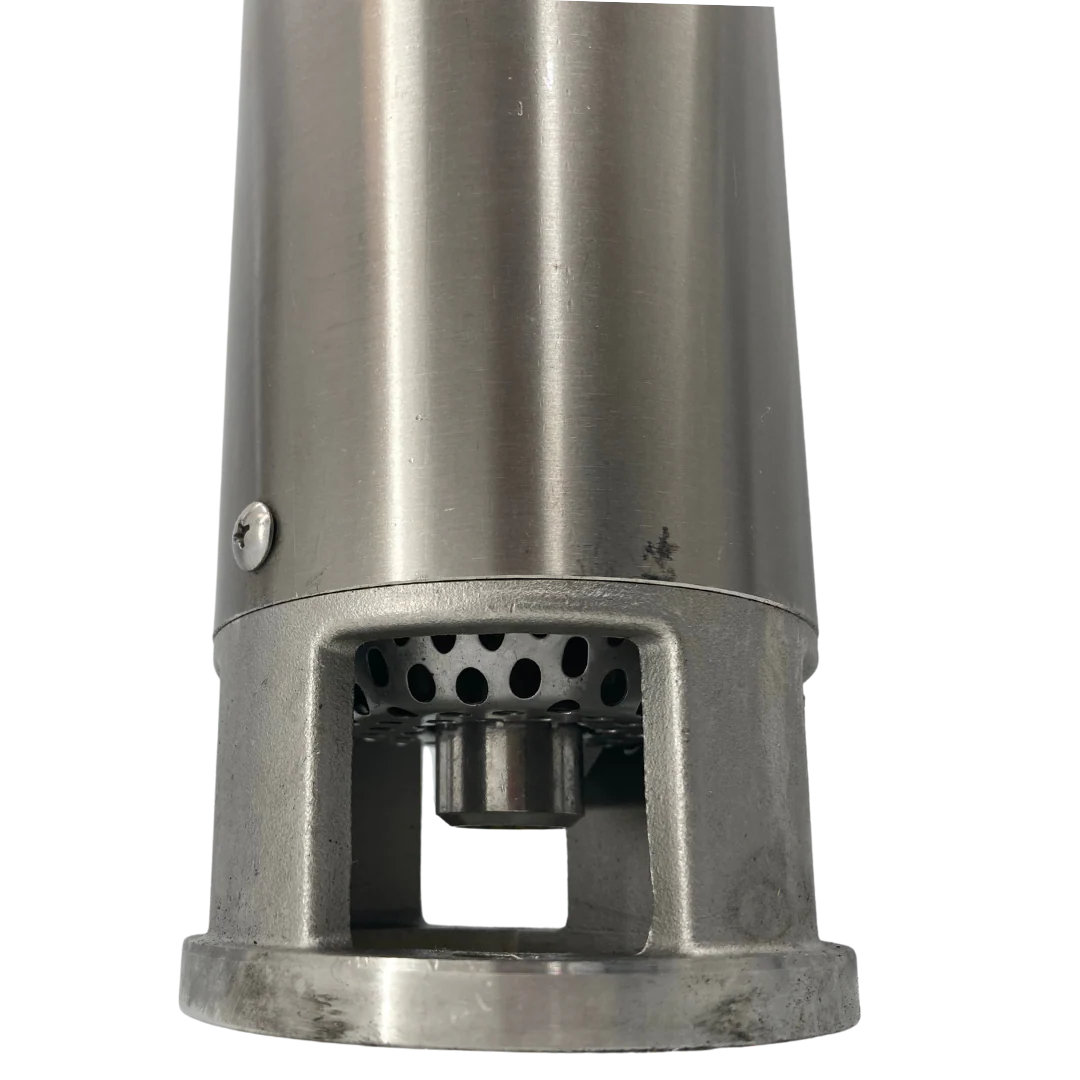

Constructed with a 304 stainless steel outer body and engineered composite impellers, the Core Series gives you serious durability at a price point that makes sense.
NSF Drinking Water Certified and UL Listed — built to the highest standards so the water reaching your family, your livestock, and your crops is clean and safe. No cutting corners where it counts.

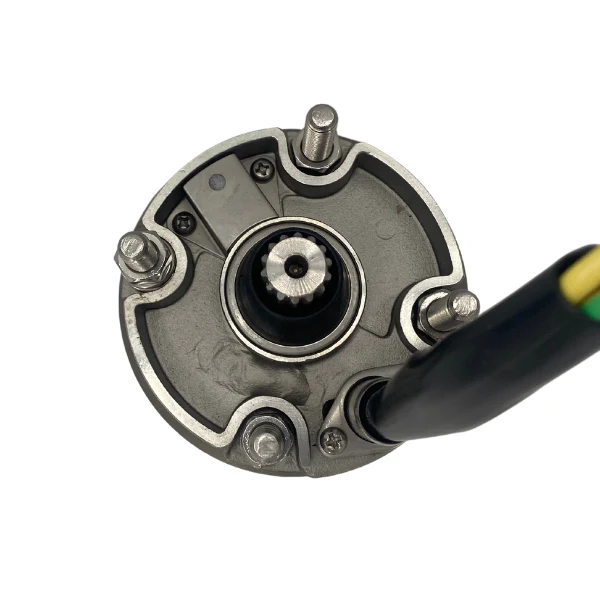

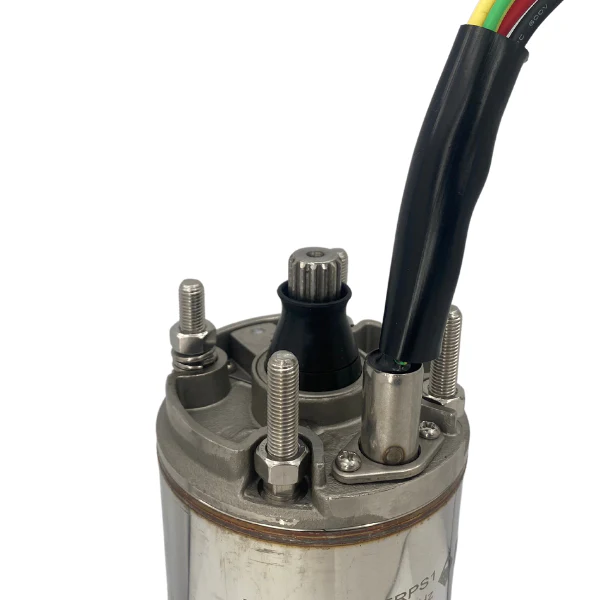

Works great pumping from wells, tanks, or ponds. This RPS pump kit includes a hearty 2 Wire Single Phase 1/2 HP 110V Motor with a brushless design, so you get years of reliable performance without having to replace carbon brushes. This Core Series kit does not include an external starter box, the starting capacitor is built directly into the motor housing. You'll wire directly from the pump to your breaker or switch.
If you're setting up a new well system, replacing a worn-out pump, or just want something that'll run for years without giving you trouble, the Core Series is where most folks start — and where a lot of them stay.
| Total Head | Gallons Per Minute (GPM) |
| No head | 8 |
| 50 feet | 8 |
| 100 feet | 7 |
| 150 feet | 6.5 |
| 200 feet | 5.5 |
| 250 feet | 4.5 |
| Above 250 feet | Size Up for Optimal Performance |
Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.
10 PSI = 23 feet of head
20 PSI = 46 feet of head
30 PSI = 70 feet of head
40 PSI = 90 feet of head
50 PSI = 115 feet of head
60 PSI = 140 feet of head
Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
Need more water? Check out the other 05RPS Series Models!
Original: $849.99
-65%$849.99
$297.50More Images
RPS Core Series 1/2 HP 110V, 2-Wire | 4" Submersible Well Pump + Engineered Impeller | 250 ft Head, 4–8 GPM | 05RPS05 Complete Kit
You're looking at a pump end that's keeping water flowing across thousands of American farms, ranches, and homesteads.
The RPS Core Series 05RPS05 is a 5 GPM submersible water pump end built for everyday reliability in household wells, agricultural operations, irrigation systems, and even industrial use. Rated up to 250 feet of total head and built for continuous duty, it easily handles the demands that rural water systems require, day in and day out. Pair with a pressure tank - but make sure to size with an RPS Pump Specialist first (855) 560-5670.
Constructed with a 304 stainless steel outer body and engineered composite impellers, the Core Series gives you serious durability at a price point that makes sense.
NSF Drinking Water Certified and UL Listed — built to the highest standards so the water reaching your family, your livestock, and your crops is clean and safe. No cutting corners where it counts.
Works great pumping from wells, tanks, or ponds. This RPS pump kit includes a hearty 2 Wire Single Phase 1/2 HP 110V Motor with a brushless design, so you get years of reliable performance without having to replace carbon brushes. This Core Series kit does not include an external starter box, the starting capacitor is built directly into the motor housing. You'll wire directly from the pump to your breaker or switch.
If you're setting up a new well system, replacing a worn-out pump, or just want something that'll run for years without giving you trouble, the Core Series is where most folks start — and where a lot of them stay.
| Total Head | Gallons Per Minute (GPM) |
| No head | 8 |
| 50 feet | 8 |
| 100 feet | 7 |
| 150 feet | 6.5 |
| 200 feet | 5.5 |
| 250 feet | 4.5 |
| Above 250 feet | Size Up for Optimal Performance |
Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.
10 PSI = 23 feet of head
20 PSI = 46 feet of head
30 PSI = 70 feet of head
40 PSI = 90 feet of head
50 PSI = 115 feet of head
60 PSI = 140 feet of head
Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
Need more water? Check out the other 05RPS Series Models!
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
You're looking at a pump end that's keeping water flowing across thousands of American farms, ranches, and homesteads.
The RPS Core Series 05RPS05 is a 5 GPM submersible water pump end built for everyday reliability in household wells, agricultural operations, irrigation systems, and even industrial use. Rated up to 250 feet of total head and built for continuous duty, it easily handles the demands that rural water systems require, day in and day out. Pair with a pressure tank - but make sure to size with an RPS Pump Specialist first (855) 560-5670.
Constructed with a 304 stainless steel outer body and engineered composite impellers, the Core Series gives you serious durability at a price point that makes sense.
NSF Drinking Water Certified and UL Listed — built to the highest standards so the water reaching your family, your livestock, and your crops is clean and safe. No cutting corners where it counts.
Works great pumping from wells, tanks, or ponds. This RPS pump kit includes a hearty 2 Wire Single Phase 1/2 HP 110V Motor with a brushless design, so you get years of reliable performance without having to replace carbon brushes. This Core Series kit does not include an external starter box, the starting capacitor is built directly into the motor housing. You'll wire directly from the pump to your breaker or switch.
If you're setting up a new well system, replacing a worn-out pump, or just want something that'll run for years without giving you trouble, the Core Series is where most folks start — and where a lot of them stay.
| Total Head | Gallons Per Minute (GPM) |
| No head | 8 |
| 50 feet | 8 |
| 100 feet | 7 |
| 150 feet | 6.5 |
| 200 feet | 5.5 |
| 250 feet | 4.5 |
| Above 250 feet | Size Up for Optimal Performance |
Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.
10 PSI = 23 feet of head
20 PSI = 46 feet of head
30 PSI = 70 feet of head
40 PSI = 90 feet of head
50 PSI = 115 feet of head
60 PSI = 140 feet of head
Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
Need more water? Check out the other 05RPS Series Models!
