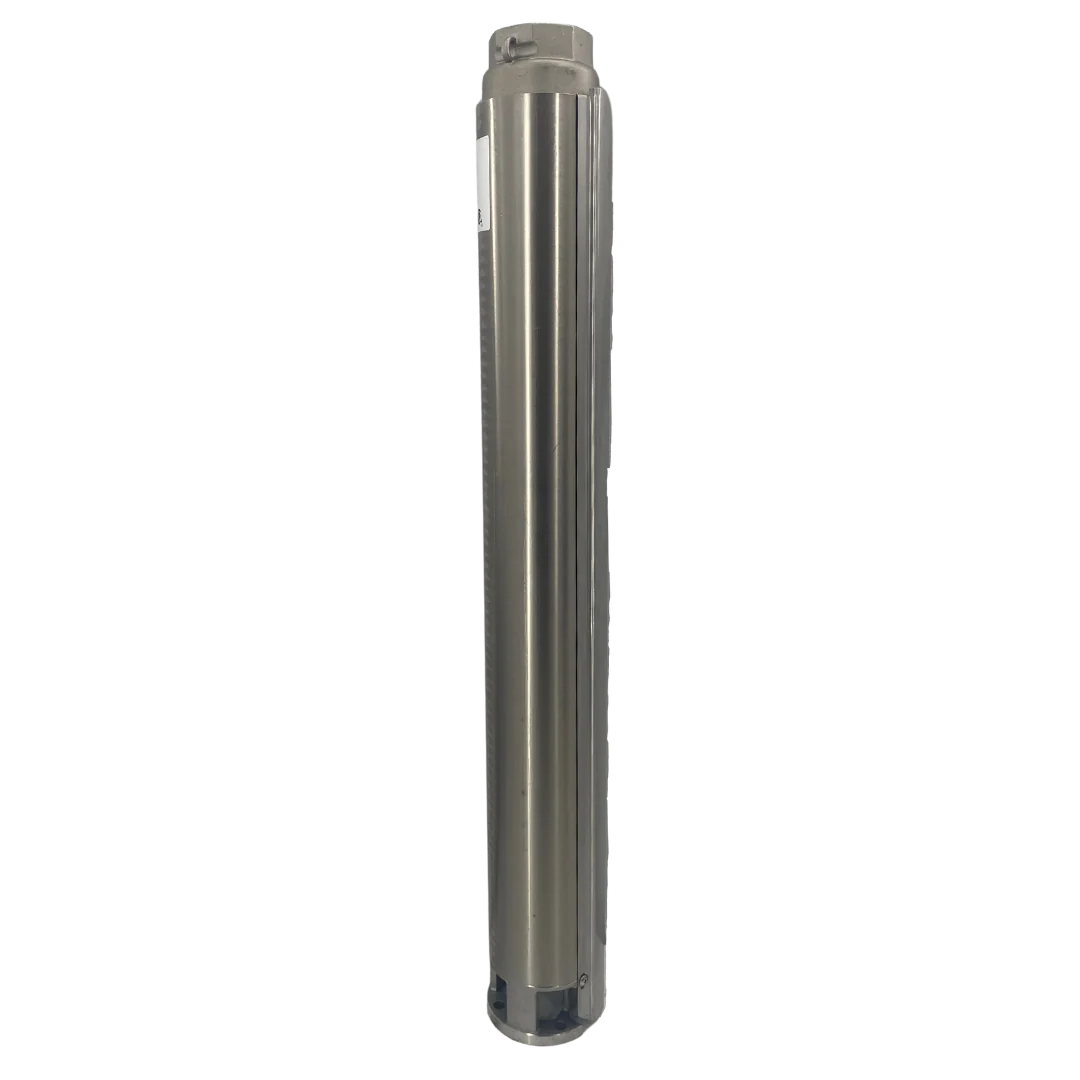

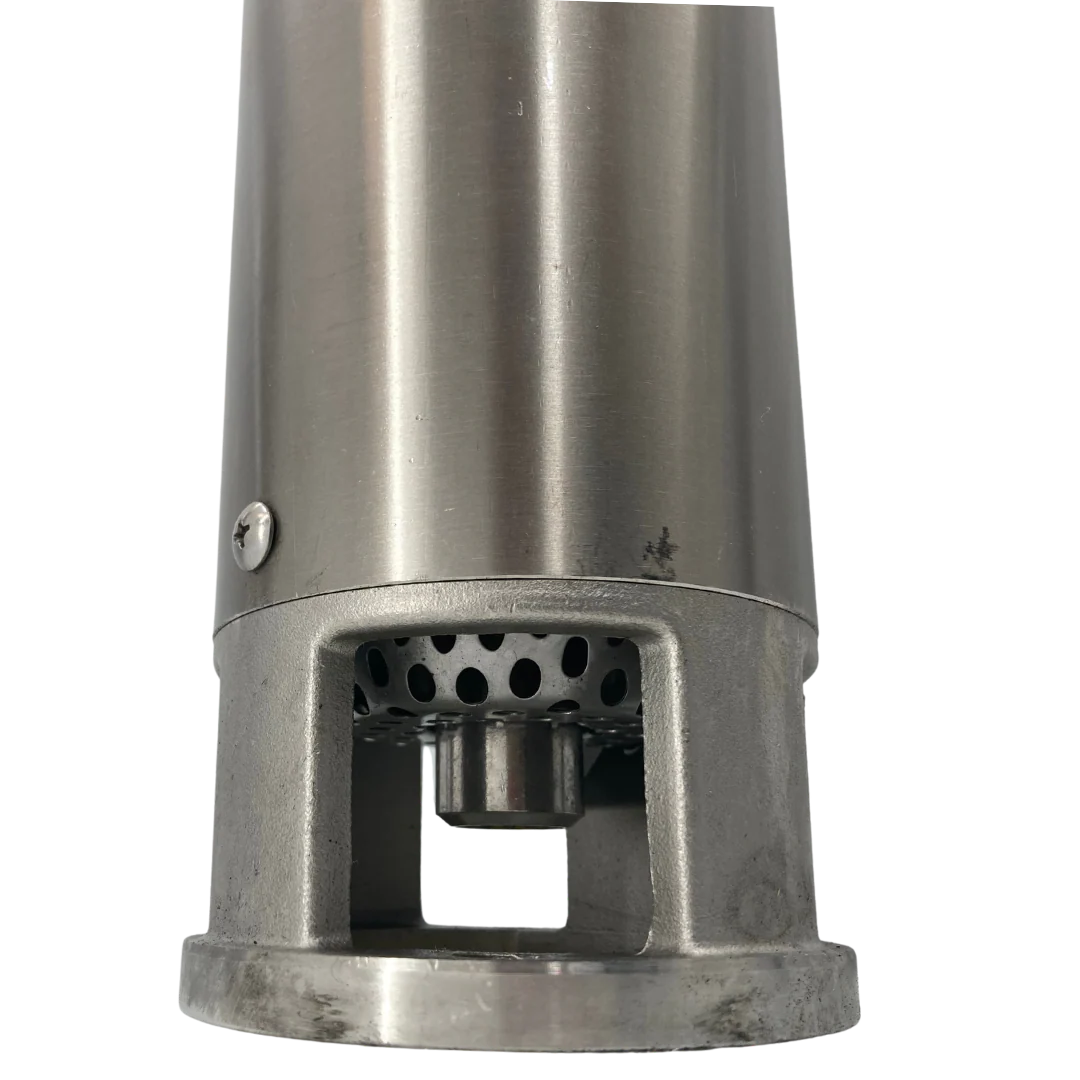

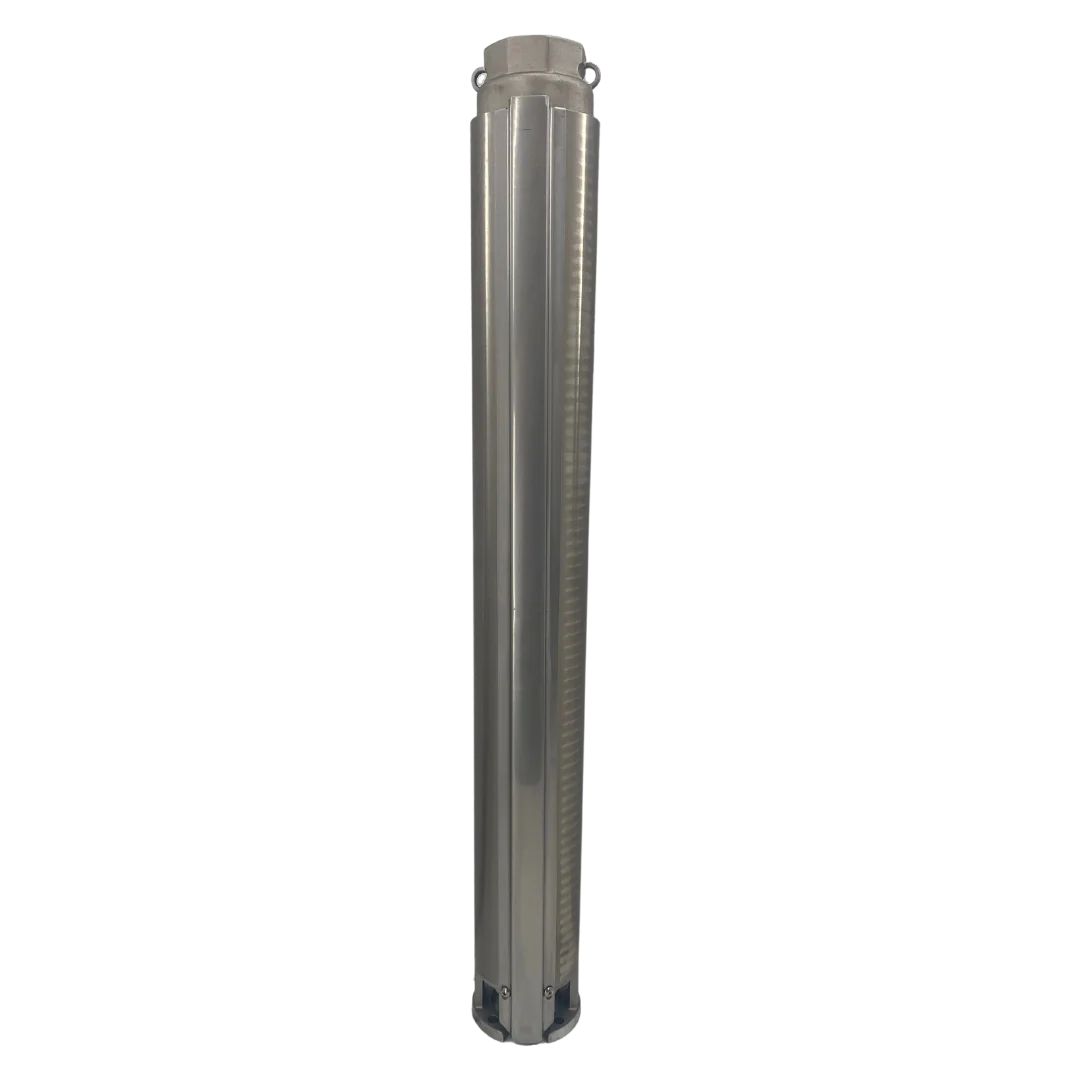

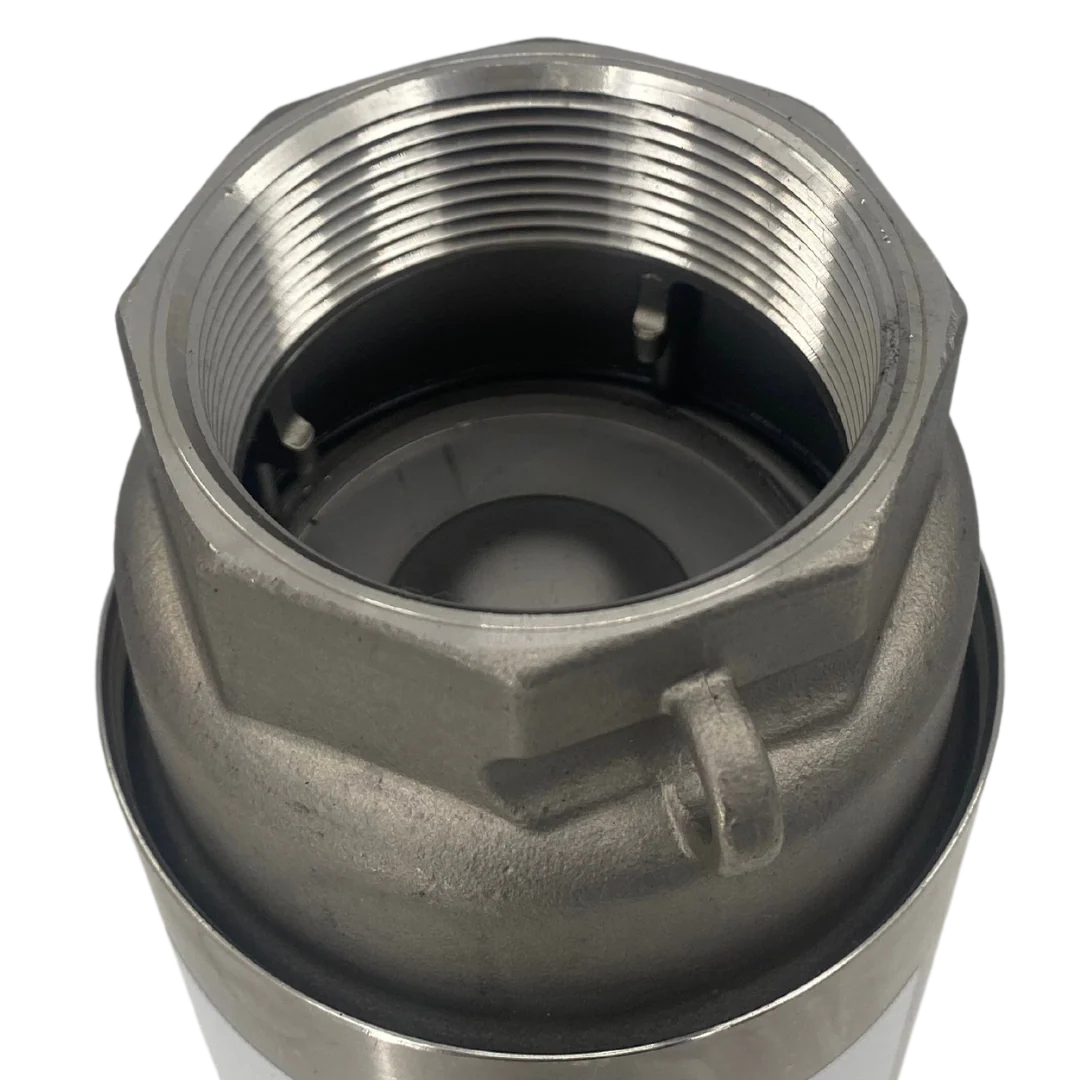

RPS Core Series 80RPS50 4" Submersible Pump End | Engineered Impeller | 35-120 GPM
A 35-120GPM Pump End, made from hardy stainless steel construction. Paired with a 5HP motor end, shop RPS motor ends here.
Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.
RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.
✅ NSF Drinking Water and UL Compliant

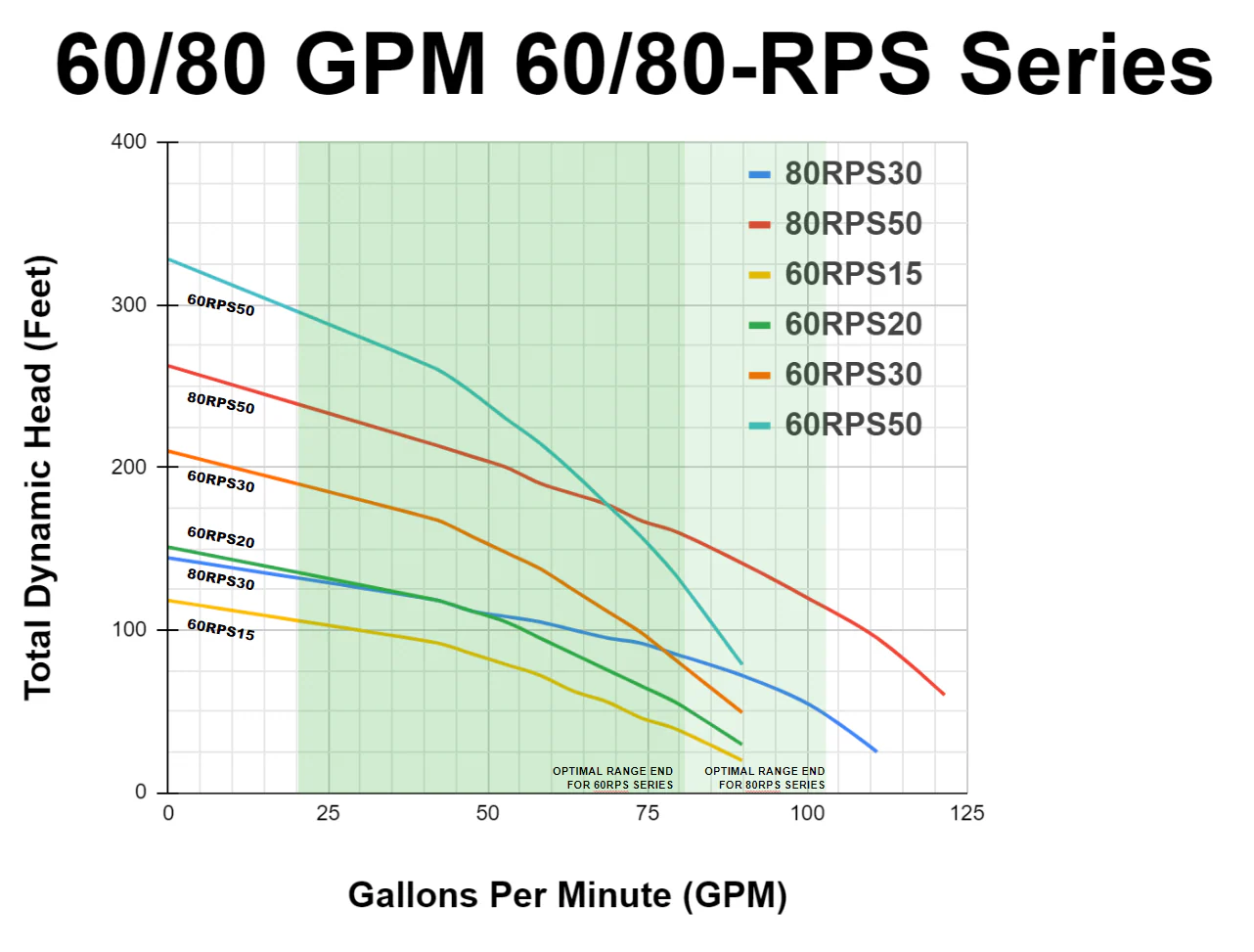

| Total Head | Gallons Per Minute (GPM) |
| No head | 120 |
| 25 feet | 120 |
| 50 feet | 120 |
| 75 feet | 115 |
| 100 feet | 110 |
| 125 feet | 95 |
| 150 feet | 85 |
| 175 feet | 70 |
| 200 feet | 60 |
| 225 feet | 55 |
| 250 feet | 45 |
| 275 feet | 35 |
| Above 275 feet | Size Up for Optimal Performance |
Original: $1,859.99
-65%$1,859.99
$651.00More Images
RPS Core Series 80RPS50 4" Submersible Pump End | Engineered Impeller | 35-120 GPM
A 35-120GPM Pump End, made from hardy stainless steel construction. Paired with a 5HP motor end, shop RPS motor ends here.
Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.
RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.
✅ NSF Drinking Water and UL Compliant
| Total Head | Gallons Per Minute (GPM) |
| No head | 120 |
| 25 feet | 120 |
| 50 feet | 120 |
| 75 feet | 115 |
| 100 feet | 110 |
| 125 feet | 95 |
| 150 feet | 85 |
| 175 feet | 70 |
| 200 feet | 60 |
| 225 feet | 55 |
| 250 feet | 45 |
| 275 feet | 35 |
| Above 275 feet | Size Up for Optimal Performance |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A 35-120GPM Pump End, made from hardy stainless steel construction. Paired with a 5HP motor end, shop RPS motor ends here.
Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.
RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.
✅ NSF Drinking Water and UL Compliant
| Total Head | Gallons Per Minute (GPM) |
| No head | 120 |
| 25 feet | 120 |
| 50 feet | 120 |
| 75 feet | 115 |
| 100 feet | 110 |
| 125 feet | 95 |
| 150 feet | 85 |
| 175 feet | 70 |
| 200 feet | 60 |
| 225 feet | 55 |
| 250 feet | 45 |
| 275 feet | 35 |
| Above 275 feet | Size Up for Optimal Performance |
