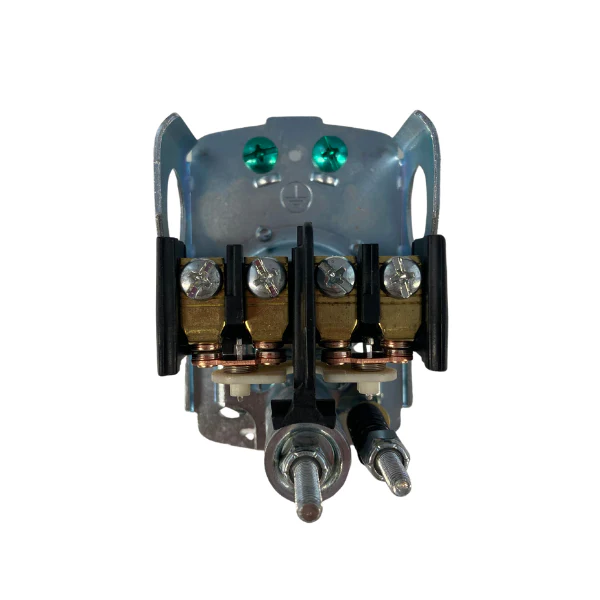

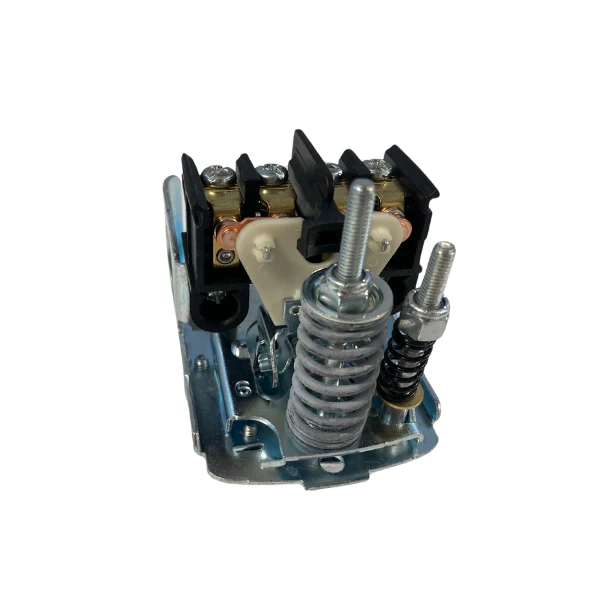

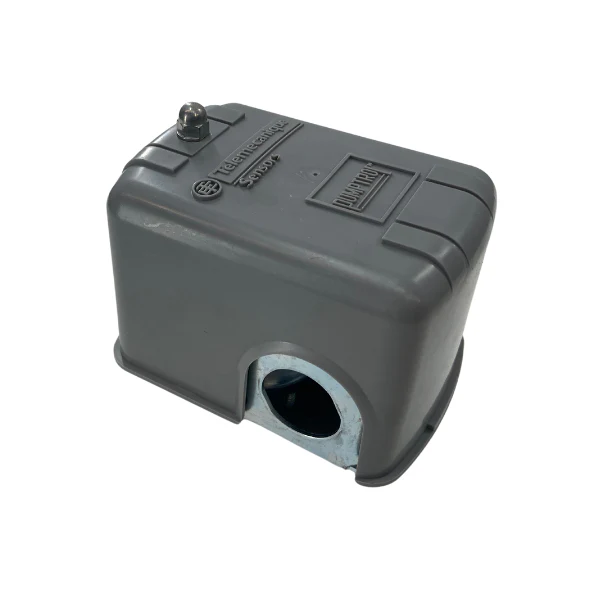

Pumptrol Pressure Switch for 110V or 220V Well Pump 40/60 PSI - Up to 3HP
Regular action normally closed pressure switch for controlling the on/off operation of a well pump. Use with a pressure tank for household, irrigation and any use that requires pressure operation. Use this pressure switch for any project using up to 3HP Single Phase 220V/230V motors, or up to 5HP Three Phase 220V/230V motors. Or, if using a 110/115V pump, up to 2HP single phase and up to 3HP three phase.
Customer can adjust the pressure differential to any popular setting such as 20/40, 30/50 or 40/60. Compatible with an RPS brand well pump, or any other brand of well pump on the market.
Factory Setting 40/60PSI
Max Rating 220PSI
Horsepower Rating for Single Phase Motors 2HP@115VAC - 3HP@230VAC
Horsepower Rating for Three Phase Motors 3HP@115VAC - 5HP@230VAC - 1HP@460/575VAC
Diaphragm Actuator
NEM 1 Rated
2 Pole
0.25 Inch NPSF Connection
UL Listed - CSA Certified
2-Pole
L 2.78" x W 3.76" x H 2.8"
$60.99
Pumptrol Pressure Switch for 110V or 220V Well Pump 40/60 PSI - Up to 3HP—
$60.99
More Images
Pumptrol Pressure Switch for 110V or 220V Well Pump 40/60 PSI - Up to 3HP
Regular action normally closed pressure switch for controlling the on/off operation of a well pump. Use with a pressure tank for household, irrigation and any use that requires pressure operation. Use this pressure switch for any project using up to 3HP Single Phase 220V/230V motors, or up to 5HP Three Phase 220V/230V motors. Or, if using a 110/115V pump, up to 2HP single phase and up to 3HP three phase.
Customer can adjust the pressure differential to any popular setting such as 20/40, 30/50 or 40/60. Compatible with an RPS brand well pump, or any other brand of well pump on the market.
Factory Setting 40/60PSI
Max Rating 220PSI
Horsepower Rating for Single Phase Motors 2HP@115VAC - 3HP@230VAC
Horsepower Rating for Three Phase Motors 3HP@115VAC - 5HP@230VAC - 1HP@460/575VAC
Diaphragm Actuator
NEM 1 Rated
2 Pole
0.25 Inch NPSF Connection
UL Listed - CSA Certified
2-Pole
L 2.78" x W 3.76" x H 2.8"
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Regular action normally closed pressure switch for controlling the on/off operation of a well pump. Use with a pressure tank for household, irrigation and any use that requires pressure operation. Use this pressure switch for any project using up to 3HP Single Phase 220V/230V motors, or up to 5HP Three Phase 220V/230V motors. Or, if using a 110/115V pump, up to 2HP single phase and up to 3HP three phase.
Customer can adjust the pressure differential to any popular setting such as 20/40, 30/50 or 40/60. Compatible with an RPS brand well pump, or any other brand of well pump on the market.
Factory Setting 40/60PSI
Max Rating 220PSI
Horsepower Rating for Single Phase Motors 2HP@115VAC - 3HP@230VAC
Horsepower Rating for Three Phase Motors 3HP@115VAC - 5HP@230VAC - 1HP@460/575VAC
Diaphragm Actuator
NEM 1 Rated
2 Pole
0.25 Inch NPSF Connection
UL Listed - CSA Certified
2-Pole
L 2.78" x W 3.76" x H 2.8"
