RPS 5HP 25RPS50, Up to 850ft Head, 13 to 31 GPM, Deep Well Submersible Pump End + 5HP 220V Motor + Starter Box

25RPS series pumps are designed for flow applications of 31 GPM or under. They can be self-installed or placed using a local installer. At 600 feet of head the 25RPS50 will pump 27 GPM! 1.5" FNPT Outlet.

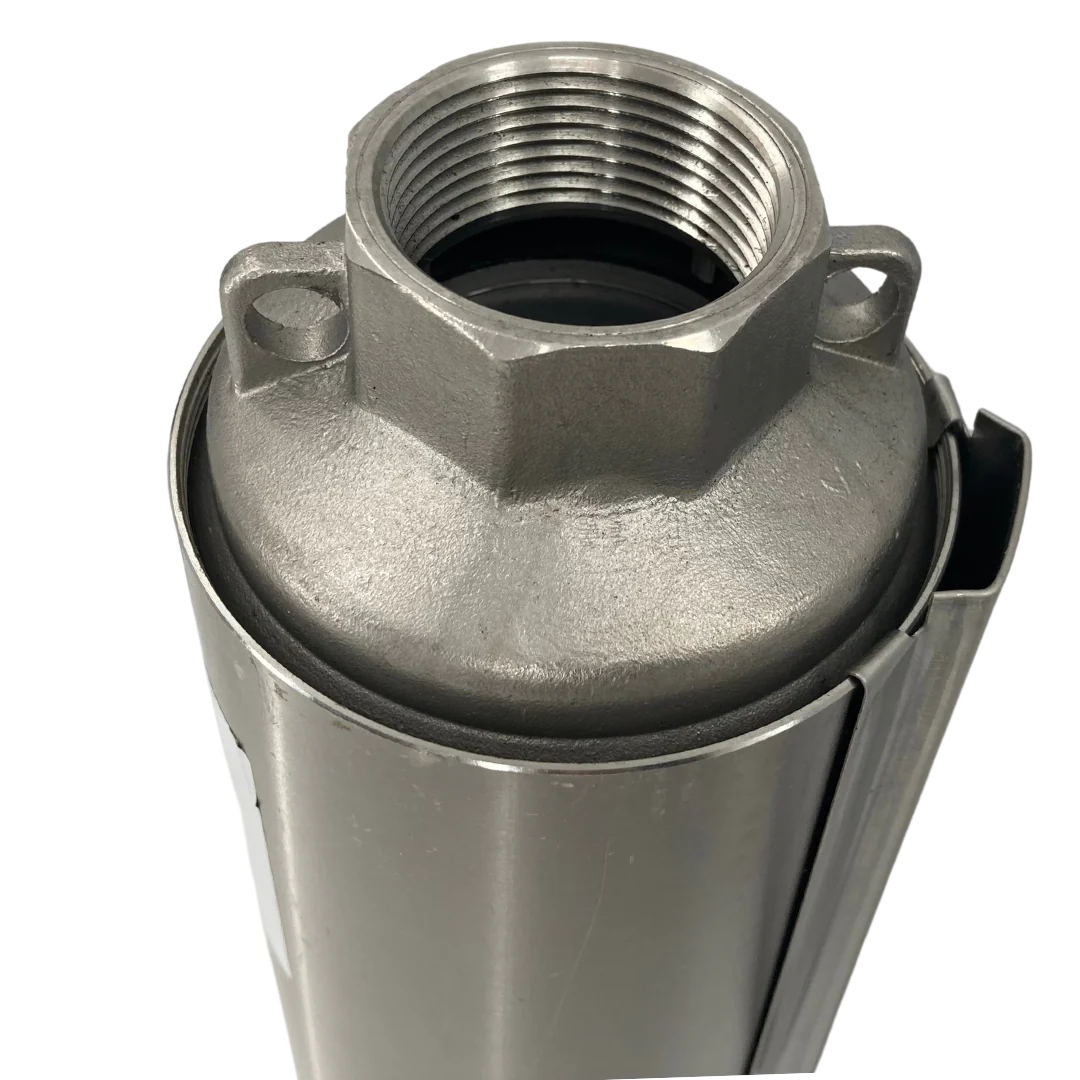

This RPS pump uses a hearty 3 Wire Single Phase 5HP Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.

RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.

✅  NSF Drinking Water and UL Compliant

Outlet size: 1-1/4"

Total Head	Gallons Per Minute (GPM)
No head	31
25 feet	31
50 feet	31
100 feet	31
125 feet	31
150 feet	31
175 feet	31
200 feet	31
250 feet	31
300 feet	31
350 feet	31
400 feet	31
450 feet	31
500 feet	29.5
550 feet	28
600 feet	27
650 feet	25
700 feet	23
750 feet	21
800 feet	18
850 feet	13
Above 850 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!

Need more water? Check out the other 25RPS Series Models!
