RPS 3HP 25RPS30, Up to 500ft Head, 18 to 31GPM, Deep Well Submersible Pump End + 3HP 220V Motor + Starter Box

25RPS series pumps are designed for flow applications of 31 GPM or under. They can be self-installed or placed using a local installer. At 350 feet of head the 25RPS30 will pump 27.5 GPM! 1.25" FNPT Outlet.

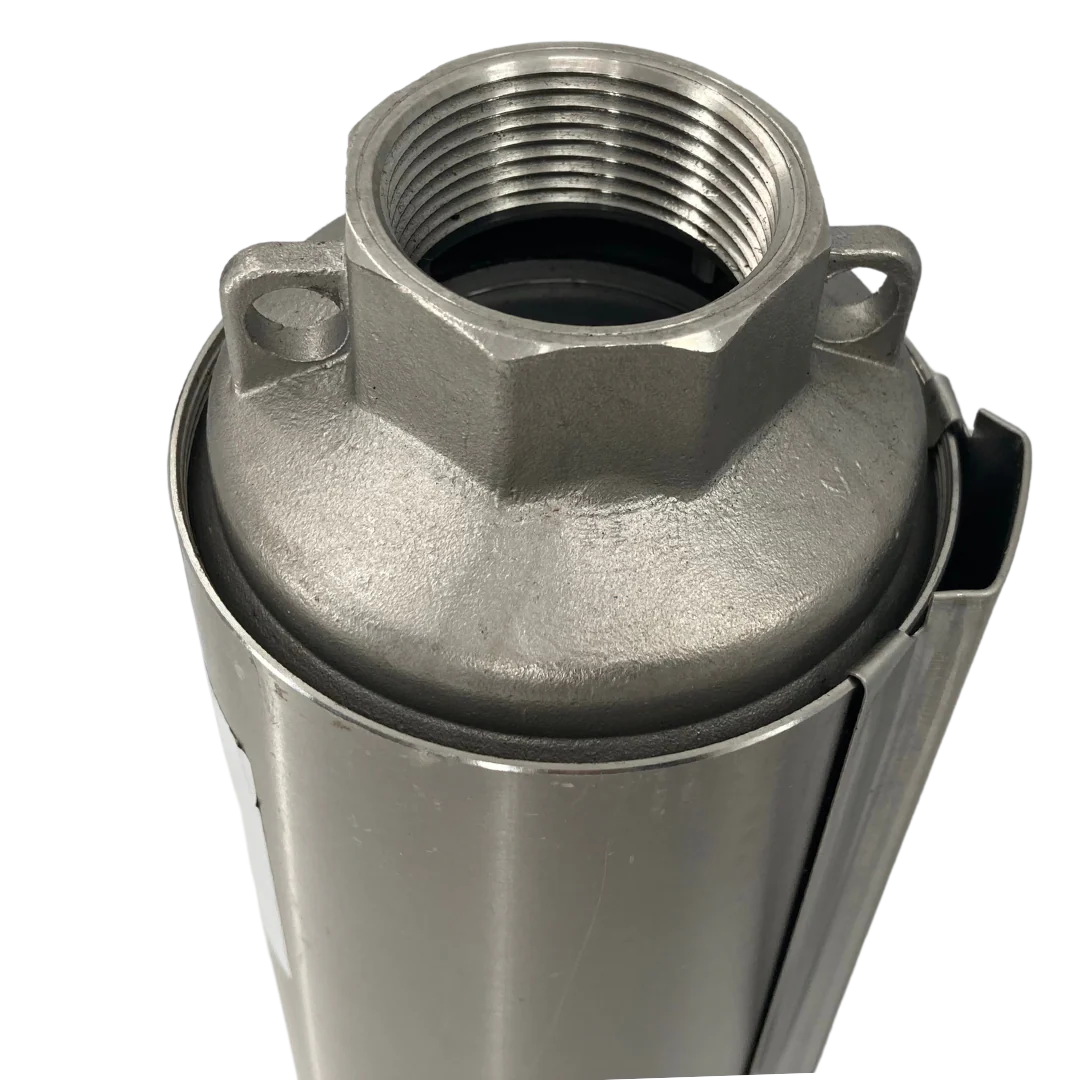

This RPS pump uses a hearty 3 Wire Single Phase 3HP Motor and 3.85″ diameter pump end. The Outlet includes a built in check valve, most people add on an additional external check valve as well. The most efficient brushless motors mean no replacement of carbon brushes and years of smooth, reliable performance. Impellers are made of a composite material resistant to abrasion and chemical damage. Encapsulated winding for superior short protection. The entire body is made of corrosion resistant 304 stainless steel, and compliant to all drinking water standards. Includes a starter box matched to the pump HP with starting capacitor.

✅  NSF Drinking Water and UL Compliant

Total Head	Gallons Per Minute (GPM)
No head	31
25 feet	31
50 feet	31
100 feet	31
125 feet	31
150 feet	31
175 feet	31
200 feet	31
250 feet	31
300 feet	29.5
350 feet	27.5
400 feet	25.5
450 feet	22
500 feet	18.5
Above 125 feet	Size Up for Optimal Performance



Using a pressure tank or pressure system? You'll need to add the depth of your well with the PSI in feet of head to get your "Total Head" number for sizing.

10 PSI = 23 feet of head

20 PSI = 46 feet of head

30 PSI = 70 feet of head

40 PSI = 90 feet of head

50 PSI = 115 feet of head

60 PSI = 140 feet of head

Example: 50 foot (well depth) + 90 feet of head (from a 40 PSI pressure tank) = 140 feet of total head. If your total head number exceeds this pumps ability range, size up to get a similar flow with higher head ability!
