25HP / 480V Three Phase / 3+G Wire / 6" RPS Pump Motor

 Rugged stainless steel RPS Water Pumps 25HP motor end. Three phase, 480V, 3 wire (3+G). Includes a 6ft pump cable pigtail.

Includes...

• 25HP Stainless Steel Submersible Pump Motor

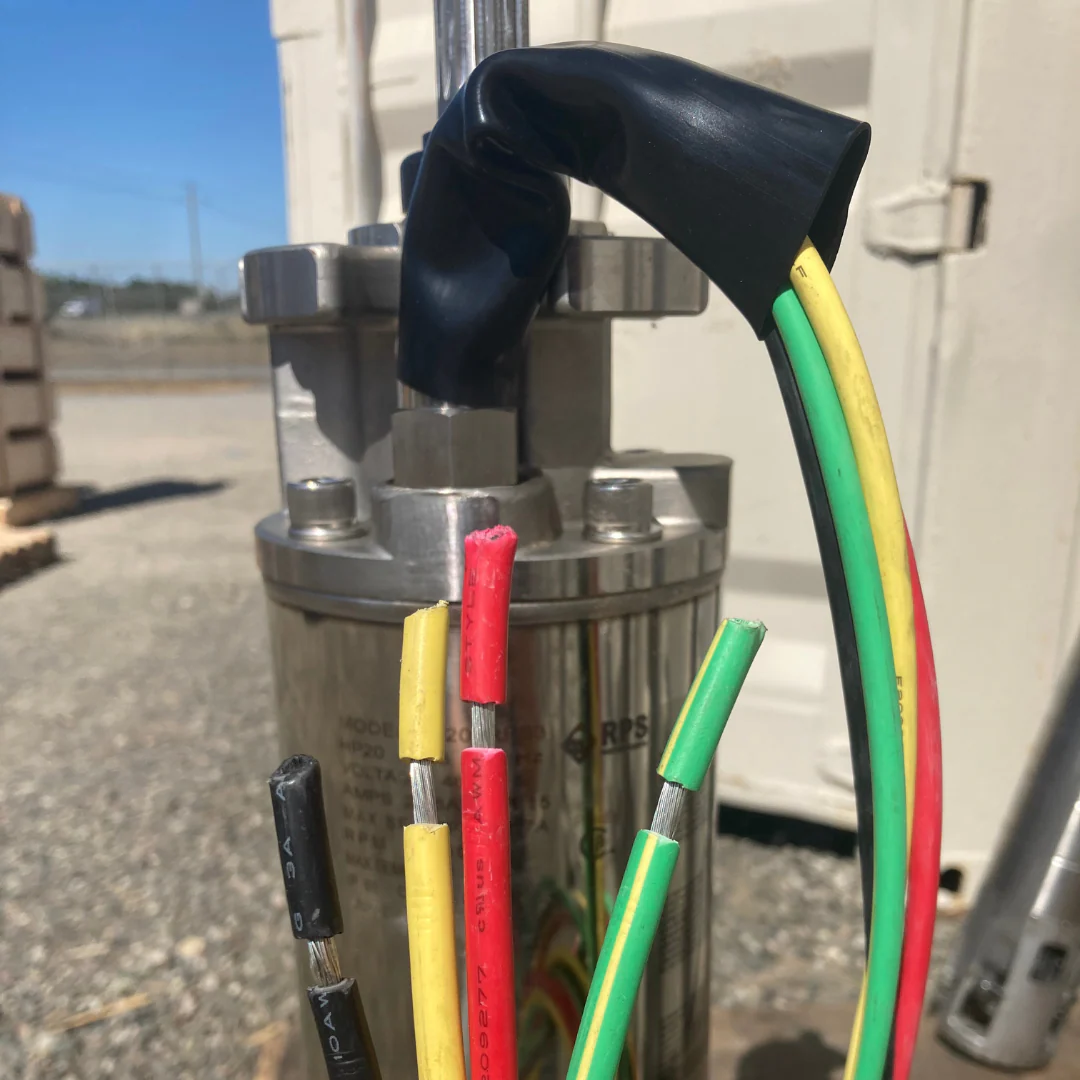

• 6FT Pigtail of 10Ga 3+G Stranded Pump Wire
• Back 40 Crystal Clear Splice Kit for connecting pigtail to more submersible pump cable w/ four crimps and four crystal clear shrink tubing. Wires are not pre-crimped. Special larger crimps are included to accommodate up to 8Ga wire.

Compatible with range of RPS Pump Ends including 230RPS100, 300RPS100 and 500RPS100.

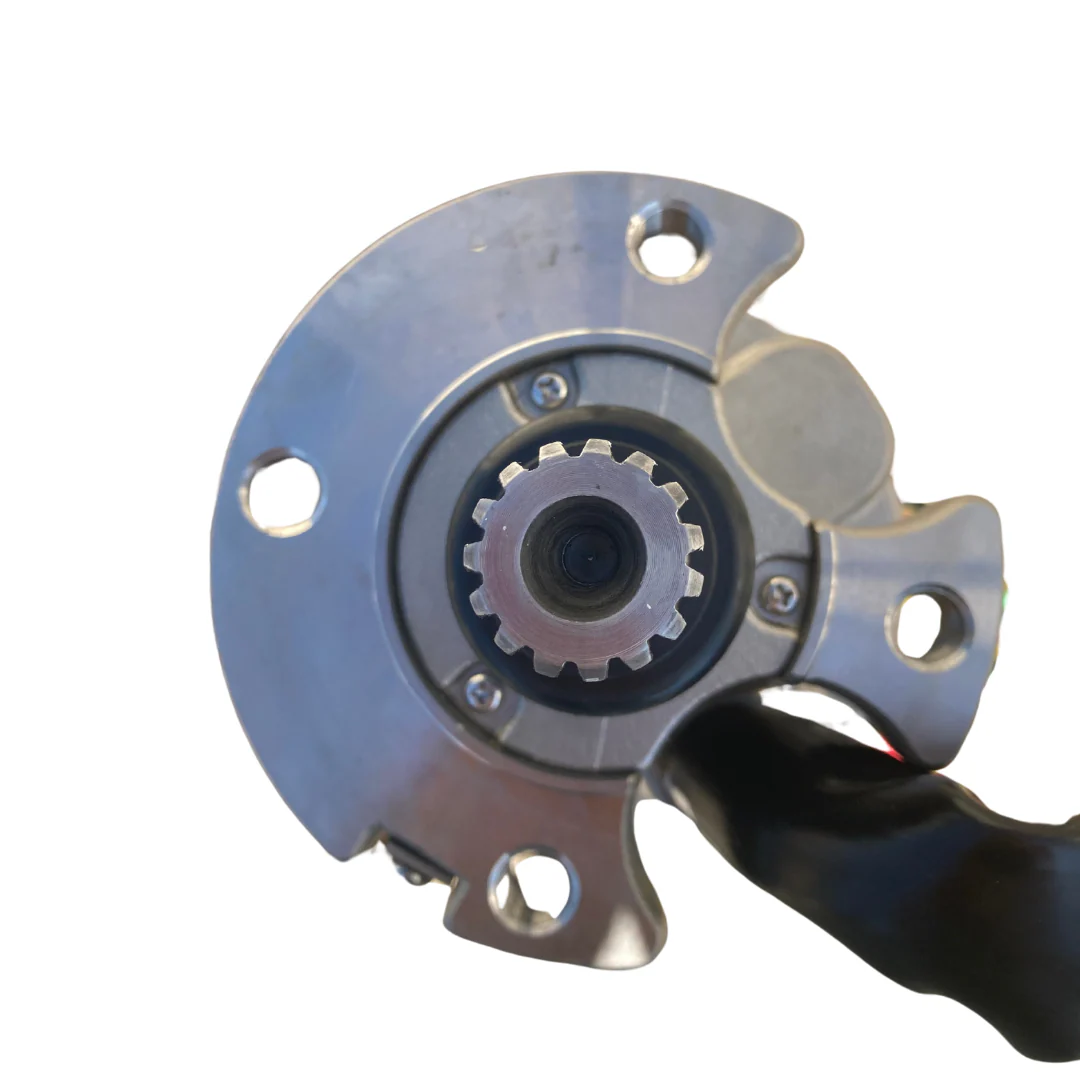

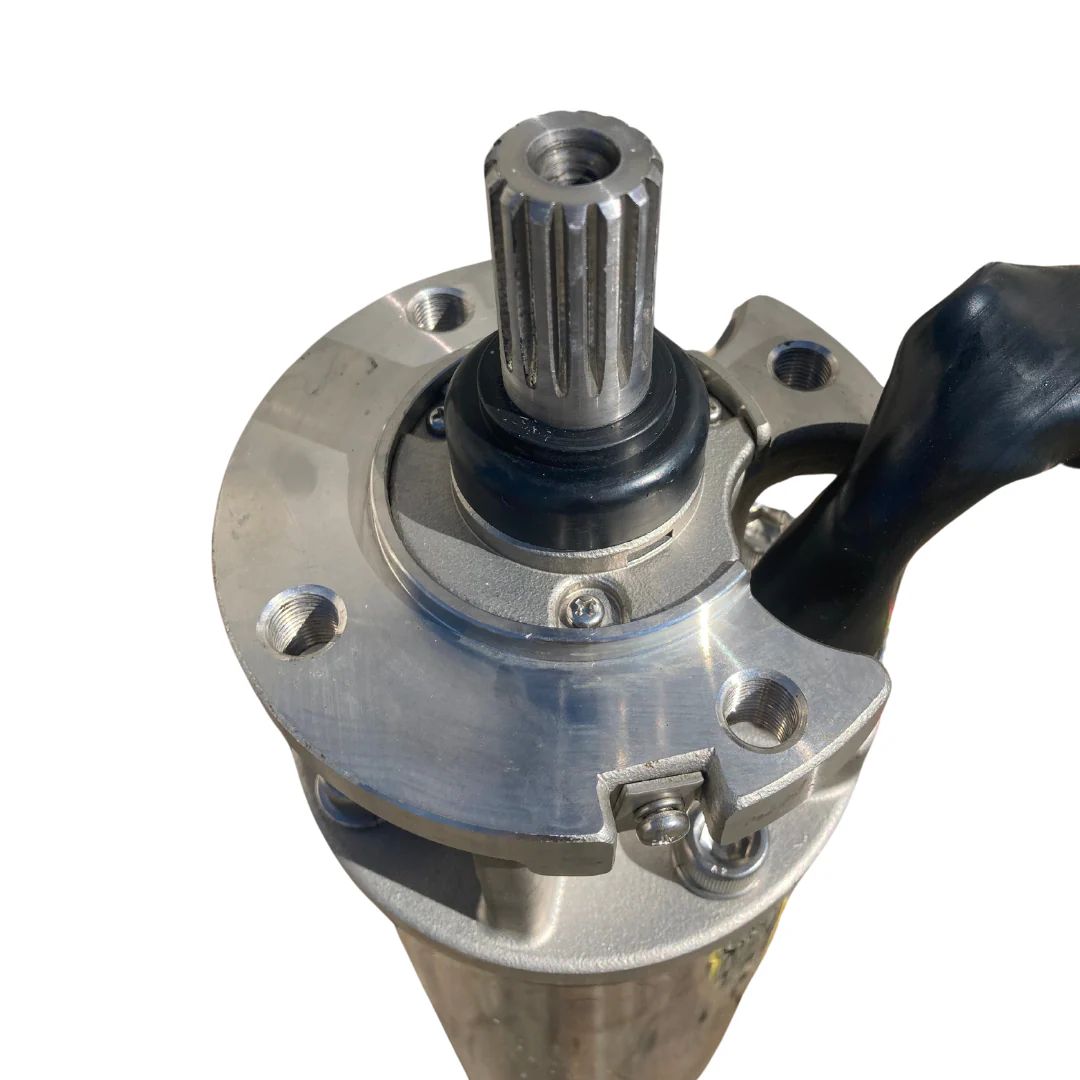

Also compatible with pump ends from other brands such as Goulds, Grundfos, Franklin Electric and AY MacDonald. Motor spline is manufactured to identical industry standard size, meaning motor is interchangeable with 6" motor ends from other brands, and is compatible with other 6" brand pump ends.

✅  NSF Drinking Water and UL Compliant

NOTE: This is a motor end ONLY, you will need to already have a pump end or instead purchase one of our RPS motor + pump end kits. Customer Supplied Magnetic Starter Box.
