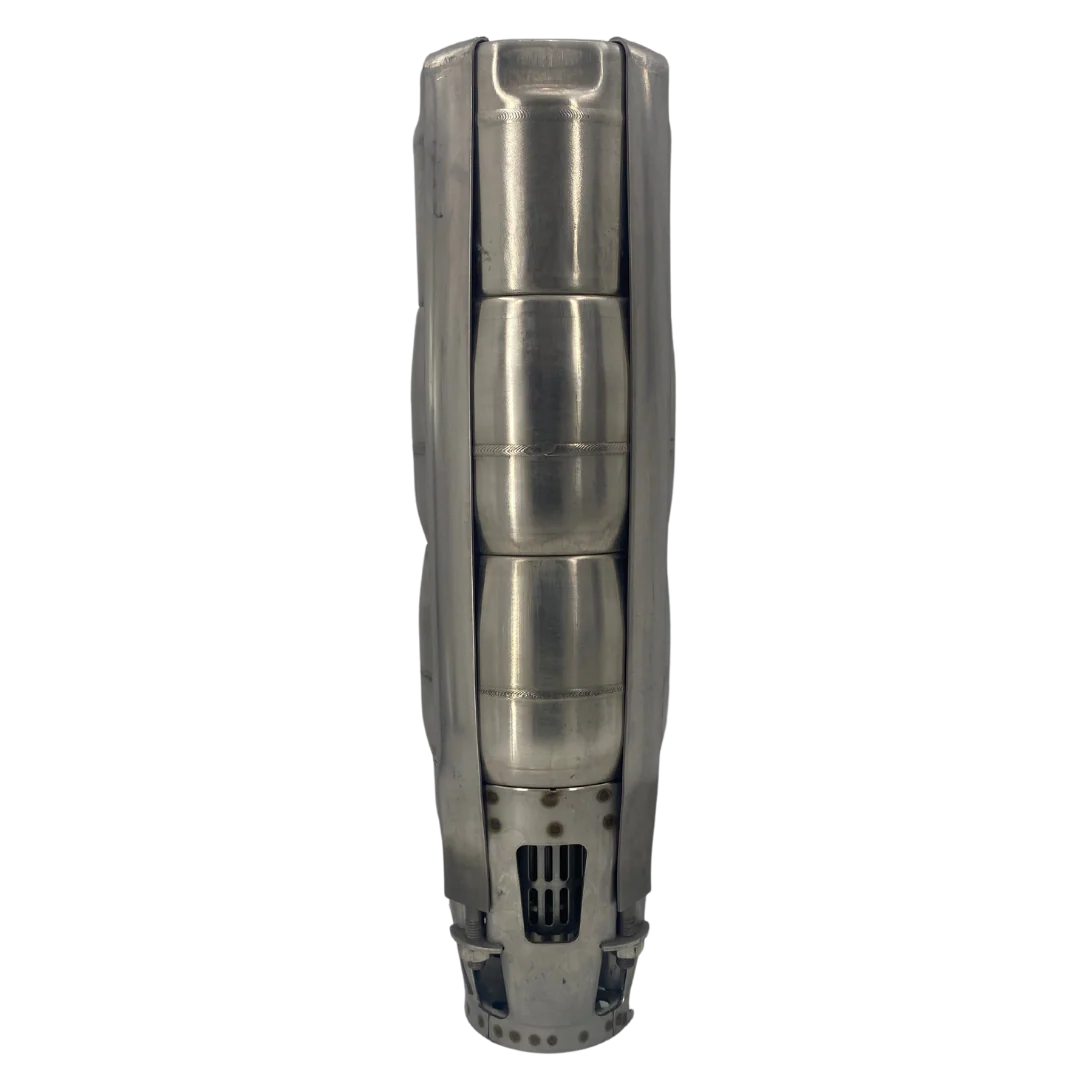

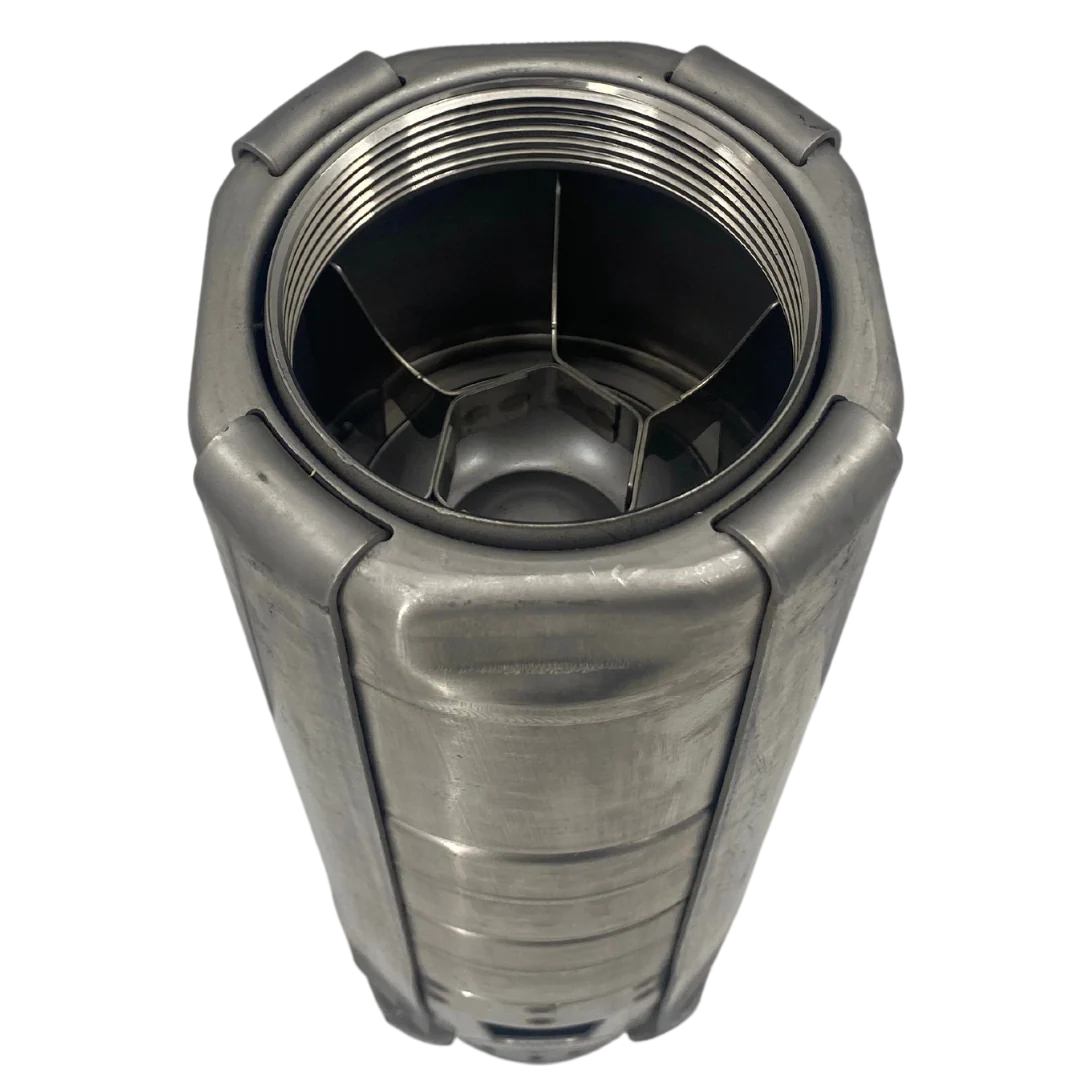

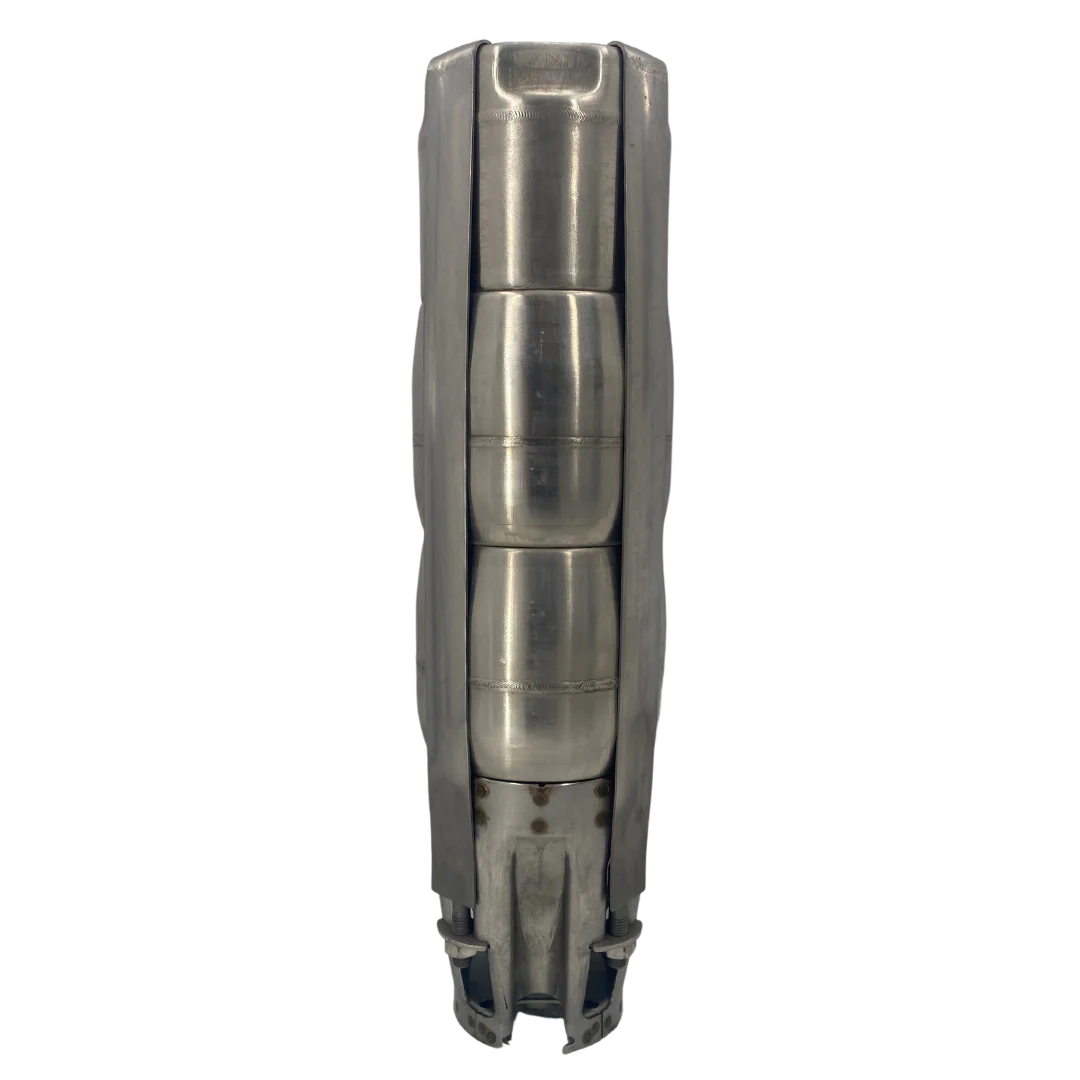

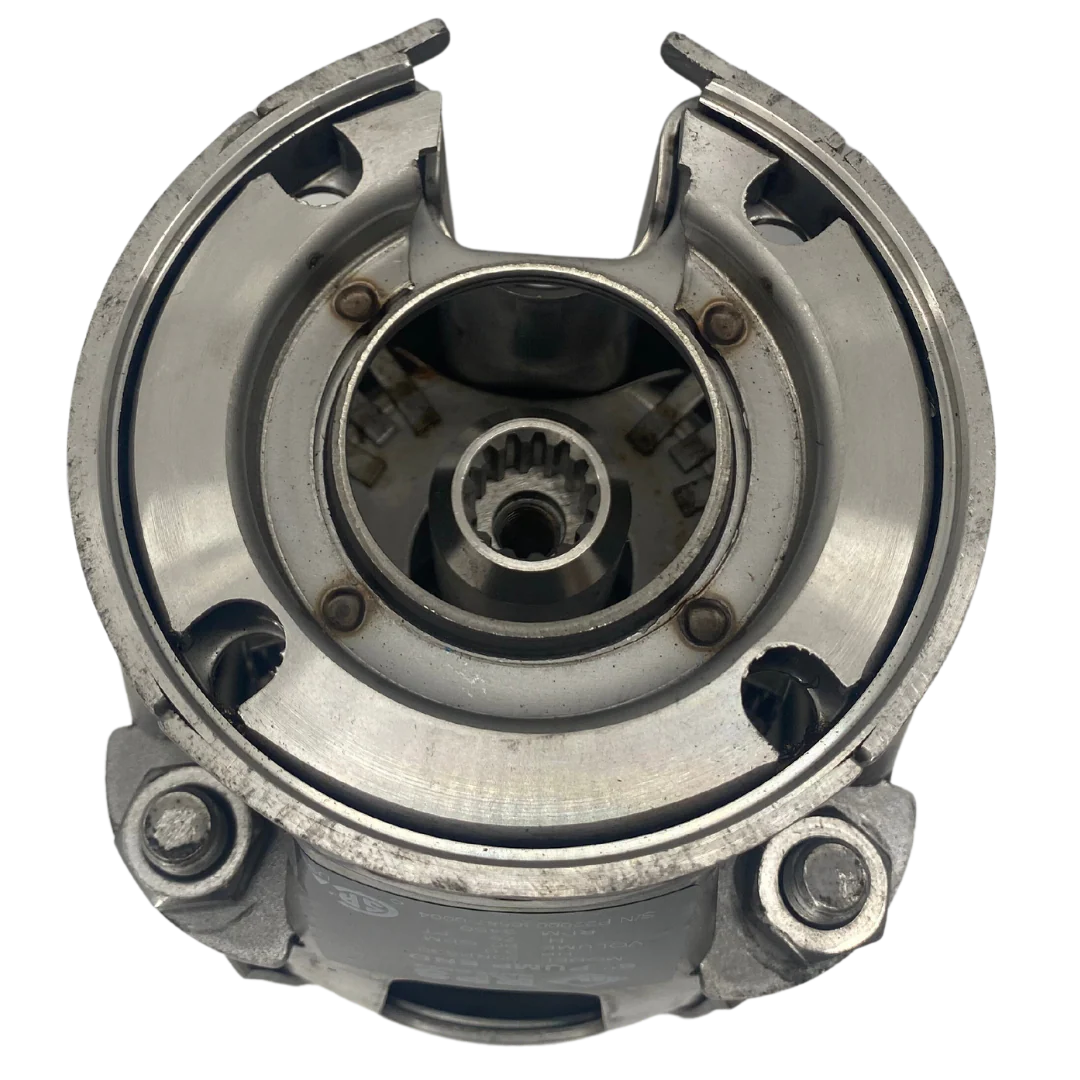

RPS Steel Pro Series 230RPS50-S 5" Submersible Pump End | Stainless Steel Impeller | 70-270 GPM

A 70-270GPM Pump End, made from hardy stainless steel construction. Paired with a 5HP motor end, shop RPS motor ends here.

Compatible with motors from brands such as Franklin Electric, Goulds, Grundfos, Pentair and Berkley.

RPS engineers recommend 5HP pumps use at least 10 gauge wire up for wire lengths up to 200 feet, 8 gauge up to 320 feet, 6 gauge up to 500 feet, 4 gauge up to 800 feet.

✅  NSF Drinking Water and UL Compliant

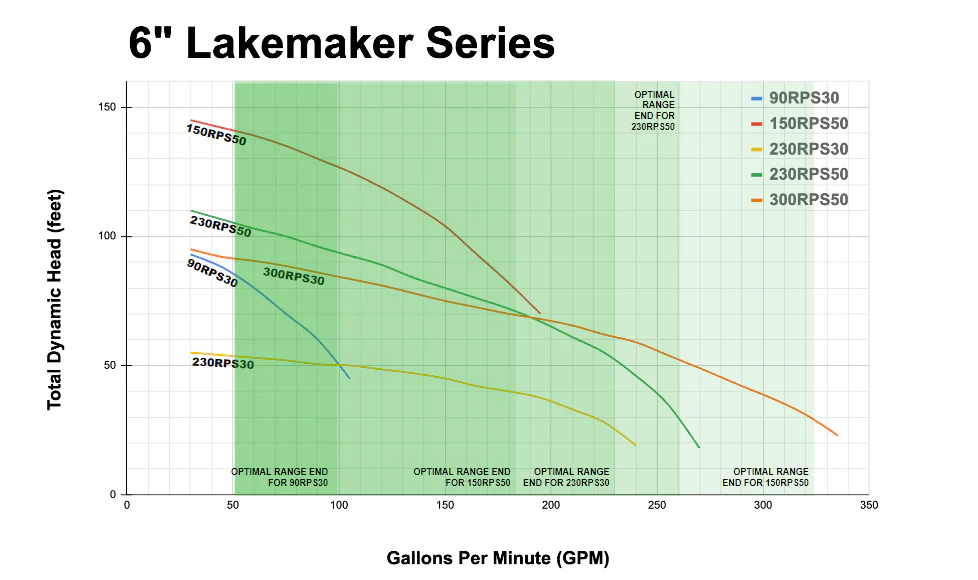

Total Head	Gallons Per Minute (GPM)
No head	270
10 feet	270
20 feet	270
30 feet	260
40 feet	250
50 feet	230
60 feet	210
70 feet	190
80 feet	150
90 feet	110
100 feet	70
Above 100 feet	Size Up for Optimal Performance
